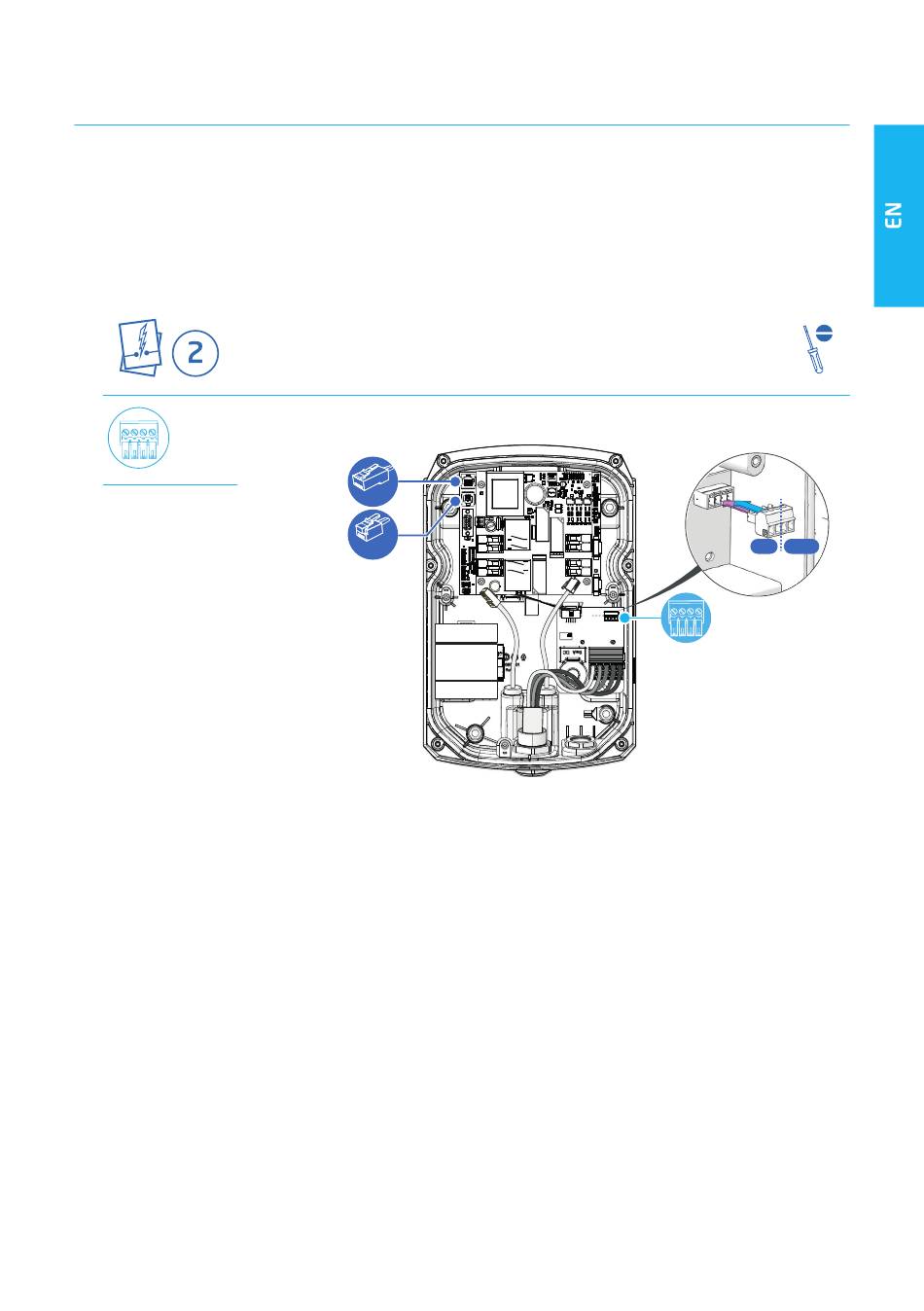

2. Connect the data cable(s) according to your product variant shown in the illustration.
a. Prepare the data cable for the smart meter: Only when connecting the (D)SMR 4.X or higher energy meter remove
the green and orange wire pairs of the data cables. Place all 4 wires firmly in the RJ-11 or RJ-45 connector. Make
sure that the insulation of the cable is also in the connector.
b. Prepare the data cable for the network: Place all 8 wires firmly in the RJ-45 connector. Make sure that the
insulation of the cable is also in the connector.
c. Prepare the data cable for the external smart meter: Place the 2 wires firmly in the provided RS-485 connector.
Make sure that the insulation of the cable is also in the connector.
1x
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
3. INSTALLING AND CONNECTING
RJ-45
RJ-11
TIC RS485
