3. INSTALLING AND CONNECTING
3.

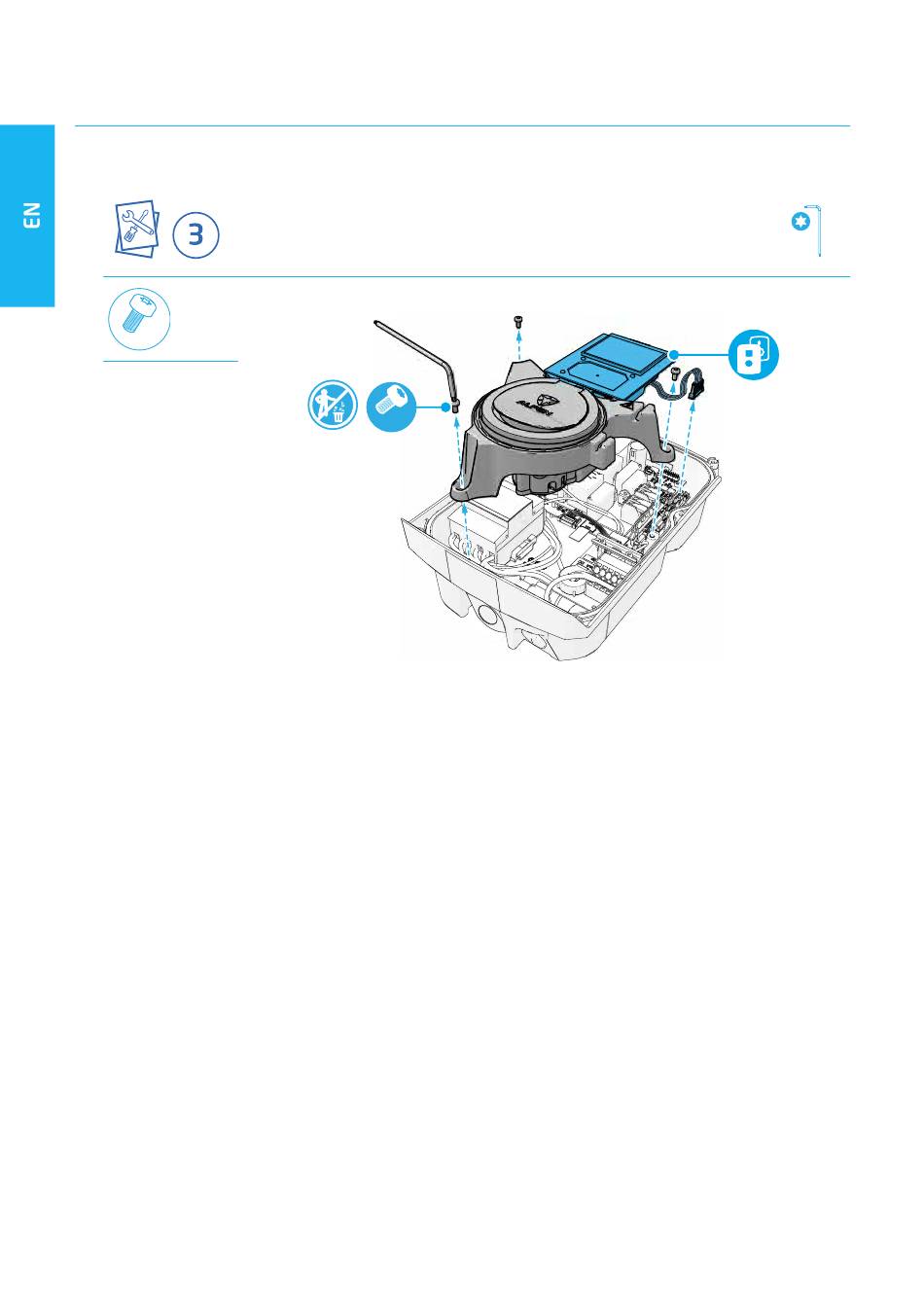

Unscrew the three Torx T20 screws (will be used again) of the transparent sub-frame and remove the sub-frame from
charging station.
T20
M4x12
16
1x
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
/
" T20
1
4
