alfen Eve Single S-line Installation Manual Addendum
Suspend charging mode
Hide thumbs
Also See for Eve Single S-line:
- Quick installation manual (10 pages) ,
- Installation manual (38 pages) ,
- Manual (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for alfen Eve Single S-line
Summary of Contents for alfen Eve Single S-line
- Page 1 – Suspend Charging mode I nstallation guide Addendum Eve Single S-line Eve Single Pro-line Eve Double Pro-line...

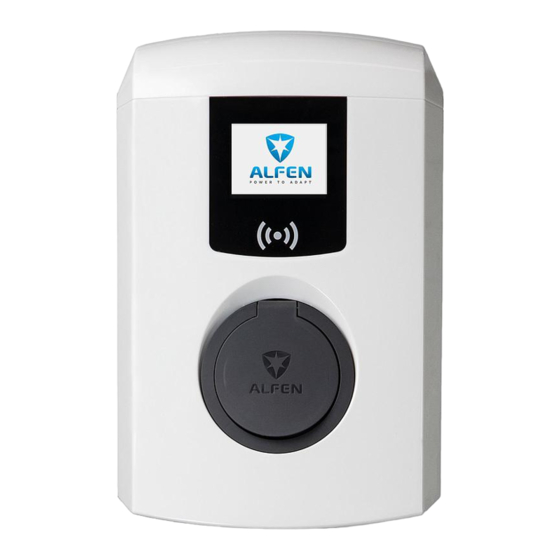

- Page 2 EVE SINGLE S-LINE EVE SINGLE S-LINE with charging cable with socket EVE SINGLE PRO-LINE EVE SINGLE PRO-LINE with charging cable with socket EVE DOUBLE PRO-LINE...
- Page 3 Background information on – the Suspend Charging mode S ection 14a of the Energiewirtschaftsgesetz (German energy law) specifies the possibility for consumers to use electricity at reduced standing charges if it complies with certain conditions. The option only applies to customers who have a controllable device containing an independent measuring module (for instance an EV charging station) connected to their domestic energy connection.
-
Page 4: Table Of Contents
TABLE OF CONTENT Safety and usage instructions Purpose and intended audience General safety Copyright Registered trademarks Disclaimer of liability Addendum to the manual and installation guide Functionality Functionality Assembly and connecting Hardware setup Installation Requirements 4.2 Installation and configuration procedure Configuration 5.1 Configuration Enabling Suspend Charging mode using a central management system Enabling suspend Charging mode via... -
Page 5: Safety And Usage Instructions
Alfen B.V. reserve the right to revise this document from assess the risks associated with using this product. time to time. Alfen ICU B.V. shall not be liable in any way, for any kind 1.6 Addendum to the manual and installation guide... -
Page 6: Functionality
2. FUNCTIONALITY 2.1 Functionality NOTICE! Alfen has developed a solution to suspend a running charging session on request of the grid operator. This functionality is developed for all Eve (Single and Suspending the charging session is done in a controlled Double) charging stations and available from software way, according to the Mode 3 protocol. -
Page 7: Assembly And Connecting
3. ASSEMBLY AND CONNECTING 3.1 Hardware setup An RJ11 (or RJ12) data cable is used to send the S1 contact signals to the charging station. The data cables of the potential free contact should be connected to the RJ11/RJ12 connector on the controller board of the charging station. EVE SINGLE S-LINE EVE SINGLE PRO-LINE RJ11 RJ12 RJ11 RJ12 Image 2: Location RJ11/RJ12 connector CTL910 controller board Image 4: Location RJ11/RJ12 connector CTL910 controller board EVE DOUBLE PRO-LINE NOTICE! Refer to the user manual and quick installation guide on how to remove and install the front cover of the charging station. -
Page 8: Installation
4. INSTALLATION 4.1 Requirements Connecting the potential free contact with the charging station controller board should be done under the following strict conditions: No other connection is allowed. The two signal cables can only be connected to a potential free contact. Image 5: Overview of the energy meter and charging station The charging station should be the only device connected to the potential free contact Image 6: Overview of the energy meter and charging station... -
Page 9: Installation And Configuration Procedure
4. INSTALLATION 4.2 Installation and configuration procedure NOTICE! Before installing the system read the requirements as described in the paragraph 'Requirements' . Verify the type of contact in the energy meter of the grid operator (NO or NC contact). Adjust the charging station configuration to Suspend Charging mode before continuing the installation. Check the configuration chapter how to configure the charging station. NOTICE! Selecting the right setting should be done according to the configuration of the contact in the energy meter of the grid operator. Station response Normally Closed (NC) contact Normally Open (NO) contact Allow charging Suspend when closed Suspend when opened Suspend charging... -
Page 10: Configuration
5. CONFIGURATION 5.1 Configuration Configuration of the Suspend Charging mode can be done via the back office (e.g. ICU Connect) or via the Service Installer application. To configure the station for Suspend Charging Mode, the following configuration key is available: Configuration key Meaning Values Direct external suspend Configure for which DSMR P1 signal purpose the RJ11/RJ12 Suspend when closed port is used. Suspend when open The name of the configuration key to set the Suspend Charging mode differs per software version: Configuration key Firmware version Direct external signal 4.2.0 and higher RJ11- Mode 3.4.1-3.4.3 (Not available) 3.4.0 and earlier NOTICE! -
Page 11: Enabling Suspend Charging Mode Using
Go to the Load balancing tab In this paragraph the steps to configure Suspend Charging Go to Active Load Balancing Deactivate the box at Active Load Balancing. Mode are described using Alfen ICU Connect as an example. The configuration parameters are also made available in The functionality is now disabled. third party central management systems. In case a third... - Page 12 Contact Contact – – Alfen ICU B.V. Alfen ICU B.V. Hefbrugweg 28 Hefbrugweg 28 1332 AP Almere 1332 AP Almere The Netherlands The Netherlands P.O. Box 1042 P.O. box 1042 1300 BA Almere 1300 BA Almere The Netherlands The Netherlands Tel.
