3. INSTALLING AND CONNECTING
7.

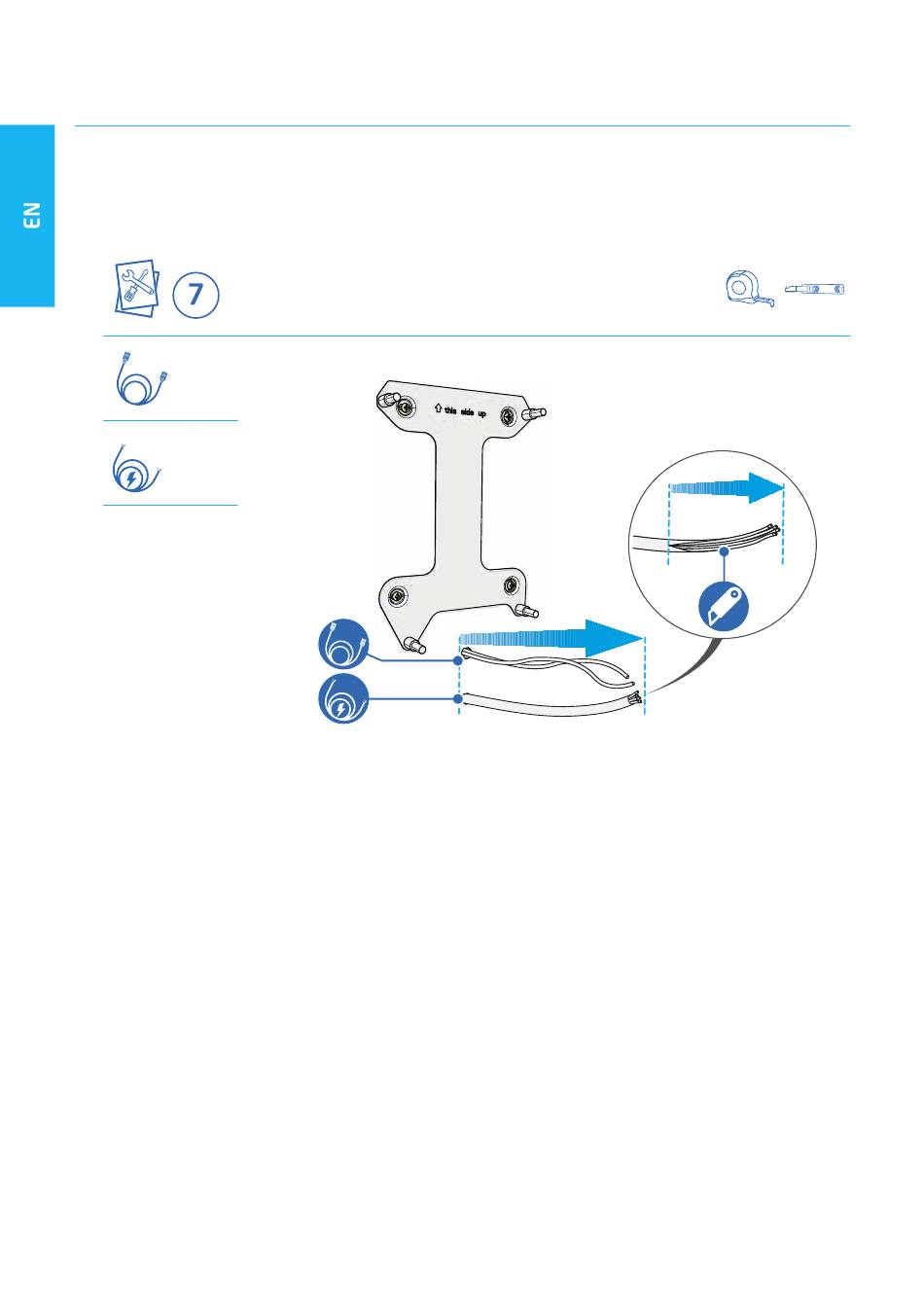

Determine the power supply cable length by holding the charging station in its installation position.
a.
Determine the power supply cable length by holding the charging station in its installation position.
b.
Cut the power cable to the required length.
c.
Feed the power cable and data cable(s) approx. 500 mm through the holes.
d.
Skin the power cable on a length of approx. 250 mm.
20
1x,
2x
1x
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
250 mm
500 mm
