alfen Eve Single Pro-line User Manual
Ev charging stations
Hide thumbs
Also See for Eve Single Pro-line:
- Installation manual (38 pages) ,
- Manual (36 pages) ,
- Installation manual addendum (12 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for alfen Eve Single Pro-line
Summary of Contents for alfen Eve Single Pro-line
- Page 1 Eve Single Pro-line & S-line EV Charging Stations User Manual...
-
Page 3: Table Of Contents
Fixed cable model: Stop charging with Plug&Charge Maintenance Error codes and troubleshooting Waste electrical and electronic equipment (WEEE) Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 5: About This Manual
All rights, including rights created by a patent, grant or registration of a utility model or a design, are reserved. Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 6: Service
Optionally you can find support for all our products on https://knowledge.alfen.com. Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 7: Safety And Usage Instructions
Operating temperature -25..+55 °C with using this product. Relative atmospheric humidity 5 - 95 % Electrical safety class Class I Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... - Page 8 The stated charging performance is solely applicable to the charging station, actual performance is dependent on the vehicle and the grid connection. Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU...
-
Page 9: Product Overview

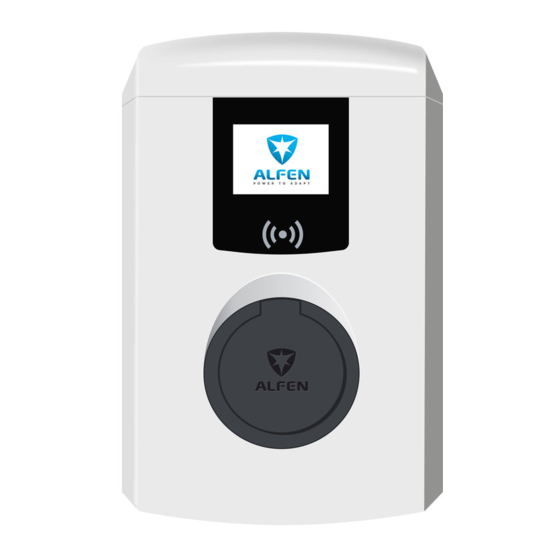

Pro-line, model with socket S-line, model with fixed charging cable Pro-line, model with fixed charging cable Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 10: Bottom View
Technical specifications (such as the number of phases, maximum charging current and voltage) Active charging session Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 11: Display Of The Eve Single Pro-Line
If an error occurs, an error code and instruction will also be shown in this field. Figure 3.3: Eve Single Pro-line Description Display Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 12: Status Indicator Symbols
For every charge card held in front of the charging station, a sound signal will be given. Follow the on-screen instructions to manage access control: Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 13: Removing The Master Key
This might, however, incur costs. Therefore, always keep the Master key in a safe location. Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 14: Operation
Remove the charging cable from the socket Remove the charging cable from the car Leave the charging place Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 15: Socket Model: Start Charging With Plug&Charge
Remove the charging cable from the car Remove the charging cable from the socket Leave the charging place Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 16: Fixed Cable Model: Start Charging With Charge Card
Scan the charge card on the charging stations RFID-interface Plug the charging cable into the charging station Leave the charging place Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 17: Fixed Cable Model: Start Charging With Plug&Charge
Remove the charging cable from the car Plug the charging cable into the charging station Leave the charging place Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 18: Maintenance
The housing of the charging station can be damaged. Do not use any aggressive cleaning agents, high-pressure cleaner, scouring pads or similar. Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... -
Page 19: Error Codes And Troubleshooting
• Recommended earth resistance of the lation or call for sup- ble. installation < 100 Ohm. port. Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... - Page 20 • Otherwise contact the service department will resume shortly. car. of your charge point supplier. Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU...
- Page 21 All cables: No issue with other charge point. 61851 standard. Contact the service department of your charge point supplier. Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU...
- Page 22 All cables: No issue with other charge point. Contact the service department of your charge point supplier. Not displayed. Not displayed. Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU...
-
Page 23: Waste Electrical And Electronic Equipment (Weee)
recycling center or other collection points. Alfen ICU B.V. | User Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130235-ICU... - Page 24 Contact Alfen ICU B.V. Hefbrugweg 28 1332 AP Almere The Netherlands P.O. box 1042 1300 BA Almere The Netherlands Alfen Knowledge Base: knowledge.alfen.com Alfen Service Portal: aftersales.alfen.com Tel. Service: +31 (0)36 54 93 402 Website: alfen.com Art. no.: 203130235-ICU ...
