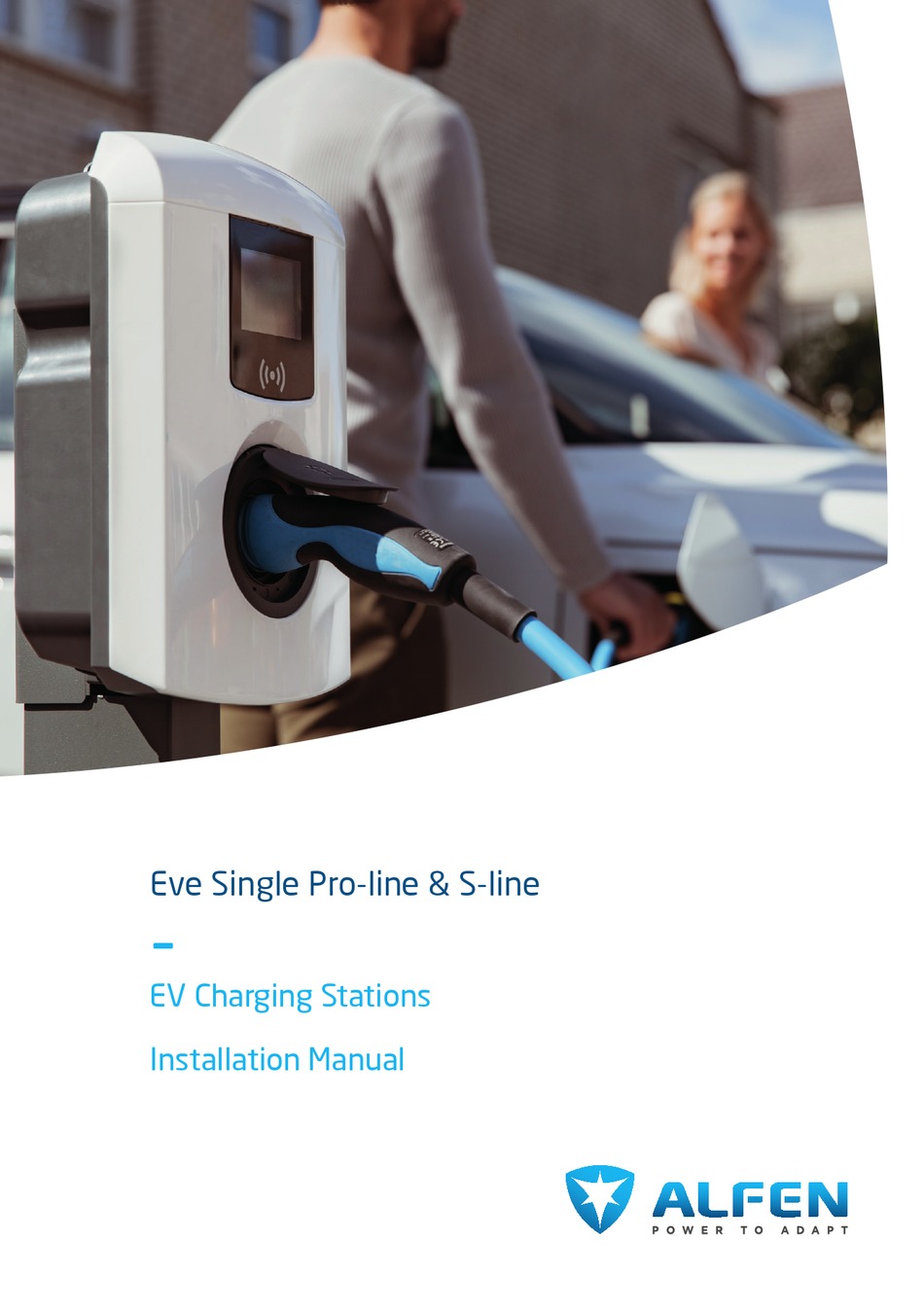

Eve Single Pro-line & S-line
-
EV Charging Stations
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eve Single Pro-line and is the answer not in the manual?

Questions and answers

Related Manuals for alfen Eve Single Pro-line

Summary of Contents for alfen Eve Single Pro-line

  • Page 1   Eve Single Pro-line & S-line EV Charging Stations Installation Manual...

  • Page 3: Table Of Contents

    5.3.3 Back office management systems Disposal Decommissioning and returning Waste electrical and electronic equipment   (WEEE) Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 5: Safety And Usage Instructions

    Follow this manual to install and commission the charging station correctly. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 6: Software And Complementary Documentation

    Under the following links you can obtain detailed information regarding the Eve Single S-line and Pro-line charging stations. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 7: Copyright

    The stated charging performance is solely applicable to the charging station, actual performance is dependent on the vehicle and the grid connection. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 8: About This Document

    Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 9 Alfen delivery scope   Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 10: Product Overview

    M32x1.5 Spacing ring for cable Pro-line Optional cable gland M32-M25 gland M25x1.5 Torx bolt M4x8 mm M4x12 Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 11: Legend Product Overview Exterior

    Counter nut 2.2 Legend product overview exterior The information given in this table refers to illustration B. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 12: Legend Product Overview Interior

    Screws for wall-mount frame with earth con- RS-485 connector nection   SIM cardholder RJ-45 connector RJ-11 connector Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 13: Installing And Connecting

    The cable trajectory from the main distributor to the Eve Single must be secured against short-circuiting with Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 14: Preparation Prior To Installation

    3.7 kW/11 kW charging: minimum 20 A Voltmeter or digital multimeter • 7.4 kW/22 kW charging: 40 A Nominal input voltage: Phillips screwdriver Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 15: Installation Procedure Prerequisites

    The pole is an accessory and the installation RJ-11 instruction is provided within its scope of delivery. RJ-45 connector RJ-45 Crimping tool Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 16: Wall-Mounting The Charging Station

    Use a pencil and a spirit level to mark the top and bottom of the charging station. 300 mm 300 mm 300 mm Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 17 NOTE Do not lay down the charging station on a rough surface. Tip: Use the packaging. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 18 Unscrew the three Torx T20 screws (will be used again) of the transparent sub-frame and remove the sub-frame from charging station. M4x12 ” T20 Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 19 Mark the drill holes, remove the wall-mount frame. Drill the marked holes with a 8x50 mm drill. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 20 Install the wall-mount frame. Use the 5x50 mm wall plugs and screws provided. 5x50 mm 8 mm 5x50 Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 21 Use a pencil and a right angle square tool to mark the location for the holes for the wiring: data cable(s) 50 mm below wall-mount, power cable 100 mm below wall-mount. Drill the holes. 50 mm 50 mm Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 22 Feed the power cable and data cable(s) approx. 500 mm through the holes. Skin the power cable on a length of approx. 250 mm. 250 mm 500 mm Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 23 Unscrew the cable gland and screw it to the bottom of the charging station Cut the data cable grommet to data cable diameter size. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 24 Make sure to seal the cable entry carefully with the appropriate grommet. There must be no gaps. RJ-45 RJ-11 RJ-45 RJ-11 º Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 25 Use M8 washer and nut. Mechanical installation procedure is finished. Charging station is ready for electrical installation. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 26: Electrical Installation Procedure

    Connect the power cable to the terminal block according to your product variant 3-phase or single phase shown in the illustration. L1 L2 L3 Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 27 Make sure that the insulation of the cable is also in the connector. RJ-45 RS485 RJ-11 Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 28: Additional Installation Procedure For Model With Fixed Charging Cable

    3.7.1 Additional installation procedure for model with fixed charging cable Feed the fixed charging cable through the cable gland. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 29 Connect the control power (CP) connector Connect the Protective Earth cable (PE) to the terminal. L1 L2 L3 Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 30: Finishing The Installation

    If applicable, reattach the transparent sub-frame Models with display: connect the display connector M4x12 M4x12 Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 31 Screw the front cover back onto the charging station with the Torx T20 wrench. Use all six screws for this. M4x12 M4x12 Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 32 3. INSTALLING AND CONNECTING The electrical installation is finished. The charging station is ready to be commissioned.   Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 33: Commissioning

    4.3 Testing the socket(s) Put the test charging cable or charging cable into the socket. Press firmly. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 34: Connectivity

    Connect the UTP (Ethernet) cable to your router or configuration process. directly to the charging station. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 35: Back Office Management Systems

    If you do not have a SIM card, please contact your backoffice provider. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...

  • Page 36: Disposal

      recycling center or other collection points. Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU...
  • Page 37 Contact Alfen ICU B.V. Hefbrugweg 28 1332 AP Almere The Netherlands P.O. box 1042 1300 BA Almere The Netherlands Alfen Knowledge Base: knowledge.alfen.com Alfen Service Portal: aftersales.alfen.com Tel. Service: +31 (0)36 54 93 402 Website: alfen.com Art. no.: 203130236-ICU  ...
