4.

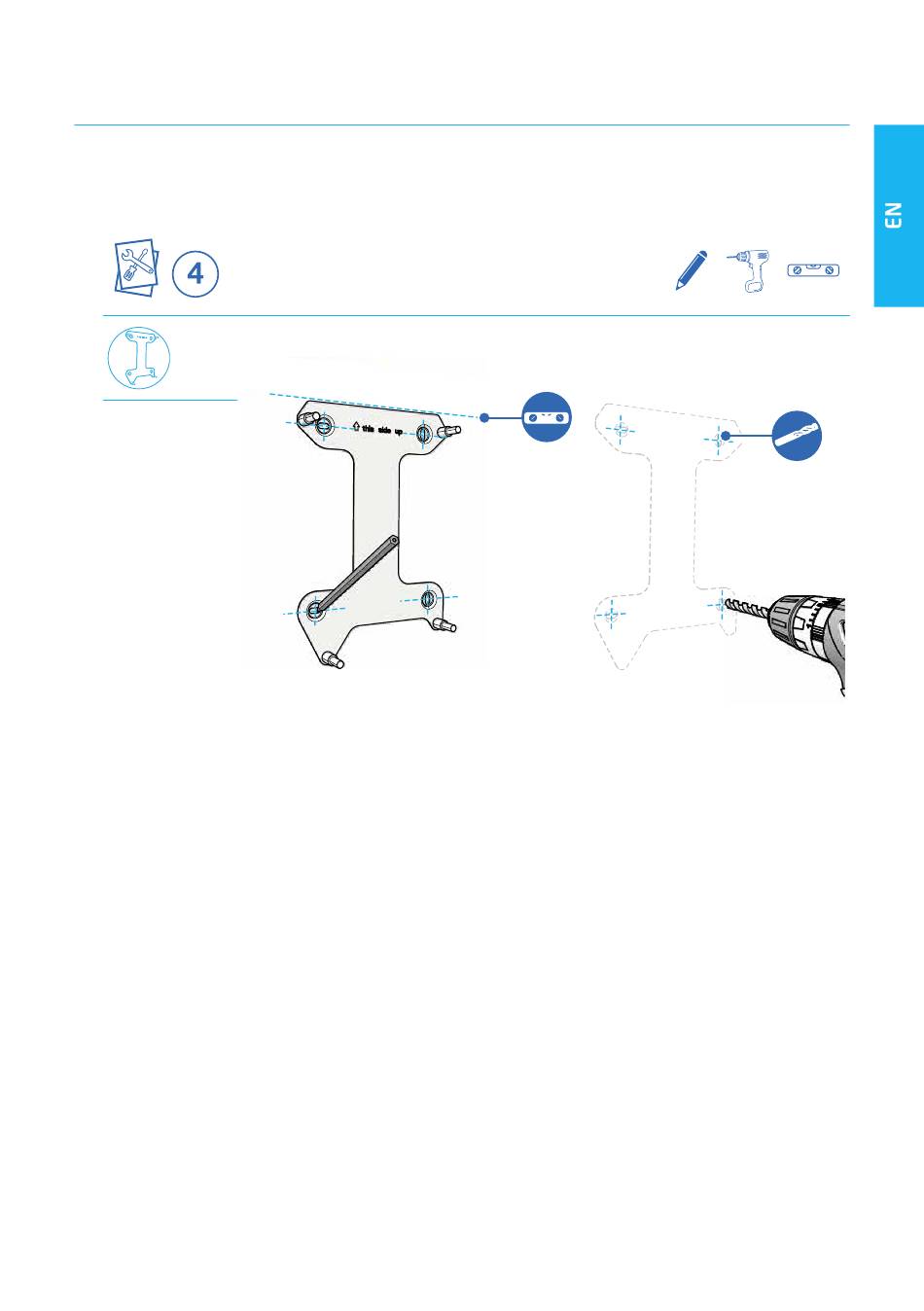

Use the wall-mount frame as a drilling template.
a.
Use a spirit level to position the wall-mount frame.
b.
Mark the drill holes, remove the wall-mount frame.
c.
Drill the marked holes with a 8x50 mm drill.
1x
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
