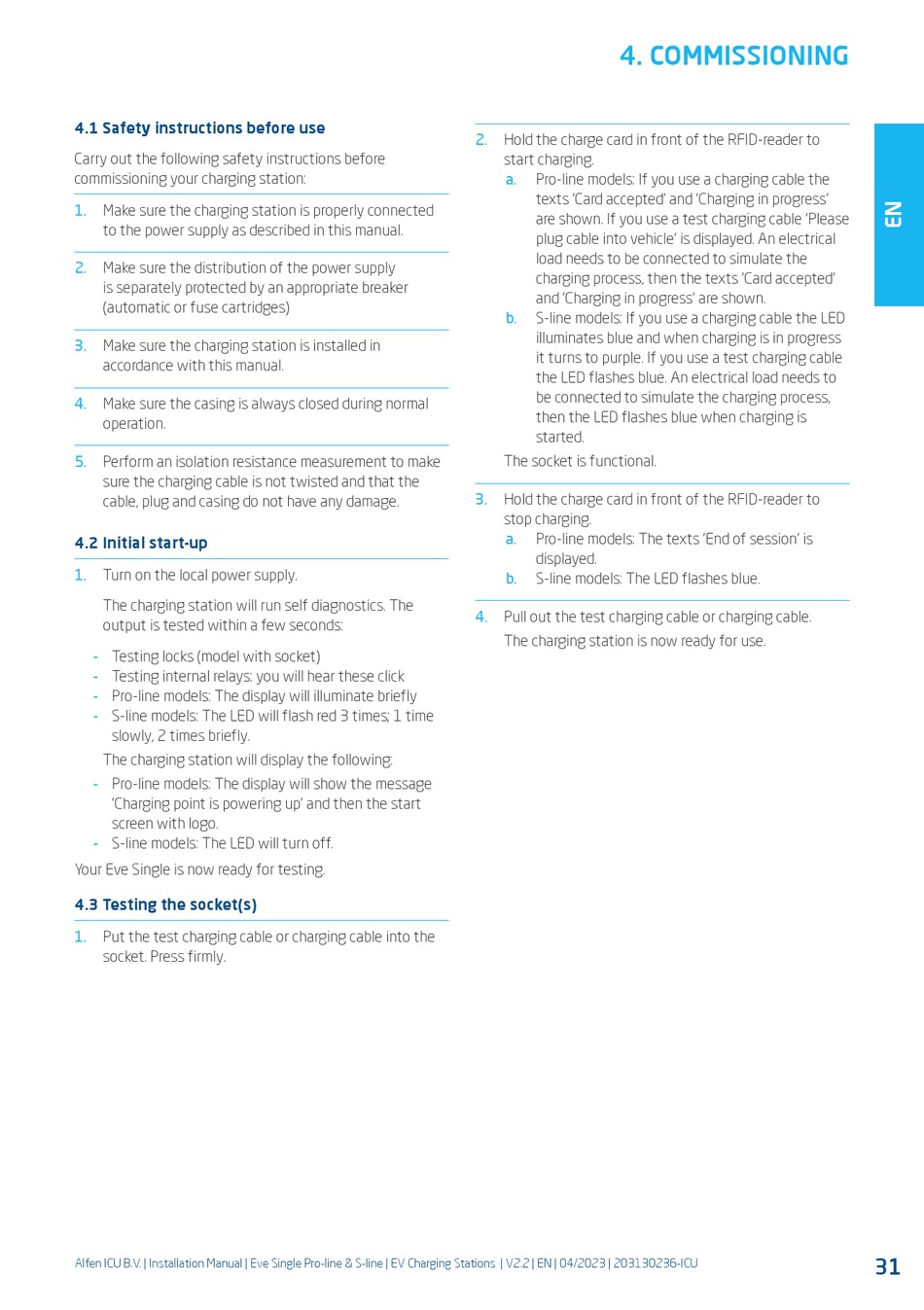

4.1 Safety instructions before use

Carry out the following safety instructions before
commissioning your charging station:
1. Make sure the charging station is properly connected
to the power supply as described in this manual.
2. Make sure the distribution of the power supply
is separately protected by an appropriate breaker
(automatic or fuse cartridges)
3. Make sure the charging station is installed in
accordance with this manual.
4. Make sure the casing is always closed during normal
operation.
5. Perform an isolation resistance measurement to make
sure the charging cable is not twisted and that the
cable, plug and casing do not have any damage.

4.2 Initial start-up

1. Turn on the local power supply.
The charging station will run self diagnostics. The
output is tested within a few seconds:
- Testing locks (model with socket)
- Testing internal relays: you will hear these click
- Pro-line models: The display will illuminate briefly
- S-line models: The LED will flash red 3 times; 1 time
slowly, 2 times briefly.
The charging station will display the following:
- Pro-line models: The display will show the message
'Charging point is powering up' and then the start
screen with logo.
- S-line models: The LED will turn off.
Your Eve Single is now ready for testing.

4.3 Testing the socket(s)

1. Put the test charging cable or charging cable into the
socket. Press firmly.
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU

4. COMMISSIONING

2. Hold the charge card in front of the RFID-reader to
start charging.
a. Pro-line models: If you use a charging cable the
texts 'Card accepted' and 'Charging in progress'
are shown. If you use a test charging cable 'Please
plug cable into vehicle' is displayed. An electrical
load needs to be connected to simulate the
charging process, then the texts 'Card accepted'
and 'Charging in progress' are shown.
b. S-line models: If you use a charging cable the LED
illuminates blue and when charging is in progress
it turns to purple. If you use a test charging cable
the LED flashes blue. An electrical load needs to
be connected to simulate the charging process,
then the LED flashes blue when charging is
started.
The socket is functional.
3. Hold the charge card in front of the RFID-reader to
stop charging.
a. Pro-line models: The texts 'End of session' is
displayed.
b. S-line models: The LED flashes blue.
4. Pull out the test charging cable or charging cable.
The charging station is now ready for use.
