6.

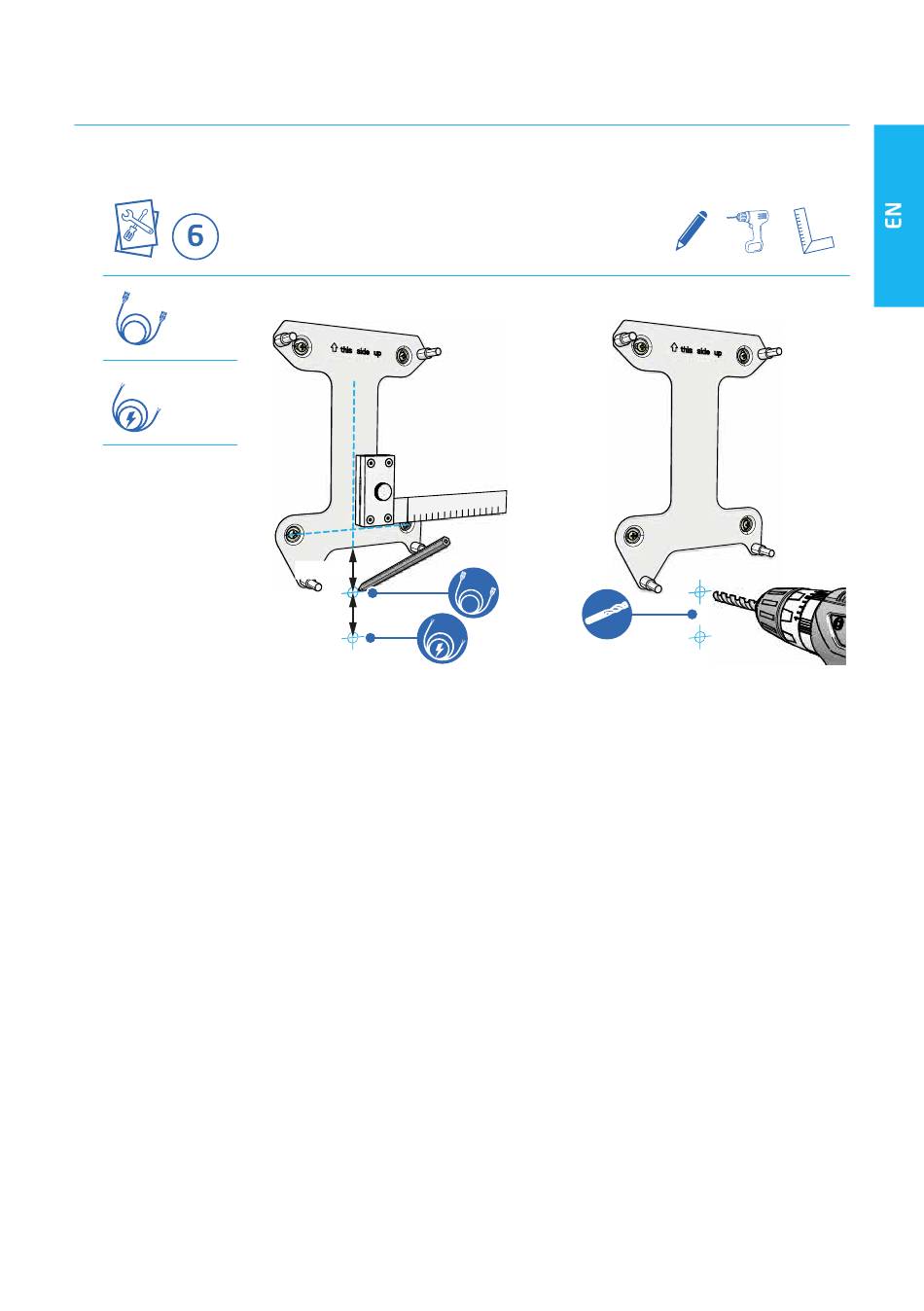

Use a pencil and a right angle square tool to mark the location for the holes for the wiring: data cable(s) 50 mm below
wall-mount, power cable 100 mm below wall-mount. Drill the holes.
1x,
2x
1x
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
3. INSTALLING AND CONNECTING
50 mm
50 mm
19
