10.

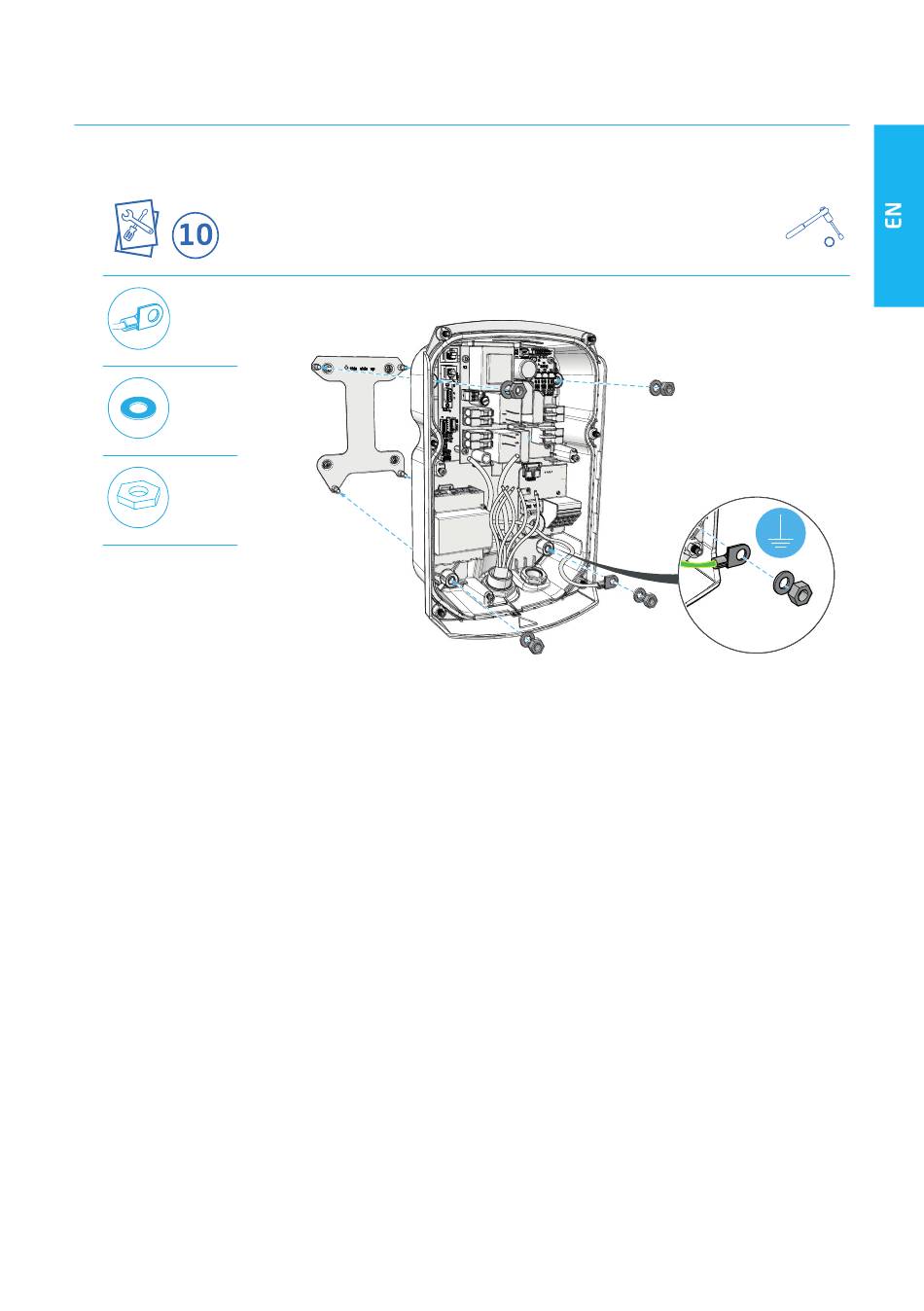

Mount the charging station on the wall-mount frame with a torque of 10 Nm. Attach the earth wire on the bottom
right threaded end of the wall-mount frame. Use M8 washer and nut.
1x
1x
M8
1x
M8
Mechanical installation procedure is finished. Charging station is ready for electrical installation.
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
