2. PRODUCT OVERVIEW
Symbol Description
Wall-mount frame
Identification label

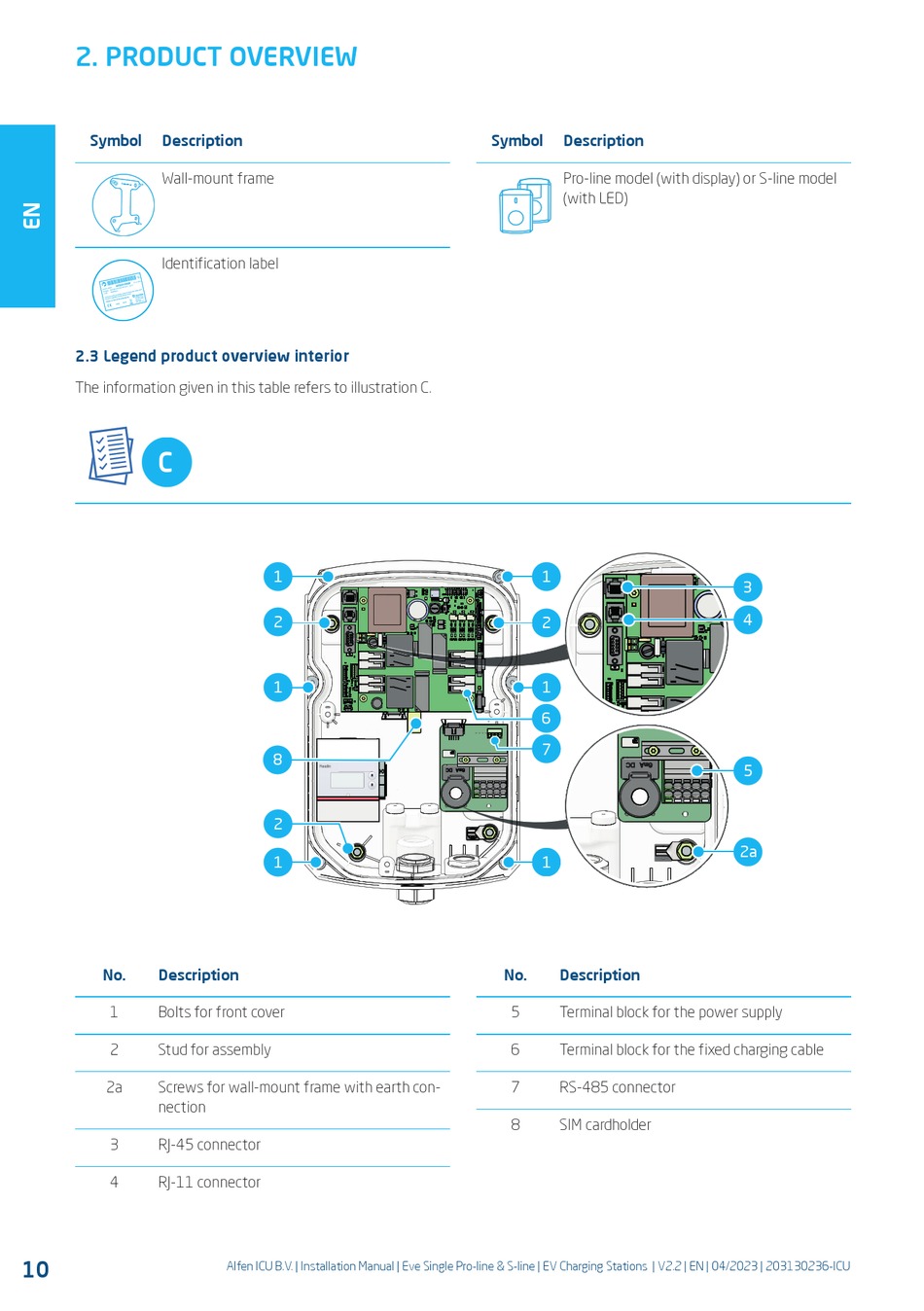

2.3 Legend product overview interior

The information given in this table refers to illustration C.
C
No. Description
1 Bolts for front cover
2 Stud for assembly
2a Screws for wall-mount frame with earth con-
nection
3 RJ-45 connector
4 RJ-11 connector
10
1
2
1
8
2
1
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
Symbol Description
Pro-line model (with display) or S-line model
(with LED)
1
2
1
6
7
1
No. Description
5 Terminal block for the power supply
6 Terminal block for the fixed charging cable
7 RS-485 connector
8 SIM cardholder
3
4
5
2a
