13
SUPPORT FOR
EUROPEAN STANDARD

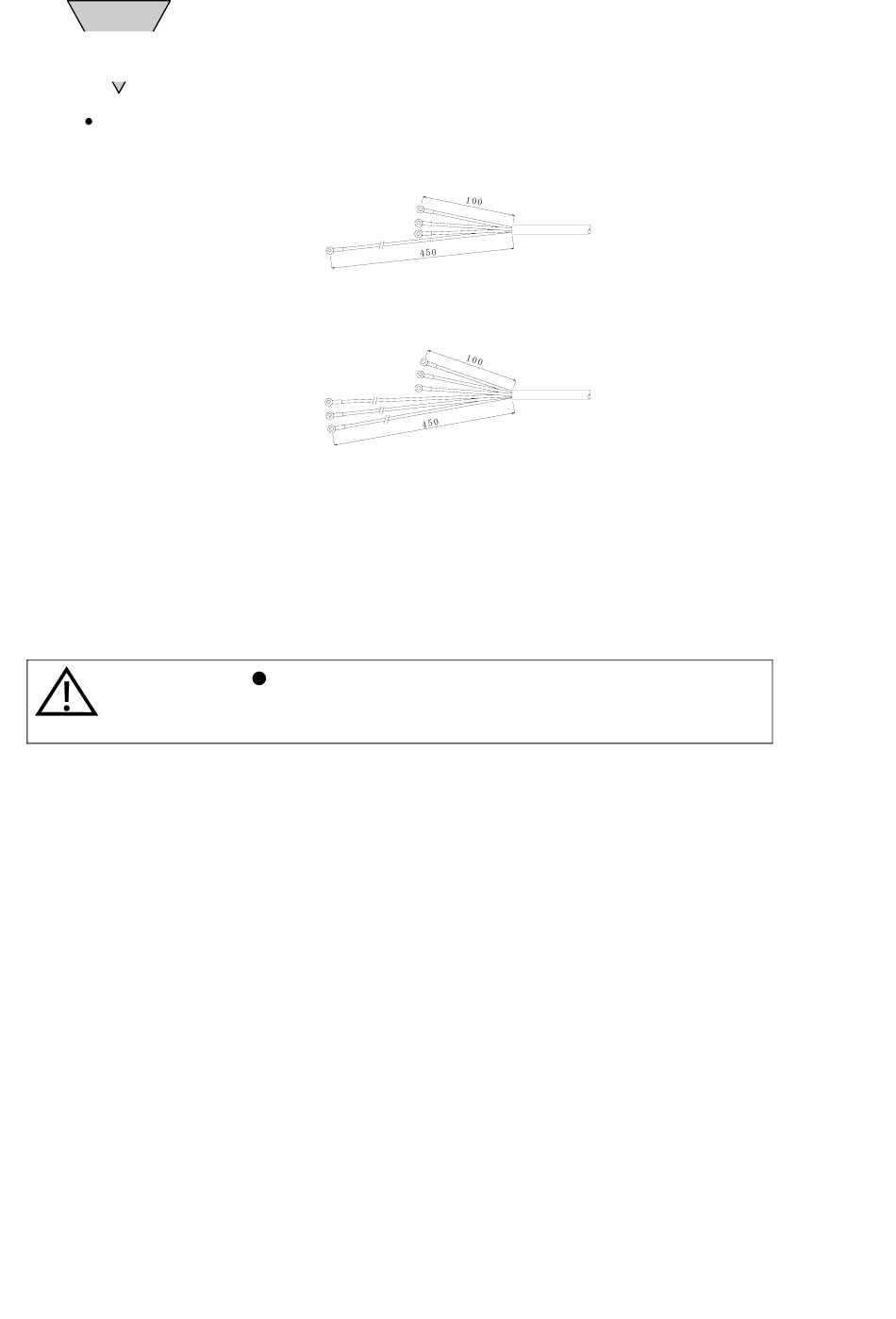

The end of the accessory motor cable is shown in Fig. 13.9. The cable to be
connected with the ferrite core is shorter by 350mm than the FG, BK+ and BK- cables.
WARNING:
[SMB-14E]
Discontinue
U
V
W
F G
4 芯 の 場 合
In case of 4-conductor cable
U
V
W
BK+
BK-
FG
6 芯 の 場 合
In case of 6-conductor cable
Fig. 13.9 End of Accessory Motor Cable
When inserting a fuse in the U, V or W phase motor
power cable, provide a cover on the fuse together
with the fuse holder to avoid electric shock.
— 13-14 —
