Removal and Installation Procedures
CH1 & CH2 OUT1G Board
4–48
The cable at J3011 from the AWG1G board to External Clock Input
connector.
The cable at J3020 from the AWG1G board to Oscillator Output connector.
The cable at J3010 from the AWG1G board to the CLK1G board.
6. Remove the 11 screws securing the AWG1G board to the chassis.
7. Lift the board away from the chassis.
8. Disconnect the ribbon cable at J1000 on the AWG1G board.
Installation. To install, reverse this procedure.
You need a screwdriver with a T-15 Torx tip and a wire cutter (items 1, 2, and 9).
Removal. To remove the CH1 & CH2 OUT1G board, follow these steps: (See
Figure 4-21 on page 4-42.)
1. Remove the handle unit, snaps, cosmetic covers, front-trim unit, EMI covers,
and AWG1G board.
2. Orient the instrument so that the top is on the work surface.
3. Use a wire cutter to remove the four cable ties. (See Figure 4-25.)

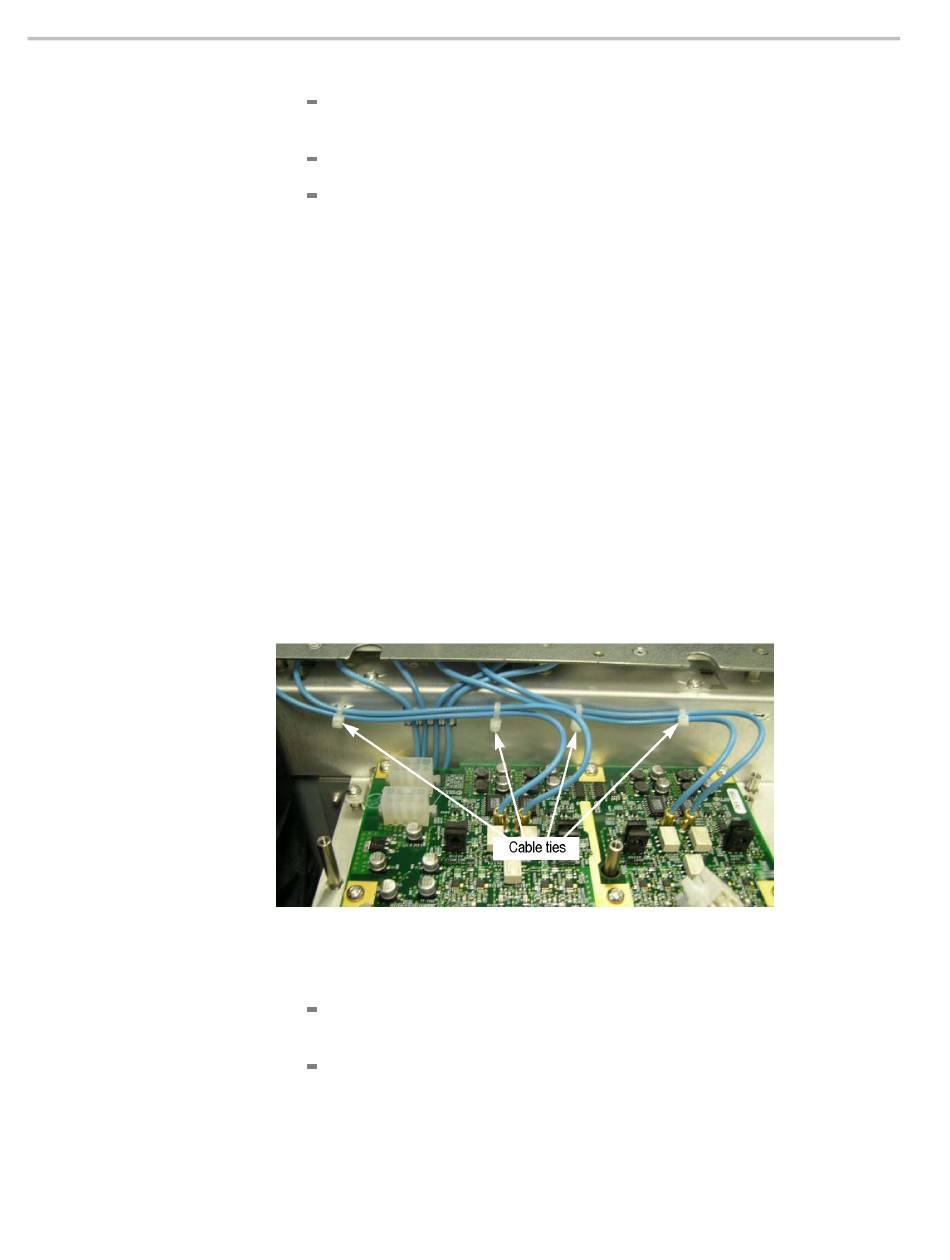

Figure 4-25: Location of the cable ties

4. Disconnect these cables:
The cable at J5000 from the CH1 & CH2 OUT1G board to the AWG1G
board (J1050).
The cable at J6000 from the CH1 & CH2 OUT1G board to the Power
board (J631).
