Figure 4-31: Awg1G Board Test Points (J2000); Table 4-6: Test Points Voltage (J2000) - Tektronix AWG5000B Series Service Manual

Checking the Voltages on
the AWG1G Board
AWG5000B and AWG5000C Series Service Manual
To measure the output voltages of the PWR board, check the voltages at J2000
on the AWG1G board with the digital multimeter and compare each reading to
the values listed in the following table. If the voltages are within the allowance,
your PWR board is functional.

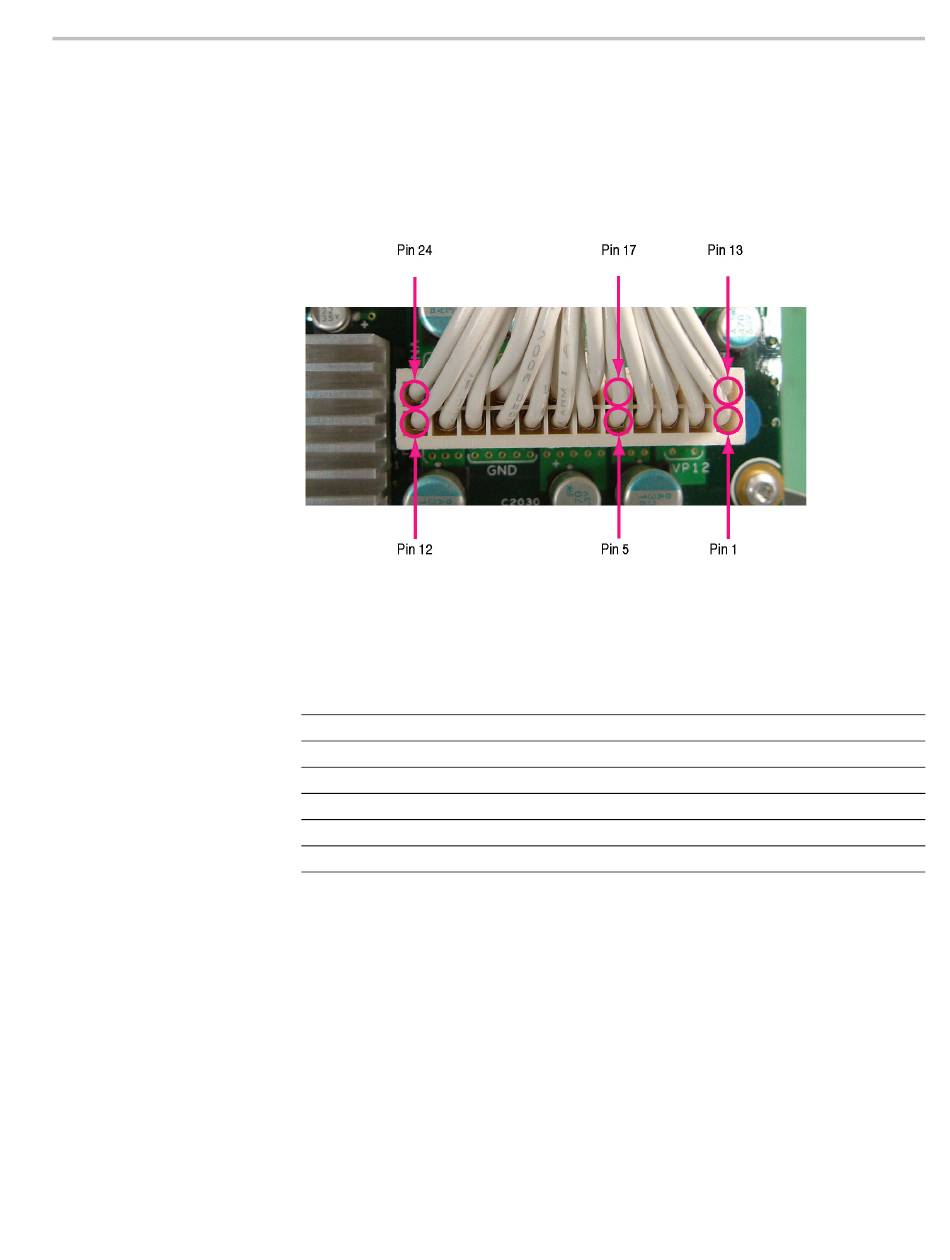

Figure 4-31: AWG1G board test points (J2000)

Table 4-6: Test points voltage (J2000)

Test point
Pin 1
Pin 5
Pin 12
Pin 13
Pin 17
Pin 24
Voltage
+12 V
+3.3 V
-5.5 V
+15 V
+5 V
-12 V
Troubleshooting
Allowance
+11.4 V to +12.6 V
+3.1 V to +3.5 V
-5.2 to -5.8 V
+14.2 V to +15.8 V
+4.7 V to +5.3 V
-11.4 to -12.6 V
4–57
