Figure 4-24: Cable Post On The Awg1G Board (4 Ch) - Tektronix AWG5000B Series Service Manual

Removal and Installation Procedures
AWG1G 4 CH Board
4–46
The cable at J1440 from the AWG1G board to the Event Input connector.
The cable at J3011 from the AWG1G board to the External Clock Input
connector.
The cable at J3020 from the AWG1G board to the Oscillator Output
connector.
The cable at J3010 from the AWG1G board to the CLK1G board.
7. Remove the 10 screws securing the AWG1G board to the chassis.
8. Lift the board away from the chassis.
9. Disconnect the ribbon cable at J1000 on the AWG1G board.
Installation. To install, reverse this procedure.
You need a screwdriver with a T-15 Torx tip (items 1 and 2).
Removal. To remove the AWG1G 4 channel board, follow these steps: (See
Figure 4-21 on page 4-42.)
1. Remove the handle unit, snaps, cosmetic covers, front-trim unit, EMI covers,
and CLK1G module.
2. Orient the instrument so that the top is on the work surface.
3. Remove the screw securing the cable post to the AWG1G board, and then
remove the cable post. (See Figure 4-24.)

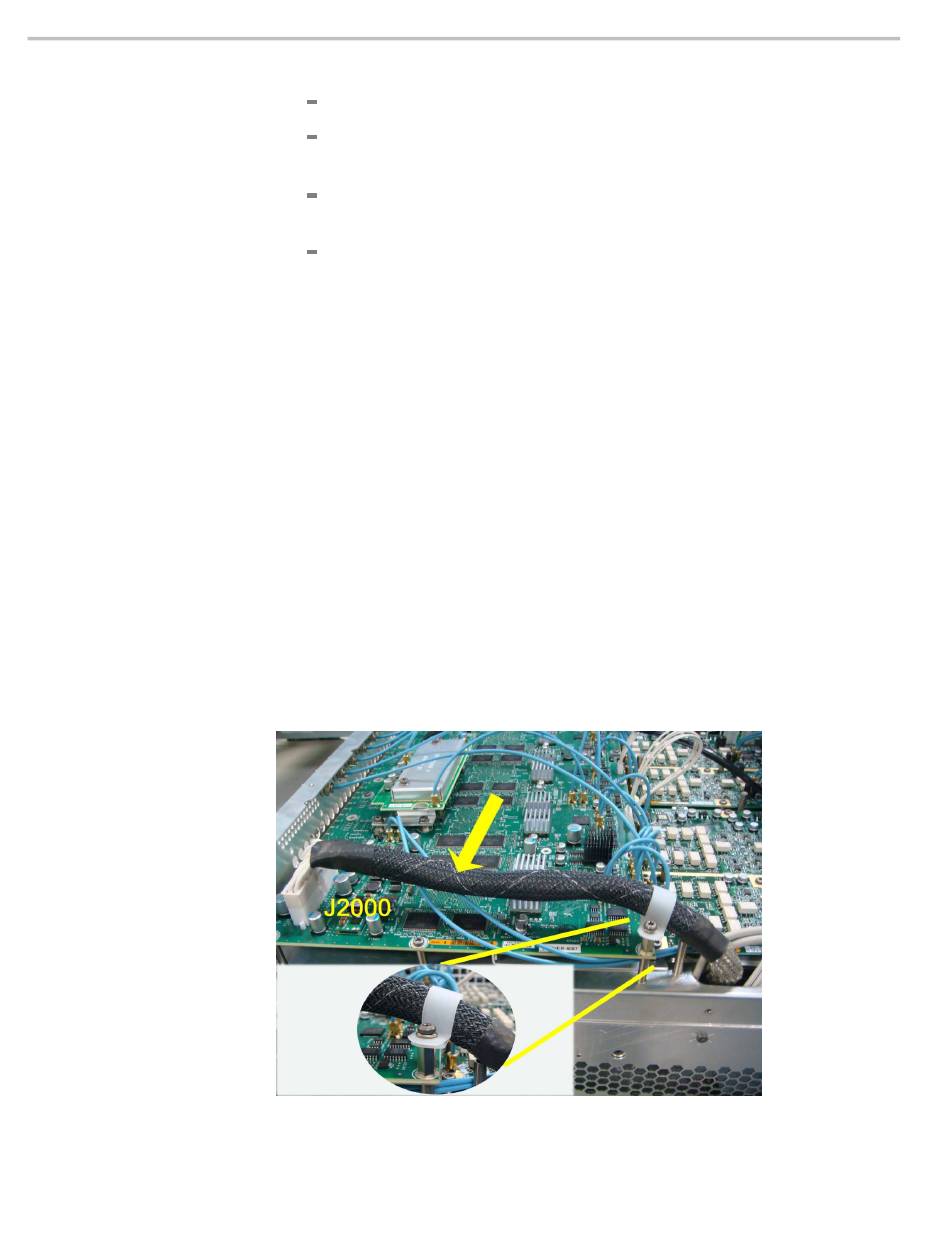

Figure 4-24: Cable post on the AWG1G board (4 CH)

AWG5000B and AWG5000C Series Service Manual
