Replaceable parts list – Fan tray assembly
Fig. & index
Tektronix
number
part number
5-14-
-1
211-1050-00
-2
211-1213-01
-3
407-5170-02
-4
343-0549-00
-5
119-7182-00

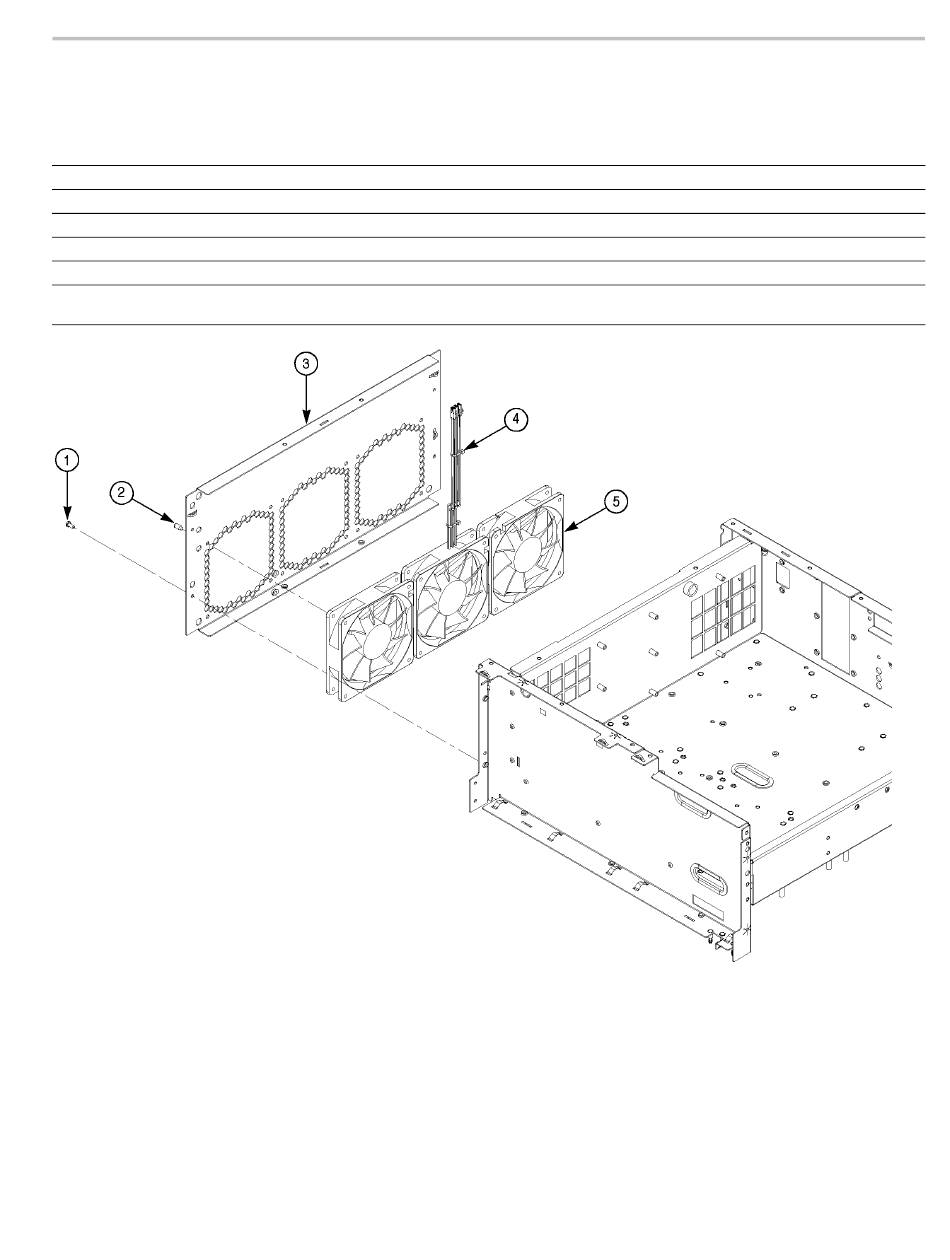

Figure 5-14: Fan tray assembly
AWG5000B and AWG5000C Series Service Manual
Serial no.
Serial no.
effective
discont'd
Qty
Name & description
FAN TRAY ASSEMBLY
4
SCREW,MACHINE; 6-32 X 0.312 L,PNH,STL CAD PLT,T15
12
SCREW, METRIC 5 X 10MM, FLATHEAD, STL, ZINC, POSI
1
BRACKET,FAN TRAY
2
STRAP,TIEDOWN; 0.098 W X 4.0 L, ZYTEL
3
FAN,TUBEAXIAL; 12VDC,0.40A,4.80W,2500RPM, 100.6CFM, 120MM,
LEADS W/CONN
Replaceable Parts
5–27
