Removal and Installation Procedures

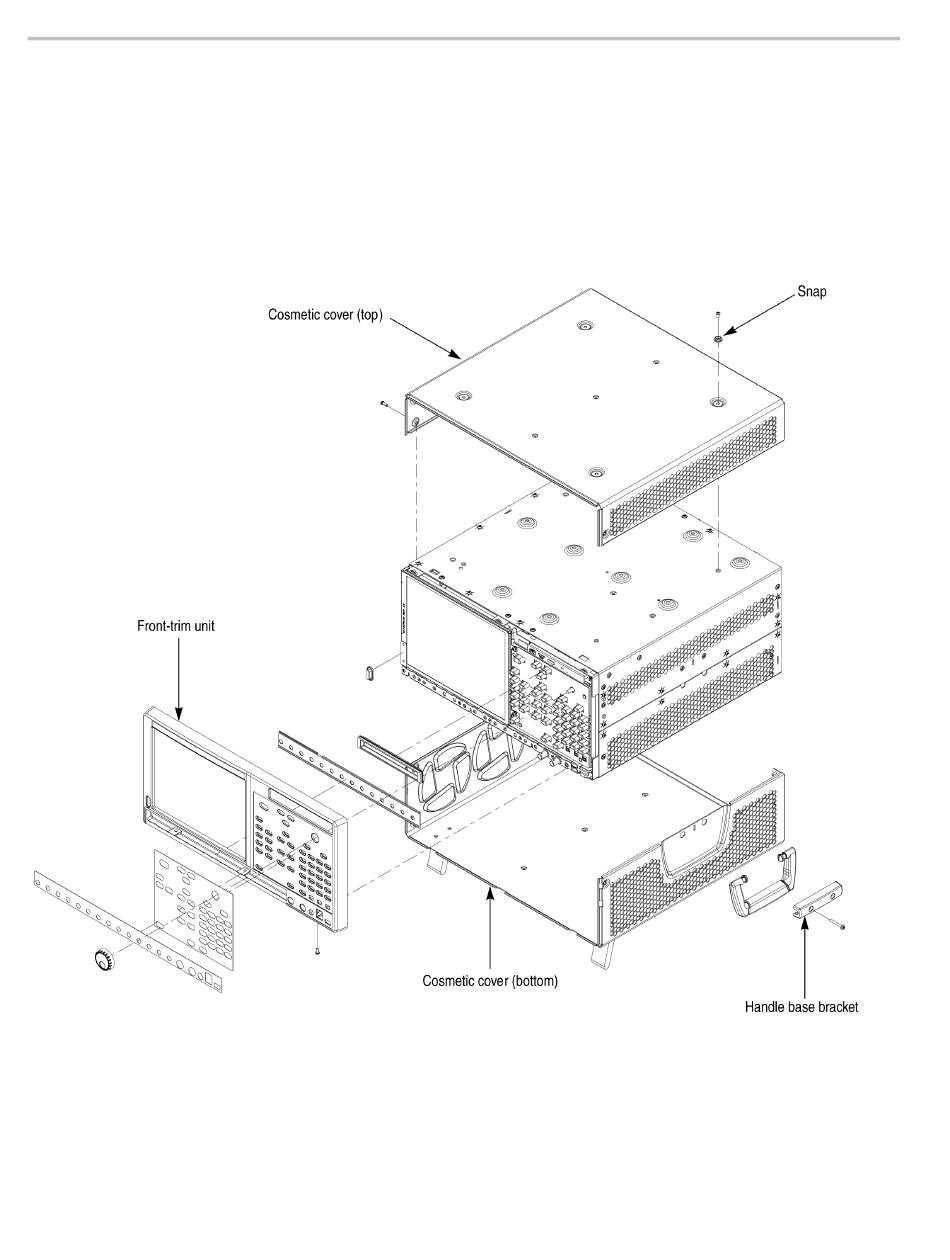

Figure 4-3: Handle, snaps, cosmetic covers, and front-trim unit removal
4–10
3. Remove the two screws (side) and three screws (bottom) securing the
cosmetic cover to the chassis.
4. Loosen the cover with a detaching tool, such as a flat-blade screwdriver.
5. Tilt the rear side of the cover up, and then pull it off the chassis.
Installation. To install, reverse this procedure.
AWG5000B and AWG5000C Series Service Manual
