Removal and Installation Procedures
Power Board
4–28
You need a screwdriver with a T-15 Torx tip (items 1 and 2).
Removal. To remove the Power board, follow these steps: (See Figure 4-13.)
1. Remove the handle unit, snaps, cosmetic covers, front-trim unit, EMI covers,
hard disk assembly, drive-bay module, power supply, Multi-Input/Output
board, and Processor board.
2. Orient the instrument so that the bottom is on the work surface.
3. Disconnect the cables from J102, J103, J120, J300, J302, J304, J600, J610,
J611, J630, and J632 on the Power board.
4. Remove the 10 screws securing the Power board to the chassis.
5. Lift the board away from the chassis.
Installation. To install, reverse this procedure.

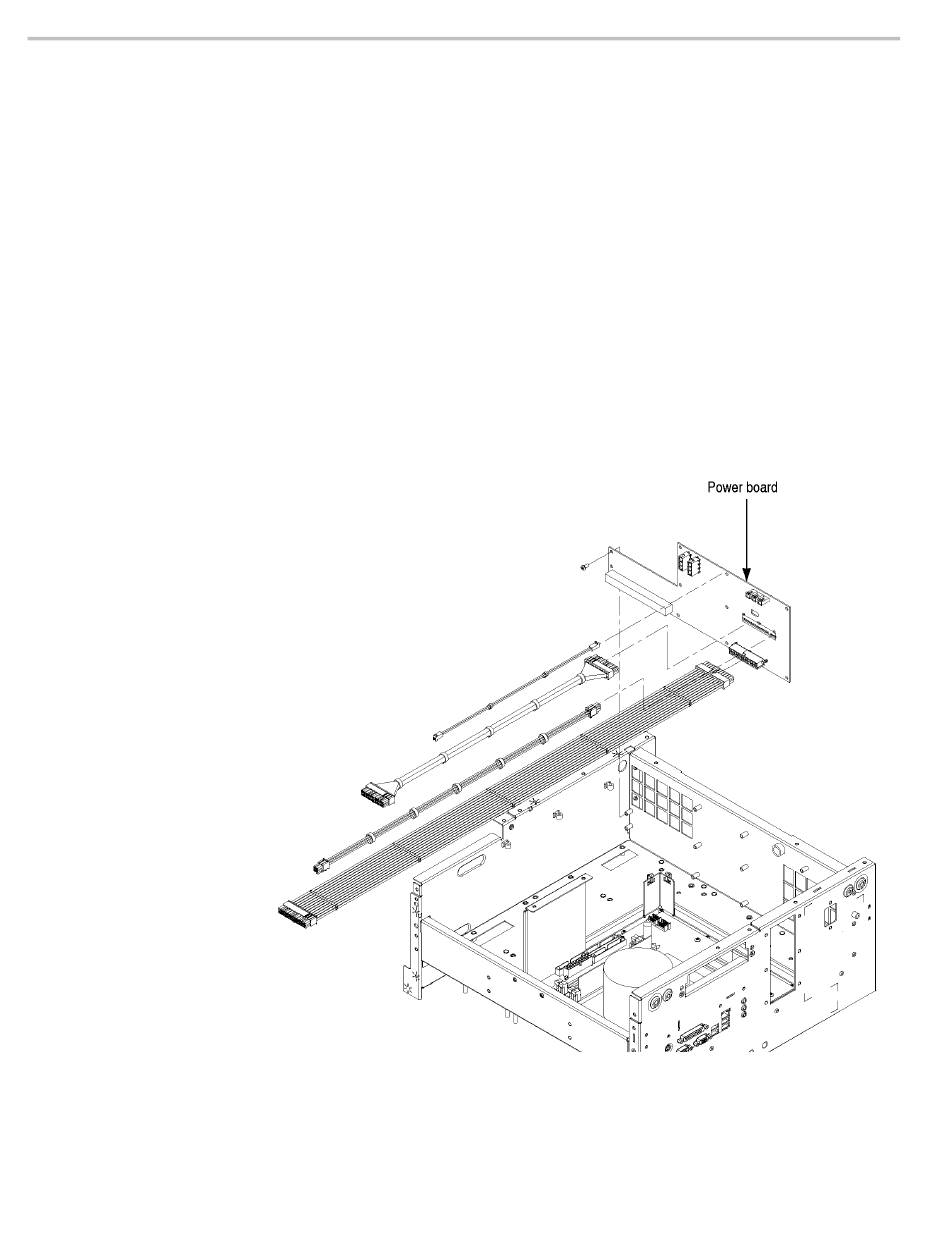

Figure 4-13: Power board removal

AWG5000B and AWG5000C Series Service Manual
