OPTIONAL NIGHT AIR CURTAIN INSTALLATION & OPERATING INSTRUCTIONS
Night Air Curtain Installation & Operating Instructions
1. Use caution when handling Night Air Curtain.
2. Display case may come with Night Curtain already attached. If not, a retrofit kit will be
provided. If using SCC-supplied retrofit kit, attach to display case by centering night
curtain along top-front of case as shown in illustration below. Attachment Magnets will
hold Night Air Curtain firmly in place. To attach to display case, place night curtain on
top of case as shown. Mark "key slot" locations using night curtain as a template (you
may have to retract the curtain from housing to reveal "key slots." Drill Ø11/32" holes
in top board 1/2" deep. Press "finserts" (shown below) into holes. Carefully tap in with
flat object to prevent top board damage. Attach Night Air Curtain with #10-32 screws.
3. Grasp handle and pull downward to desired location INSIDE acrylic air deflector.
4. To return Night Air Curtain to its retracted position, grasp handle, lift up and away from
its magnetic attachment and carefully wind Night Air Curtain back into roll.
5. Caution! Do not allow spring-loaded Night Air Curtain to freely snap back into roll.
Doing so can eventually destroy Night Air Curtain's tension and retractability.
6. To entirely detach Night Air Curtain from case, retract curtain (to access key slots),
remove screws. Lift Night Air Curtain upward and away from case.

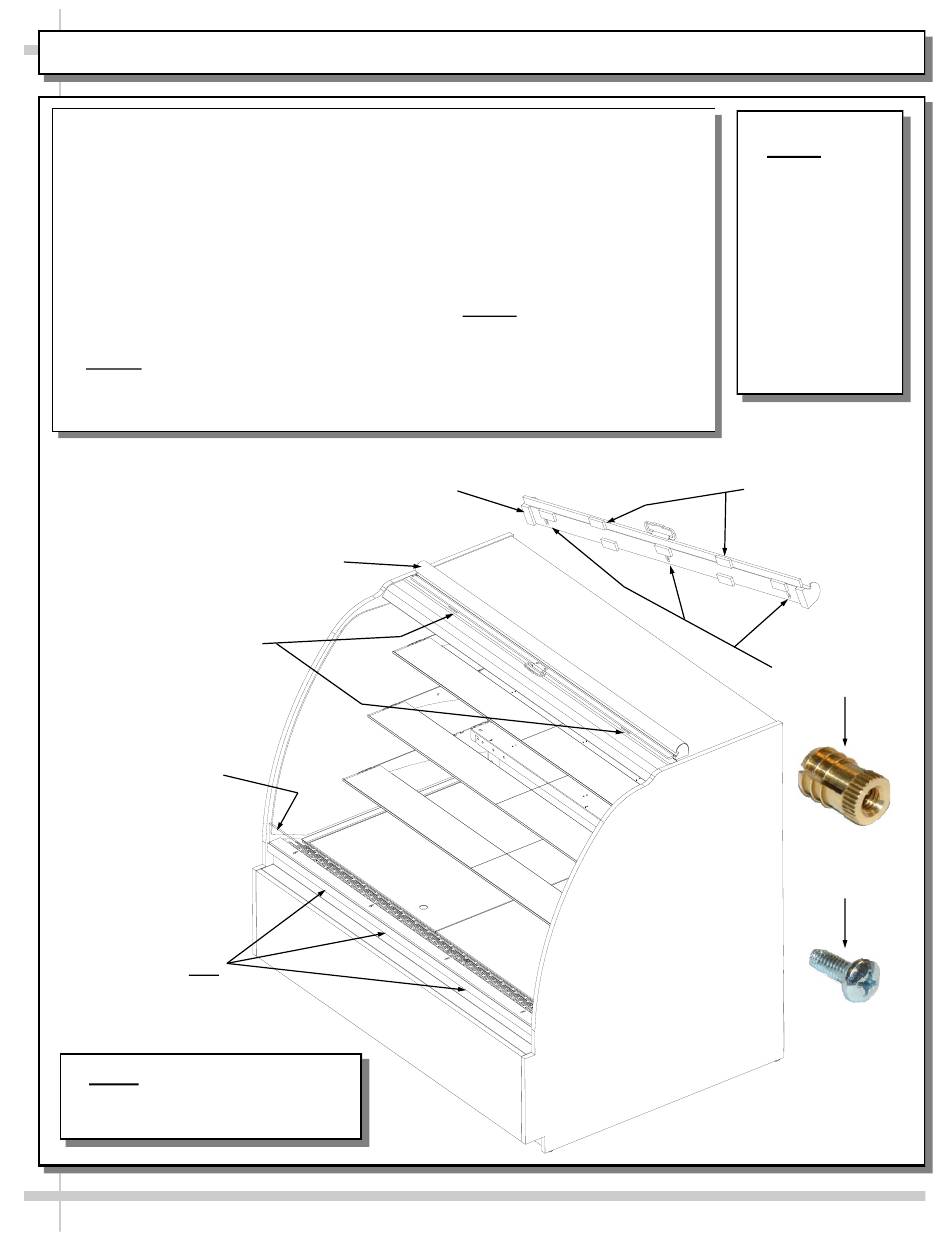

View of Night Air Curtain
(Topside / Attached)
Night Air Curtain
Retraction Magnets
Acrylic
Air Deflector
Night Air Curtain
Retraction Magnets
Attachment Points
(Along Plate Outside
Acrylic Air Deflector
NOTE: SEE NEXT PAGE FOR
MODEL HMO5136R.4716
NIGHT AIR CURTAIN LOCATION
View of Night Air Curtain
(Underside / Detached)
18
NOTE: THE
BELOW
ILLUSTRATIO
N MAY NOT
EXACTLY
REFLECT
EVERY
PARTICULAR
CASE'S
FEATURES OR
OPTIONS.
Night Air Curtain
Retraction Magnets
Night Air Curtain
Keyslots
"Finsert" (to
be inserted in
top board)
#10-32 screw
(to be
inserted
through Night
Air Curtain
Keyslots and
into "Finsert")
