TROUBLESHOOTING: CONDENSER PACKAGE OVERVIEW

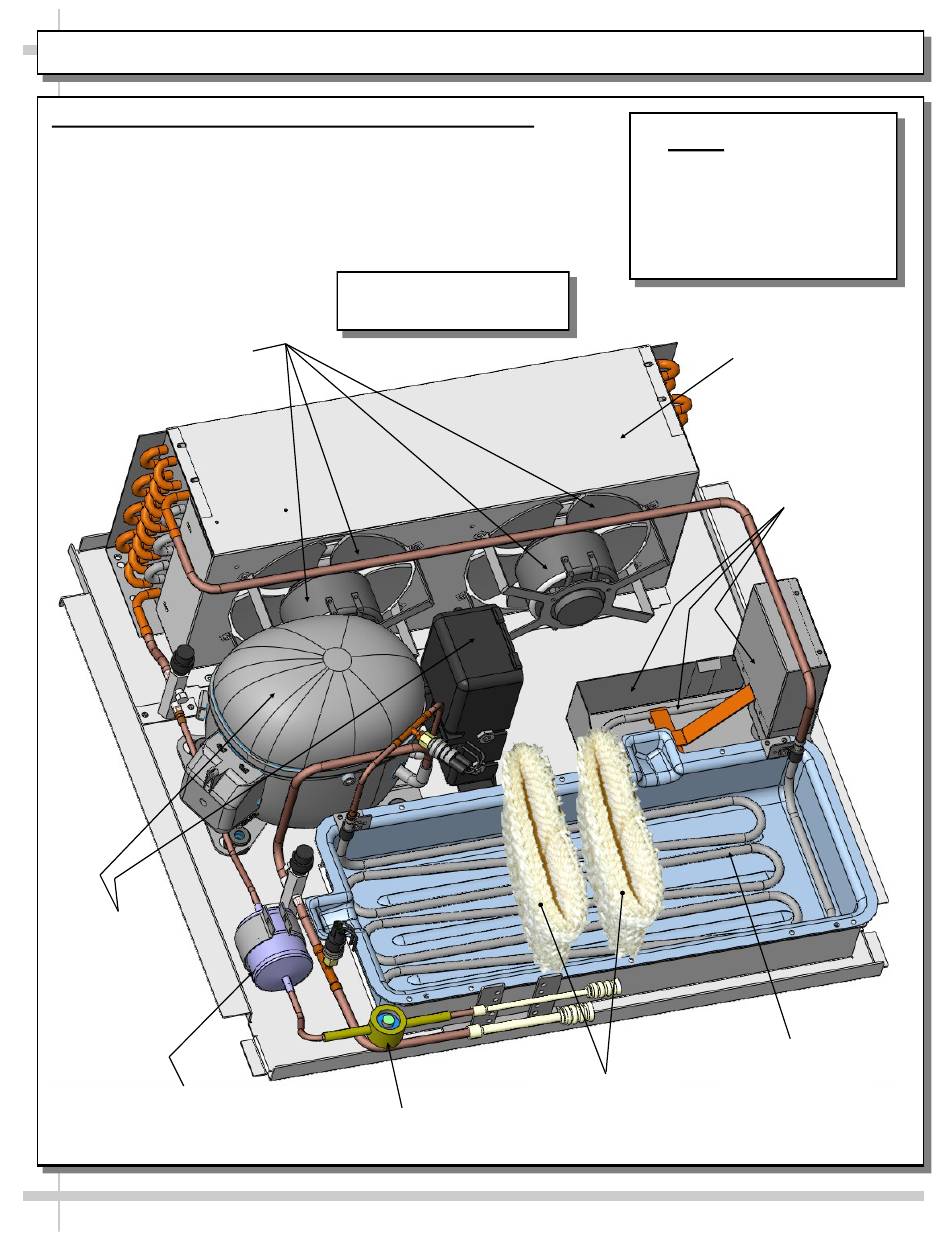

Condenser Package / Compressor Component Locations
• Illustration below shows refrigeration package, compressor,
condenser pan, fans, blades, etc.
• See pages that follow for troubleshooting instructions.
• Refrigeration unit pulls out from back of unit for service.
• Only refrigeration contractors are to access refrigeration package.
Condenser Coil
Fans & Blades
Compressor
and Start
Components
Filter
Dryer
Condenser Package
Accessible at Case Rear
Sight Glass
28
NOTE: THE BELOW
ILLUSTRATION MAY
NOT EXACTLY REFLECT
YOUR PARTICULAR
CASE'S FEATURES OR
OPTIONS.
Wicking Material
(Optional)
Condenser
Coil Cover
Electric Coil
Overflow Pan
& Electrical
Box
Condensate Pan
and its Coil
