OPTIONAL NIGHT AIR CURTAIN INST. & OPERATING (MODELS HV(L)RSS, HMO(L)36R, HMO(L)53R)
Night Air Curtain Installation & Operating Instructions
1. Use caution when handling Night Air Curtain.
2. Display case may come with Night Curtain already attached. If not, a retrofit kit will be
provided. If using SCC-supplied retrofit kit, attach to display case by centering night
curtain along top-front of case as shown in illustration below. Attachment
will hold Night Air Curtain firmly in place. To attach to display case, place night curtain
on top of case as shown. Mark "key slot" locations using night curtain as a template
(you may have to retract the curtain from housing to reveal "keyslots". Drill Ø11/32"
holes in top board 1/2" deep. Press "finserts" (shown below) into holes. Carefully tap
in with flat object to prevent top board damage. Attach Night Air Curtain with #10-32
screws.
3. Grasp the handle and pull downward to desired location INSIDE acrylic sneeze guard.
4. To return Night Air Curtain to its retracted position, grasp handle, lift up and away from
its magnetic attachment and carefully wind Night Air Curtain back into roll.
5. Caution! Do not allow spring-loaded Night Air Curtain to freely snap back into roll.
Doing so can eventually destroy Night Air Curtain's tension and retractability.
6. To entirely detach Night Air Curtain from case, retract curtain (to access keyslots),
remove screws. Lift Night Air Curtain upward and away from case.

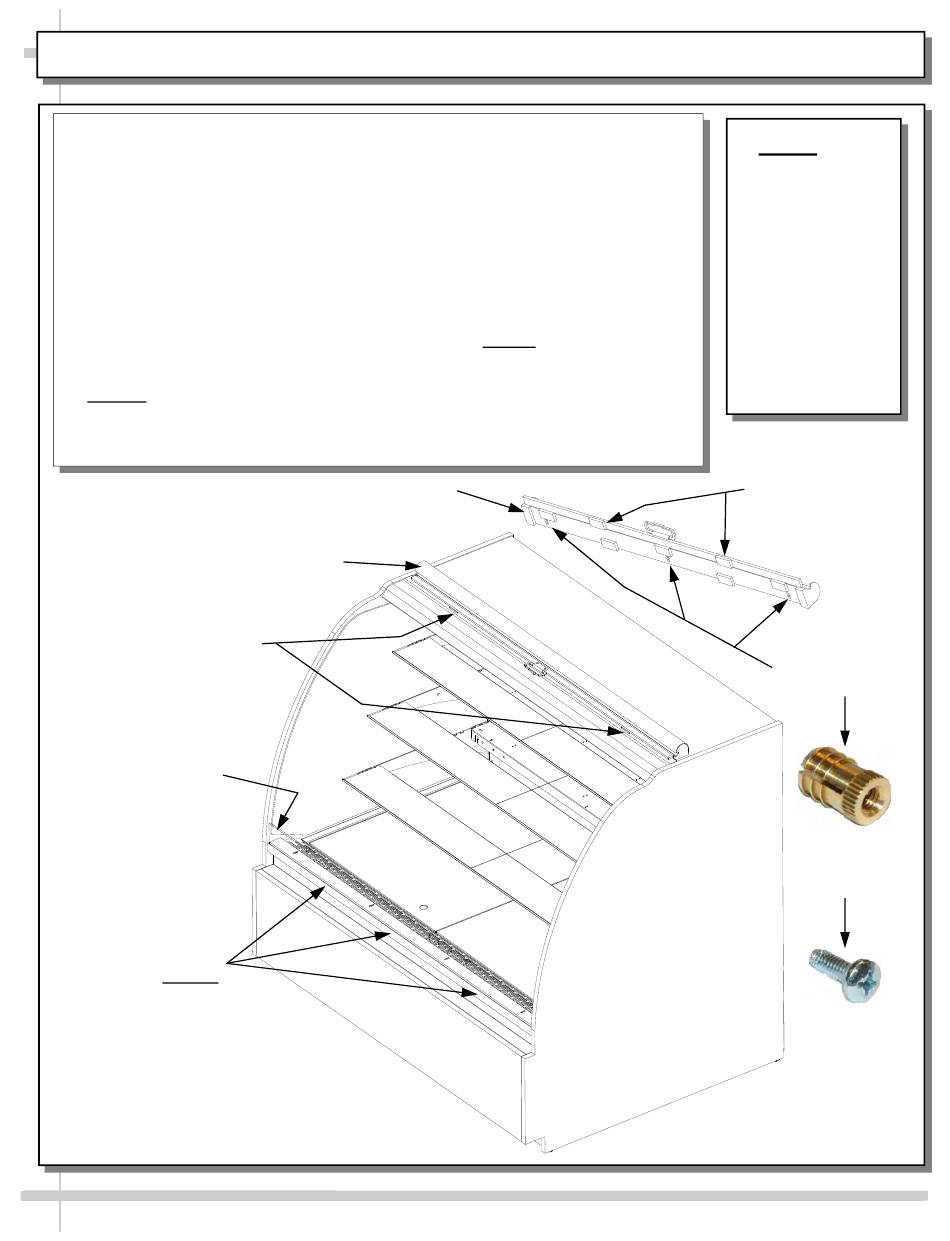

View of Night Air Curtain
(Topside / Attached)
Night Air Curtain
Retraction Magnets
Acrylic
Sneeze Guard)
Night Air Curtain
Retraction Magnets
Attachment Points
(Along Plate Outside
Acrylic Sneeze Guard)
View of Night Air Curtain
(Underside / Detached)
14
NOTE: THE
BELOW
ILLUSTRATION
Magnets
MAY NOT
EXACTLY
REFLECT
EVERY
PARTICULAR
CASE'S
FEATURES OR
OPTIONS.
Night Air Curtain
Retraction Magnets
Night Air Curtain
be inserted in
Keyslots
"Finsert" (to
top board)
#10-32 screw
(to be in-
serted
through Night
Air Curtain
Keyslots and
