TROUBLESHOOTING: LIGHTS NOT OPERATING

CONDITION
Lights Not Check that light switch is in the ON position.
Operating
• See POWER CORD & PLUG / LED LIGHT SWITCH LOCATIONS / LED LIGHTS
section in manual for switch location (regardless of case design).
If case is not hard-wired, check that power cord is properly connected to wall outlet.
Check that ALL of the light plugs are properly connected to the LED light.
• Plug must be inserted ALL THE WAY into the LED light orifice (with no gap).
• See illustrations below.
Power may not be reaching the case.
• Contact store management to have trained service provider perform troubleshooting.
If case light still do not come on, it may need to be replaced.
• Contact Structural Concepts' Technical Service Department for replacement light
(see TECHNICAL SERVICE section of this manual for contact information).
• To replace, disconnect plug from existing LED light. Disconnect LED light from its
brackets. Replace with new LED light. Insert plug ALL THE WAY into LED light orifice.

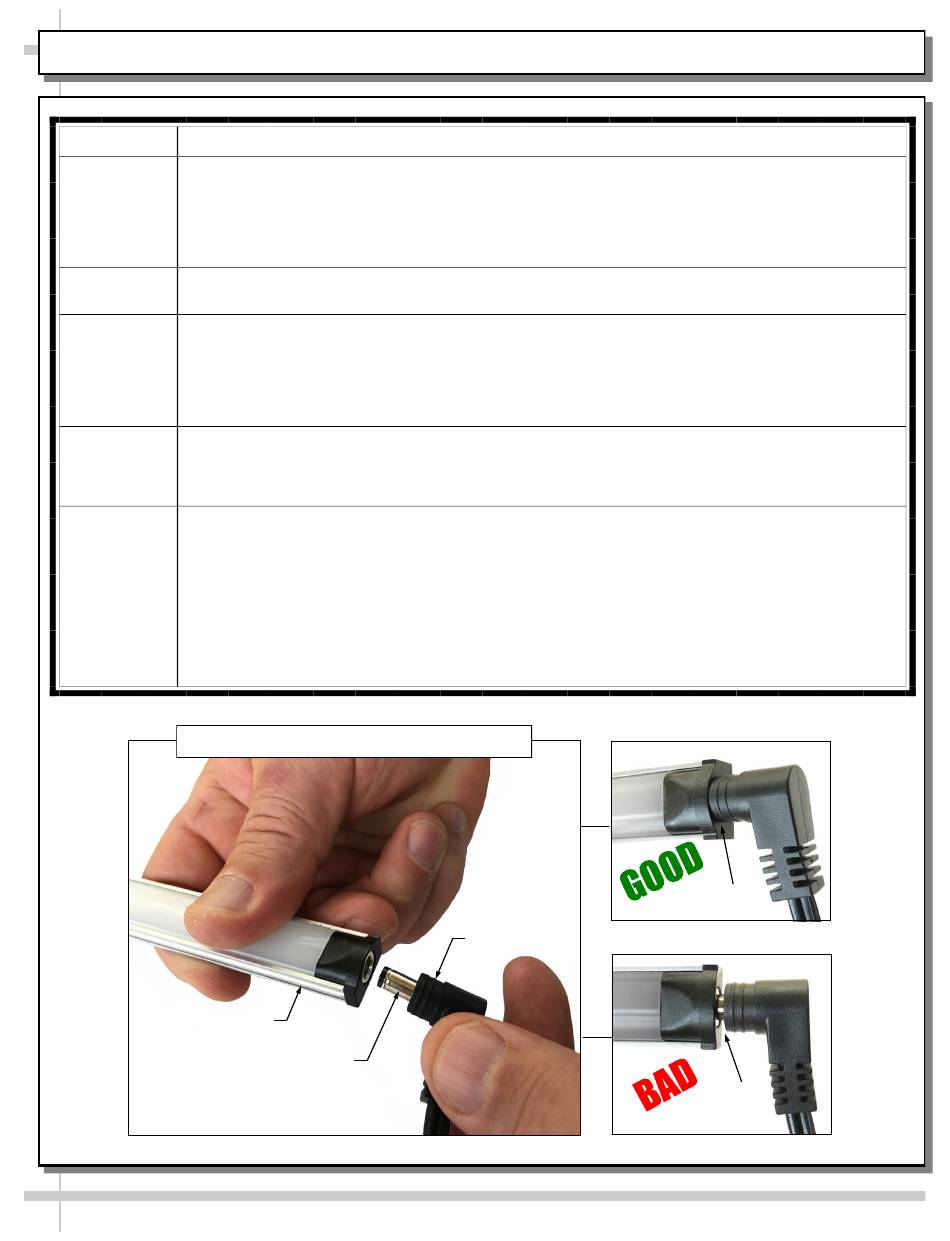

--- "Barrel-Shaped" LED Plug & Light Fixture ---
LED Light
LED's Barrel
Shaped Insert
TROUBLESHOOTING
30
Plug
30
No Gap
Gap
