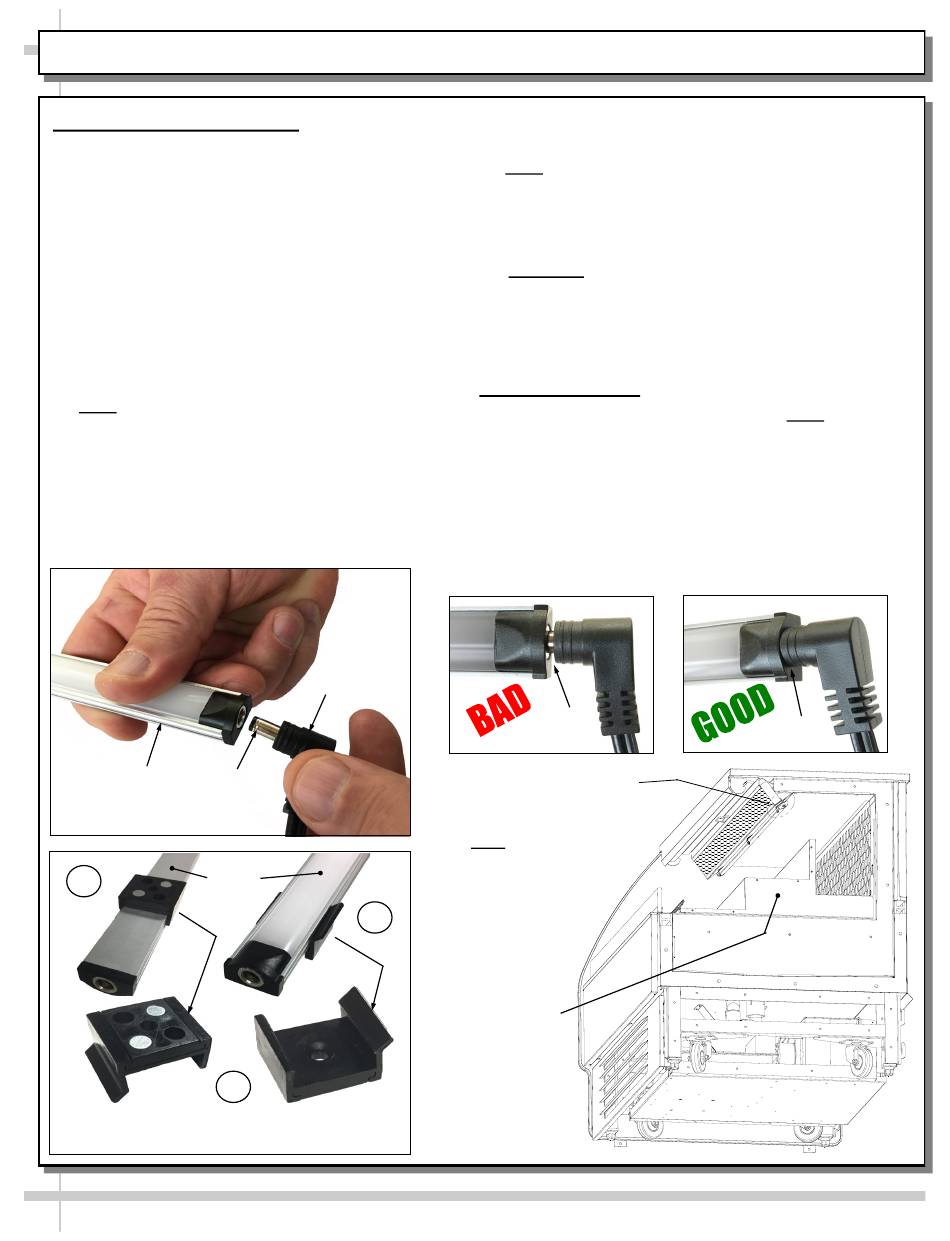

MAINTENANCE FUNDAMENTALS - STEP ASSEMBLY / LED LIGHT FIXTURE

1. LED Style Light Fixtures
Removal of Faulty LED Lights:
• LED lights rarely require change-out.
• Contact Structural Concepts' Technical Service
Department for replacement LED lights.
• Turn off LED light switch.
• To remove faulty LED light, follow these steps:
A. Disconnect plug from LED light.
B. Using both hands, grasp LED light assembly
(with its magnetic mounting clips). Pull
downward and off its shelf (or header).
C. Remove magnetic mounting clips from LED
light by pressing against flange part of clip
with thumb.
>> Note: Mounting clips MAY be riveted to shelf or
header. In such instances, simply remove LED light
from mounting clips by pressing against flange part
of clips with thumb.
Replacement of LED lights:
• Attach magnetic mounting clips onto LED light.
• Adjust magnetic mounting clips so they are
equally spaced on LED light.
Barrel
LED
Shaped
Light
Insert
LED
B
Lights
C
Magnetic
Mounting Clip View #1
Plug
B
Magnetic
Mounting Clip View #2
• Reattach LED light assembly to its shelf/header.
• Position properly in shelf/header.
>> Note: If mounting clips are riveted to shelf (or
header), attach by placing LED in base of clip and
then snapping into clip at FLANGE SIDE.
• Press plug's barrel-shaped insert all the way into
LED light.
• Important: If plug is not inserted ALL THE WAY IN
the LED light's orifice, the light may not energize.
See "BAD" vs.
below.
• Turn LED light switch back on.
2. Step Assembly
• Step assembly is adjustable and is NOT held in
place by screws or bolts.
• Simply lift up and out.
• Caution! Remove carefully to avoid scratching or
marring inside of case.
•
Return to case in same location it was removed.
•
See Cleaning Schedule section in manual for
specifics on cleaning methods and frequency.
Gap
LED Light
Note: Model
HMO5136R.4716 Is
Shown At Right.
Your Model
May Differ.
Removable
Step Assembly
13
"GOOD" insertion illustrations
No Gap
