Structural Concepts HARMONY HMO7536R User Manual page 7

INSTALLATION, CONTINUED
3. Electrical Connections (Remote Cases)
Field wiring connection / electrical access location
is at customer-left side of case.
• Single phase leads are provided.
• Connection
4. Connections/Controller/Main Power Switch
(Self-Contained Units)
Controller/Ballast box is at customer rear.
• See illustrations below.
• Below illustrations show layout of controller,
ballasts, main power switch, terminal block, etc.
after removal of controller/ballast box cover.

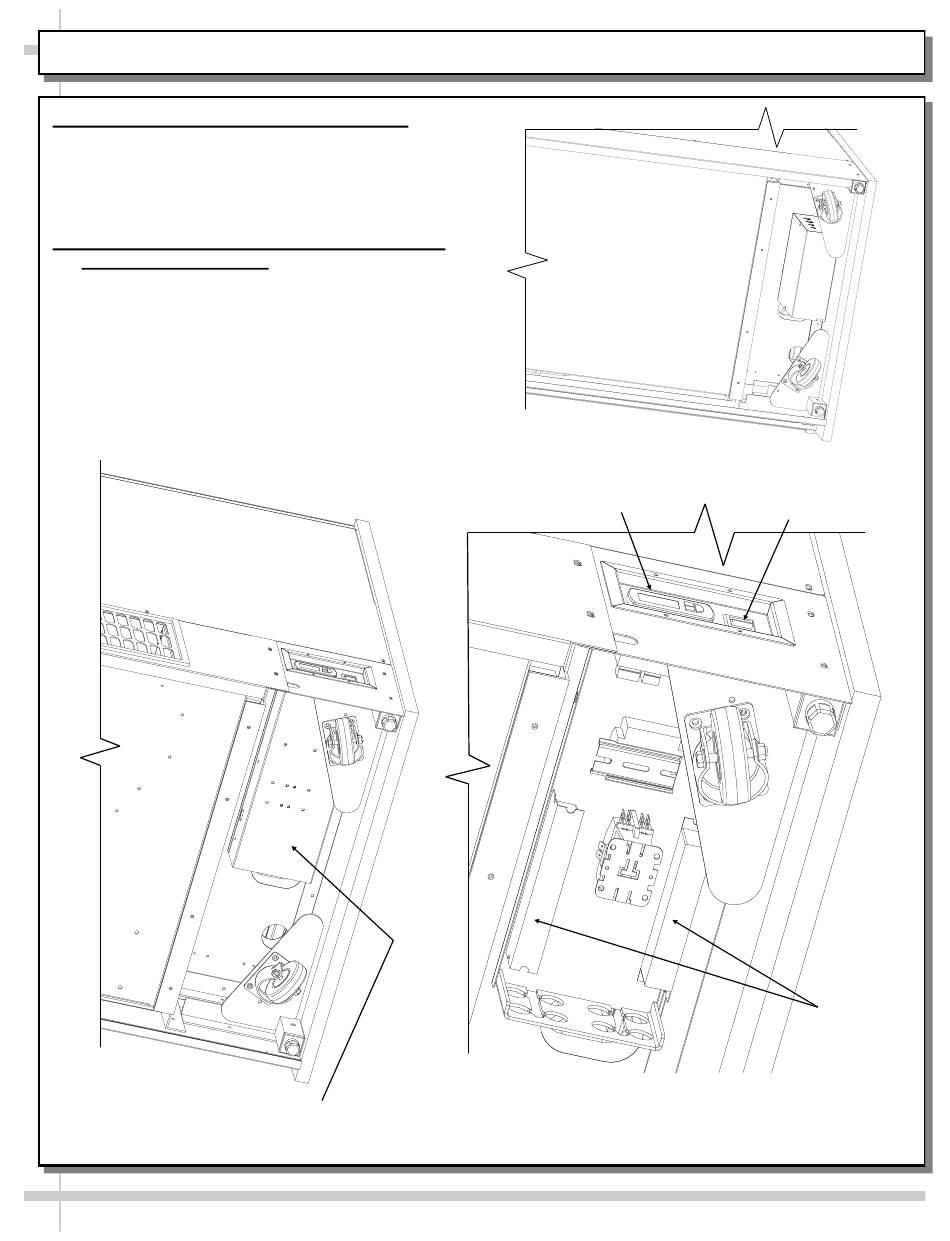

HMO7536R Underside View With
Controller/Ballast Box Cover Intact
Controller
HMO7536R Underside With
Controller/Ballast Box Cover Removed
7
Main Power
Switch
Ballasts
