Accessory components for operating point setting

The operating point setting can also be made with the accessory components
• R11/RG11 remote control
• Up/Down torch with two rockers (2 U/D)
You will find an overview of accessory components in the "Accessories" chapter. See the operating
instructions for the machine in question for a more detailed description of the individual machines and
their functions.
5.7.7

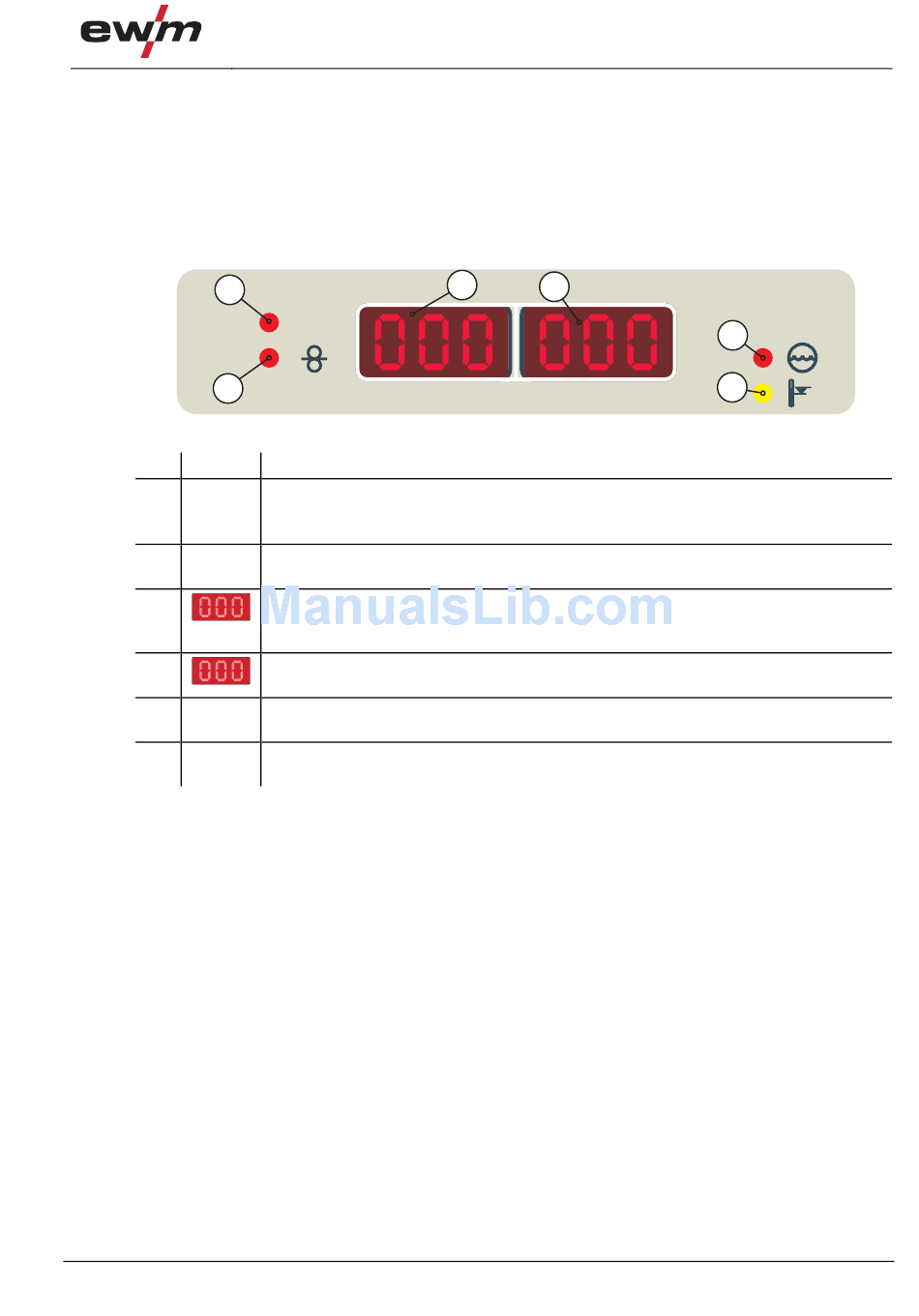

MIG/MAG welding data display

1
2
Item Symbol Description
1
2
3
4
5
6
099-005214-EW501
19.05.2011
AMP
Taurus Basic S
0
Signal light, AMP
During welding, the left display shows the actual welding current value.
After welding, the welding current hold value is displayed.
Signal light, WF
The left display shows the nominal value for the wire feed
Display, left
Welding current as actual value or hold value,
wire-feed speed as nominal value.
Display, right
Welding voltage
Signal light, coolant fault
Low coolant level
Signal light, excess temperature
Excess temperature, welding machine
3
4
Figure 5-11
Design and function
MIG/MAG welding
5
V
6
