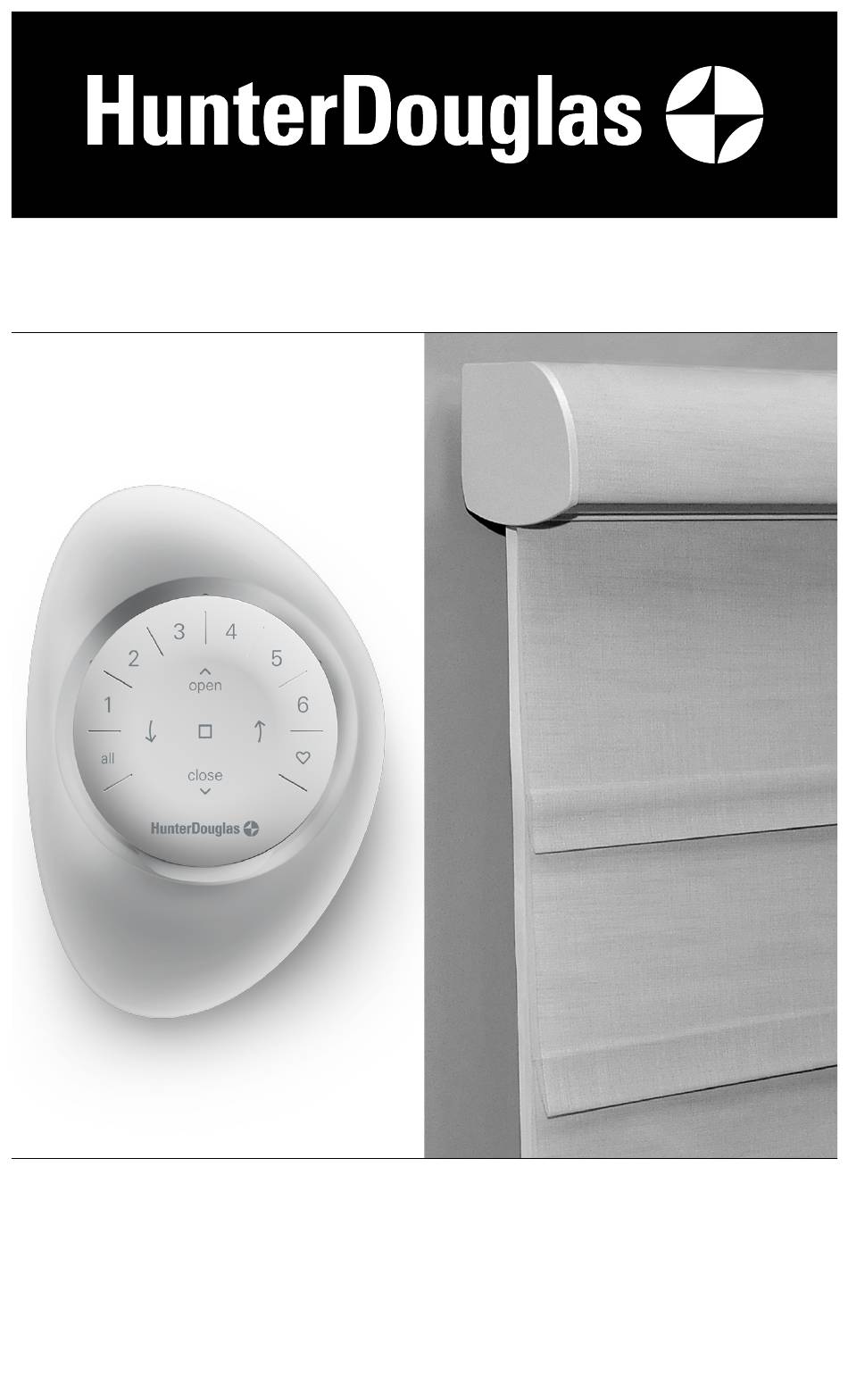

- Page 1 Installation Operation Care • • Vignette Modern Roman Shades ® Rolling Style Duolite Shades ® PowerView Gen 3 Automation ®...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED ...............1 Product View ................1 Tools and Fasteners Needed ..........2 INSTALLATION ..............3 Installation Overview .............3 STEP 1 — Mount the Installation Brackets ......3 Mount the Installation Brackets — Inside Mount ....4 Mount the Installation Brackets — Outside Mount .....5 STEP 2 —... -
Page 3: Getting Started
GETTING STARTED Product View Battery Battery Wand Clips Wand Spacer Power Cable* Blocks Installation Headrail Brackets Control Button* Front Shade Front Back Panel Shade Bottom Rail Back Panel Bottom Rail Bottom Rail Weight Front Shade Bottom Rail Bottom Rail Weight Clips *The power cable, PowerView Gen 3 motor, and control button are always located on the right side of ®... -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Vignette Modern Roman Shades Duolite with ® ® PowerView Gen 3 Automation. With proper installation, operation, and care, your new ® shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 5: Installation
INSTALLATION Installation Overview To install your shade, you will need to perform the following four steps: STEP 1: Mount the Installation Brackets STEP 2: Remove the Shipping Clips STEP 3: Install the Shade STEP 4: Connect the Power Source STEP 1 — Mount the Installation Brackets Your order includes the correct number of installation brackets for your shade width, as ■... -
Page 6: Mount The Installation Brackets - Inside Mount
INSTALLATION Mount the Installation Brackets — Inside Mount Measure and mark 3" in from each jamb (two bracket widths) for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤ evenly between the two end brackets and mark the location. Mount into wood whenever possible. -
Page 7: Mount The Installation Brackets - Outside Mount
INSTALLATION Mount the Installation Brackets — Outside Mount Center the headrail over the window opening at the desired height. Use a pencil to lightly ■ mark each end of the headrail. Alternatively, measure the width of the headrail and use that width to mark the ➤... - Page 8 INSTALLATION Attach the installation brackets using the screws provided. ■ IMPORTANT: If using a battery wand or headrail- mounted rechargeable battery wand, use a minimum 3" of one ⁄ " and one ⁄ " spacer blocks per installation bracket to provide the clearance required for the battery wand.
-
Page 9: Step 2 - Remove The Shipping Clips
INSTALLATION STEP 2 — Remove the Shipping Clips Shipping clips are used to stabilize the back panel bottom rail during shipping. Remove the Top of the Clip Grasp the headrail with one hand and hold the ■ shipping clip with the other hand. Pull the top of the clip out and up to release it from ■... -
Page 10: Step 3 - Install The Shade
INSTALLATION STEP 3 — Install the Shade Headrail Attached Battery Wands (If Applicable) NOTE: Refer to this section only if you have a battery wand that attaches to the headrail. Attach each battery wand clip to the rear headrail, avoiding the installation brackets. ■... - Page 11 INSTALLATION Mount the Headrail CAUTION: Be sure the cables do not become Installation Bracket pinched by the installation brackets when mounting the headrail. Peel back the protective covering from the ■ top of the fabric-covered headrail. Leave Front of the rest of the protective covering on the Bracket front of the headrail.
-
Page 12: Step 4 - Connect The Power Source
INSTALLATION STEP 4 — Connect the Power Source NOTE: When power is connected to the motor, a blue LED inside the control button housing will flash to indicate the shade is ready for operation. Refer to the appropriate page based on the ordered power source. ■... - Page 13 INSTALLATION Satellite Battery Pack (If Applicable) NOTE: Refer to this section if your shade includes a battery wand. Mount the Satellite Battery Pack Wall Mount Bracket Decide where you want to attach the wall mount bracket. ■ A satellite battery pack may be mounted in any orientation. Mark the screw holes.
- Page 14 INSTALLATION Headrail-Mounted Rechargeable Battery Wand (If Applicable) NOTE: Refer to this section if your shade includes a battery wand. Insert the Battery Wand into the Rechargeable Battery Mount NOTE: The rechargeable battery wand ships fully charged, so it is ready to install out of the package.
- Page 15 INSTALLATION Satellite-Mounted Rechargeable Battery Wand (If Applicable) NOTE: Refer to this section if your shade includes a satellite-mounted rechargeable battery wand. Install the Rechargeable Battery Mount Decide where you want to attach the rechargeable battery mount. This may be mounted ■...
- Page 16 INSTALLATION Insert the Battery Wand into the Rechargeable Battery Mount NOTE: The rechargeable battery wand ships fully charged so it is ready to install out of the package. Match the direction of the arrow on the underside of the battery wand with the arrow on ■...
- Page 17 INSTALLATION 18V DC Power Supply Power cable NOTE: When power is connected to the motor, a blue LED inside from shade motor the control button housing will flash to indicate the shade is ready for operation. Plug the power cable from the shade motor into the extension cable. ■...
- Page 18 INSTALLATION 18V DC Power Supply with Daisy-Chain Connections NOTE: The daisy-chain feature is only available with the 18V DC Power Supply option. Refer to this section if you have an 18V Power Supply with daisy-chain connections. The daisy-chain feature allows up to three PowerView Gen 3 automated shades to be ®...
-
Page 19: Test The Shade
INSTALLATION Test the Shade Use the control button to test the shade and ensure that the motor and power source are working correctly. Each press of the control button will initiate one of four shade movements, in sequential order. The control button can also be used in ■... -
Page 20: Operation
OPERATION Operate the Shade The shade can be operated using the control button or the PowerView Gen 3 remote. A single ® control is used to operate both the front shade and the back panel. Operation is sequential. The front shade must be fully lowered before the back panel can be lowered. Conversely, the back panel must be fully raised before the front shade can be raised. - Page 21 OPERATION Basic Operation Wake up the remote by picking it up or pressing ■ STOP. ■ Press group number(s) 1, 2, 3, 4, 5, and/or 6 to select one or more groups. Selected group ■ numbers light up white on the remote. Press selected group number(s) 1, 2, 3, 4, 5 and/or 6 a second time to deselect one or ■...
-
Page 22: Resetting The Shade (If Necessary)
Android smartphones and tablets. For ™ ® more information regarding setup and operation using the PowerView App, refer to https://help.hunterdouglas.com/s/powerview-gen-3-manuals. PowerView Gen 3 Gateway ® The PowerView Gen 3 Gateway is used to control shades in larger projects as well as ®... -
Page 23: Troubleshooting
TROUBLESHOOTING Troubleshooting If your shade is not operating correctly: Review the digital support guide for your control device. ■ Refer to the following troubleshooting procedures for specific solutions for your shade. ■ If questions remain, please contact Hunter Douglas Consumer Support at (800) 789-0331. Problem The shade will not snap into the installation brackets. - Page 24 TROUBLESHOOTING Problem Batteries in the battery wand need to be replaced. Solution Replace the batteries in the battery wand. Squeeze the cap latch to release the cap and remove the cap from the battery wand. Battery Wand Install the batteries according to the instructions on the battery wand label.
- Page 25 TROUBLESHOOTING Problem Rechargeable battery needs recharging There are two methods for charging the rechargeable battery wand — the Solution dual charging station or the single charger. CAUTION: The rechargeable battery wand can only be charged with these Hunter Douglas provided charging options. Attempting to charge battery wands with an alternative charger may result in permanent damage.
- Page 26 TROUBLESHOOTING Problem Rechargeable battery needs recharging (continued) Recharging Via the Single Charger Solution Remove the rechargeable battery wand from the mount, or insert the single charger cable without removing from the shading. Attach the plug adapter to the charger. ■ Attach the female end of the charging ■...
- Page 27 TROUBLESHOOTING Problem Rechargeable battery needs recharging (continued) Reinserting the Rechargeable Battery Wand into the Mount Solution Match the direction of the arrow on the underside of the battery wand ■ with the arrow on the battery mount. Insert the nose of the battery wand into the cavity of the battery mount. ■...
- Page 28 TROUBLESHOOTING Problem The bottom rail does not raise completely, or lower completely, or its location when fully lowered has migrated over time. Solution The batteries may be low in the battery wand, satellite battery pack, or C-size satellite battery wand. Replace the batteries. Refer to “Batteries in the battery wand need to be replaced”...
- Page 29 TROUBLESHOOTING Problem The shade raises or lowers unevenly, the bottom rail is not level when fully raised, or the fabric winds unevenly or starts to rub against one end of the headrail. Solution Check if the window is out-of-square by measuring the diagonals. Check that the installation brackets are level.
-
Page 30: Care
CARE Removing the Shade Fully raise both the front shade and back panel. ■ While holding the headrail, place the ■ Push blade of a small screwdriver on the installation bracket’s locking tab. Insert the screwdriver between the ➤ arrows on the bottom tabs. CAUTION: Be very careful not to tear Locking or damage the fabric. - Page 31 Allow the shade to dry in the completely lowered position. ■ Injection/Extraction Cleaning Vignette Modern Roman Shades can be cleaned by a professional using the injection/ extraction method of deep cleaning. CAUTION: Do not use the injection/extraction method of deep cleaning on the headrail or bottom rail fabric.
-
Page 32: Declarations
Hunter Douglas hereby declares that the PV33 is in compliance with the essential requirements and other relevant provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU and Radio Equipment Directive (RED) 2014/53/EU. A copy of the DoC can be obtained online: www.hunterdouglas.com/RFcertifications. -
Page 33: Child Safety
CHILD SAFETY... -
Page 34: Warranty
If you are not thoroughly satisfied, simply contact Hunter Douglas at (800) 789-0331 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
