HunterDouglas Luminette PowerView Quick Tips

Motorization

Advertisement

Quick Links

Luminette
Motorization Quick Tips

Installation

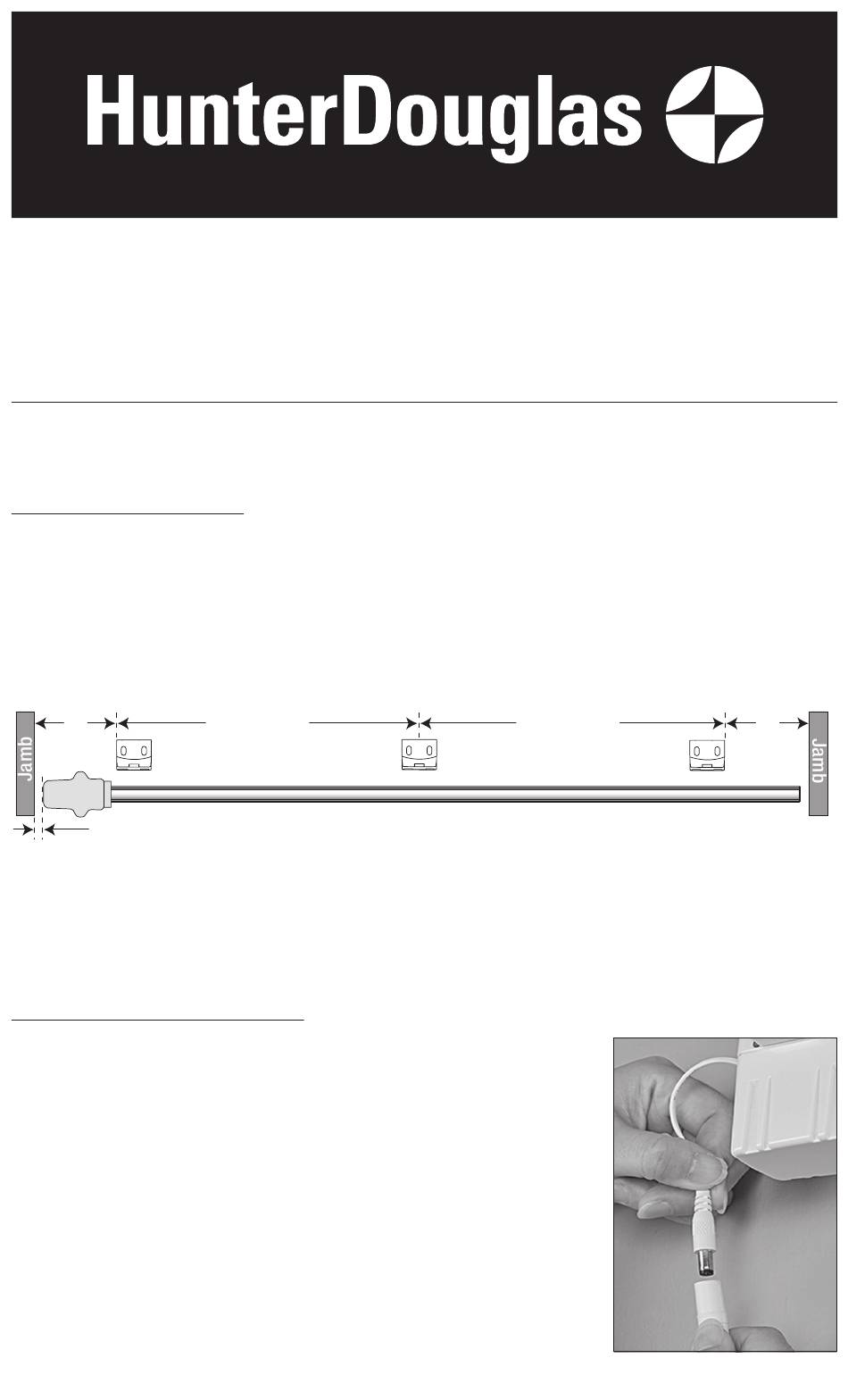

Mounting the Brackets

Mount the brackets 5" in from each jamb for inside/ceiling mount and 5" from the end of
the headrail for outside mount.
If more than two installation brackets are required, mount the additional bracket(s)
spaced evenly between the two end brackets.
5"
Bracket
Motor
/
" Gap Required
5
8
CAUTION: Installation brackets should be fastened into wood whenever possible. Use drywall
anchors when mounting into drywall. When attaching brackets into drywall, additional brackets
may be required to keep the headrail level after the fabric is attached.

Remove the Motor Assembly

Unplug the motor's power cable from the extension cable to the
DC power supply.
There are two methods for removing the motor shown on the
following page. Choose the one that works best for you.
Space Evenly
SofTrak
PowerView
®
Top View
Space Evenly
Headrail
5"
Power
Cable
Extension
Cable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Luminette PowerView and is the answer not in the manual?

Questions and answers

Hans
April 18, 2025

what components could require replacement in the drive assembly

1 comments:
Mr. Anderson
May 9, 2025

The motor assembly may need replacement in the drive assembly of the HunterDouglas Luminette PowerView. If reinstallation is required, the tilt gear inside the drive assembly should be checked and aligned, which may also need adjustment or replacement if misaligned.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for HunterDouglas Luminette PowerView

  • Page 1 Luminette PowerView ® ™ Motorization Quick Tips Installation Mounting the Brackets Mount the brackets 5" in from each jamb for inside/ceiling mount and 5" from the end of ■ the headrail for outside mount. If more than two installation brackets are required, mount the additional bracket(s) ➤...
  • Page 2 INSTALLATION Method 1: This method ■ works best when the fabric has been removed from the headrail. Insert the screwdriver into the slot on the drive Twist to Release assembly. Twist about one-fourth turn to release the spring-latch, and pull down gently on the motor assembly to separate.
  • Page 3 INSTALLATION Connect PowerView Components ™ Connect the Motor Assembly Align the pins with the holes in the drive assembly. Press the motor up into the drive ■ assembly until it clicks into place. IMPORTANT: If snapping the motor onto the drive assembly seems difficult, grasp the lead carrier and pull the carriers slightly away from the motor, as shown at right.
  • Page 4 INSTALLATION Connect the DC Power Supply NOTE: When power is connected to the motor, a green LED inside the manual control button housing will flash to indicate the sheer is ready for operation. Power Cable Plug the power cable from the motor into the ■...
  • Page 5 OPERATION Test Headrail Operation Use the manual control button on the motor to test the operation of the headrail, following ■ the sequence below. 1. Press and hold the manual control button for 6 seconds. The sheer will move slightly. 2.
  • Page 6 OPERATION Joining a Sheer to a Group IMPORTANT: The sheer will not operate using the remote until it has been joined to a group. 1. Press and hold ■ STOP for 4 seconds to put the remote in program mode. The lights on the remote will flash to indicate it is in program mode.
  • Page 7 PowerView App Operation The PowerView Hub is required for PowerView App operation. For information regarding setup and operation using the PowerView App, refer to the online PowerView App Software Guide at hunterdouglas.com/powerview/support. Resetting the Sheer Basic Reset The basic reset is used to set the sheer’s travel limits.
  • Page 8 © 2016 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners. 9/16 135103639...
