Summary of Contents for HunterDouglas Duolite Shades

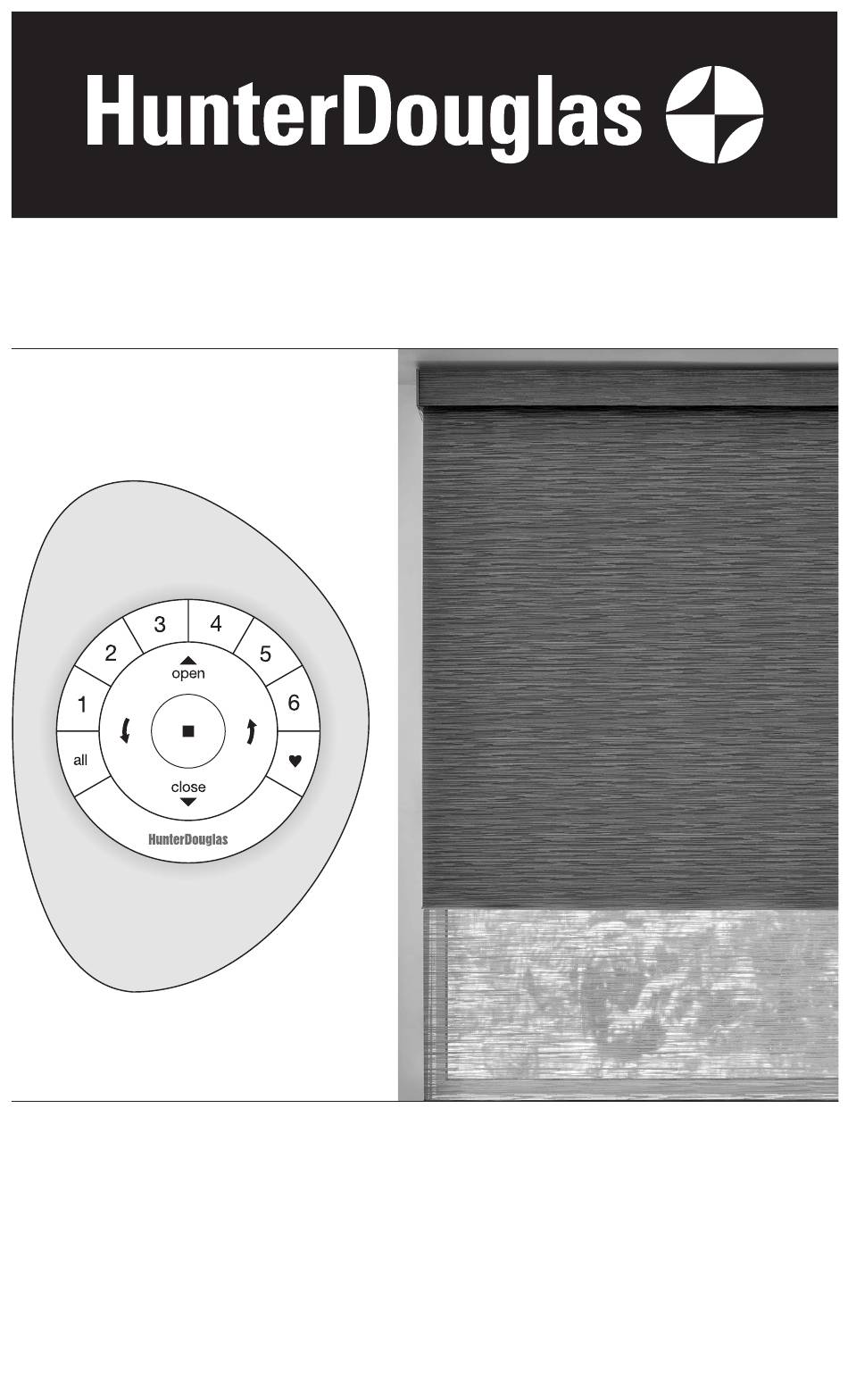

- Page 1 Installation Operation Care • • Designer Roller & Designer Screen Duolite Shades ® with PowerView Automation ®...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED Product View ................1 Tools and Fasteners Needed ..........2 INSTALLATION Installation Overview .............3 STEP 1 — Install the Brackets ..........3 STEP 2 — Install the Shade ..........6 STEP 3 — Connect the Power Source ........7 OPERATION Operate the Shade ...............11 Using the PowerView Remote ..........11 ®... -
Page 3: Product View
PRODUCT VIEW Product View Cassette Installation Brackets Headrail Front Decorative Shade Square Cassette Back Liner Shade Bottom Liner Bottom Rail End Caps Bottom Bar End... -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Designer Roller and Screen Duolite shades with ® PowerView Automation. With proper installation, operation, and care, your new shades will ® provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 5: Installation
INSTALLATION Installation Overview To install your shade, you will need to perform the following three steps: STEP 1: Install the brackets and attach additional components STEP 2: Install the shade STEP 3: Connect the power source STEP 1 — Install the Brackets The number of installation brackets required varies depending on the shade width, as ■... - Page 6 INSTALLATION Mount the Brackets — Inside Mount Mark 4" from each jamb for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤ evenly between the two end brackets and mark their location. Allow a minimum of 18"...
- Page 7 INSTALLATION Mount the Brackets — Outside Mount Center the cassette over the window opening at the desired height and mark the end of ■ the cassette. Mark 4" from each end of the cassette for the bracket location. ■ If more than two installation brackets came with your order, space additional ➤...
-
Page 8: Step 2 - Install The Shade
INSTALLATION STEP 2 — Install the Shade Attach the battery wand clip to the back of the cassette approximately 10" from the ■ motor side. Place the bottom of the clip into the lip, squeeze to compress the clip then rotate it up ➤... -
Page 9: Step 3 - Connect The Power Source
INSTALLATION STEP 3 — Connect the Power Source NOTE: When power is connected to the motor, a green LED inside the programming button housing will flash to indicate the shade is ready for operation. Refer to the appropriate page based on your order. ■... - Page 10 INSTALLATION If You Have a Satellite Battery Pack... Mount the Satellite Battery Pack Decide where you want to mount the bracket. A satellite ■ Bracket for the Satellite Battery Pack battery pack may be mounted in any orientation. Mark the screw holes. ■...
- Page 11 INSTALLATION If You Have a DC Power Supply... Connect the Power Supply Power Cable Plug the power cable from the shade into ■ from Shade the extension cable. Plug the other end of the extension cable ■ into the DC power supply. Wire Retainers Plug the DC power supply into a standard 15"...
- Page 12 INSTALLATION If You Have a DC Power Supply with Daisy-Chain Connections... The daisy-chain feature allows up to three PowerView Automated shades to be powered ® by a single DC power supply. However, each shade has its own RF receiver and can operate independently.
-
Page 13: Operation
OPERATION Operate the Shade Testing the Shade Testing the shade with the programming button will allow you to ensure the motor and power source are working correctly. If the shade does not operate, see “Troubleshooting” on page 15. Press and release the programming button (located on the ■... - Page 14 OPERATION Joining a Shade to a Group IMPORTANT: The shade will not operate using the remote until it has been joined to a group. 1. Press and hold ■ STOP on the remote until the indicator lights blink (approximately 6 seconds).
-
Page 15: Resetting The Shade (If Necessary)
PowerView Scene Controller For information regarding operation and programming of the PowerView Scene Controller, refer to your PowerView Automation Scene Controller Guide or to the online PowerView Step-by-Step Guide at hunterdouglas.com/operating-systems/motorized/powerview-motorization/ manuals. PowerView App Operation The PowerView Hub is required for PowerView App operation. For information regarding setup and operation using the PowerView App, refer to the online PowerView Step-by-Step Guide at hunterdouglas.com/operating-systems/motorized/powerview-motorization/manuals. -
Page 16: Back Panel Lower Limit Adjustment
OPERATION Back Panel Lower Limit Adjustment NOTE: Only the back panel can be adjusted. The front shade cannot be adjusted. The lower limit can only be adjusted up and cannot go lower than factory limit. Press the group button that shade has been joined to. ■... -
Page 17: Troubleshooting
OPERATION Troubleshooting If your shade is not operating correctly: First review the guide that came with your control device. ■ Refer to the following troubleshooting procedures below for the specific solutions for ■ your shade. If questions remain, please contact the Hunter Douglas Consumer Support at 1-888-501-8364. Problem The shade will not fit into the installation brackets. - Page 18 Lower Limit Adjustment” on page 14. For information regarding operation and programming of the PowerView remote, refer to your PowerView Automation Remote Control Guide or to the online PowerView Step-by-Step Guide at hunterdouglas.com/ operatingsystems/motorized/powerview-motorization/manuals. Problem The shade operation is slow.
-
Page 19: Removing The Shade
CARE Removing the Shade CAUTION: Before removing the shade, the shade should be fully raised. Disconnect power and make sure cables are not caught ■ before attempting to removing shade. Insert the tip of a flat blade screwdriver into the screwdriver ■... -
Page 20: Declarations
DECLARATIONS U.S. Radio Frequency FCC Compliance FCC ID information is located behind the motor-side headrail end cap. The end cap may be removed to view this information. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 21 Piekstraat 2, 3071 EL Rotterdam, The Netherlands certify and declare under our sole responsibility that assemblies PV4 conform with the essential requirements of the EMC directive 2004/108/EC and R&TTE directive 1999/5/EC. A copy of the original declaration of conformity may be found at: www.hunterdouglas.com/RFcertifications.
- Page 22 Notes...
- Page 24 If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
