2.3.3 Confirm that the Paging Server is Up and Running

The indicator lights on the front of the Paging Server verify the unit's operations.
RTFM switch

2.3.3.1 Confirm Power on, Network Connectivity, and Baud Rate

When you plug in the Ethernet cable or power supply:
The round, pale blue Status light on the front of the Paging Server comes on indicating that the
●
power is on. Once the device has been initialized, this light blinks at one second intervals.
The square, green Link light above the Ethernet port indicates that the network connection has
●
been established. The Link light changes color to confirm the auto-negotiated baud rate:
•
•
The dark blue Paging light comes on after the device is booted and initialized. This light blinks
●
when a page is in progress.

2.3.3.2 Verify Network Activity

The square, yellow Act light blinks when there is network activity.
VoIP Paging Server Operations Guide

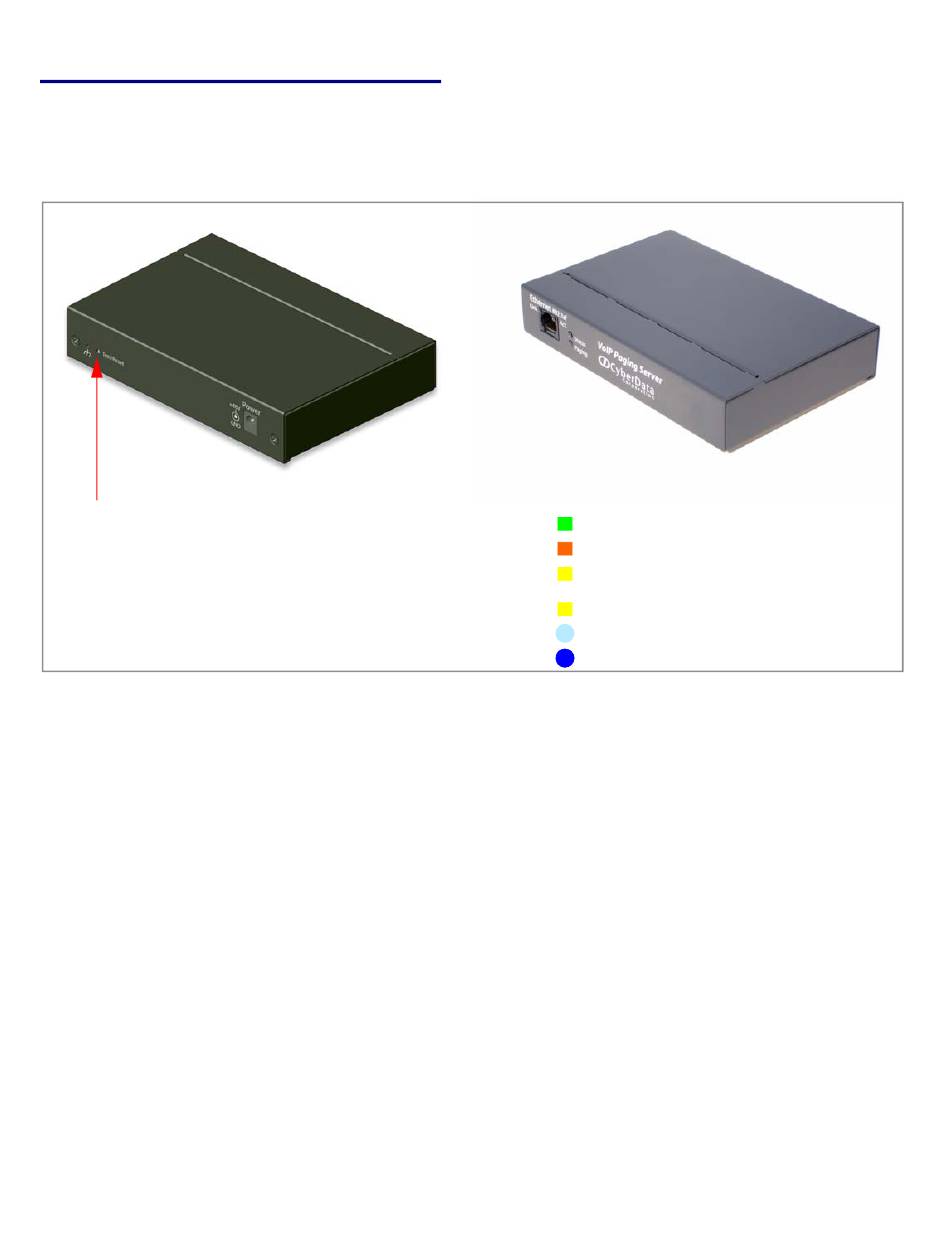

Figure 2-4. Paging Server Indicator Lights
This light is yellow at 10 Mbps.
It is orange at 100 Mbps.
930132F
Link On when network connection is established
Orange when baud rate = 100Mbps
Yellow when baud rate = 10Mbps
Act. Blinks to indicate network activity
Status
Blinks when unit is up and running
Paging
Blinks when unit is paging
