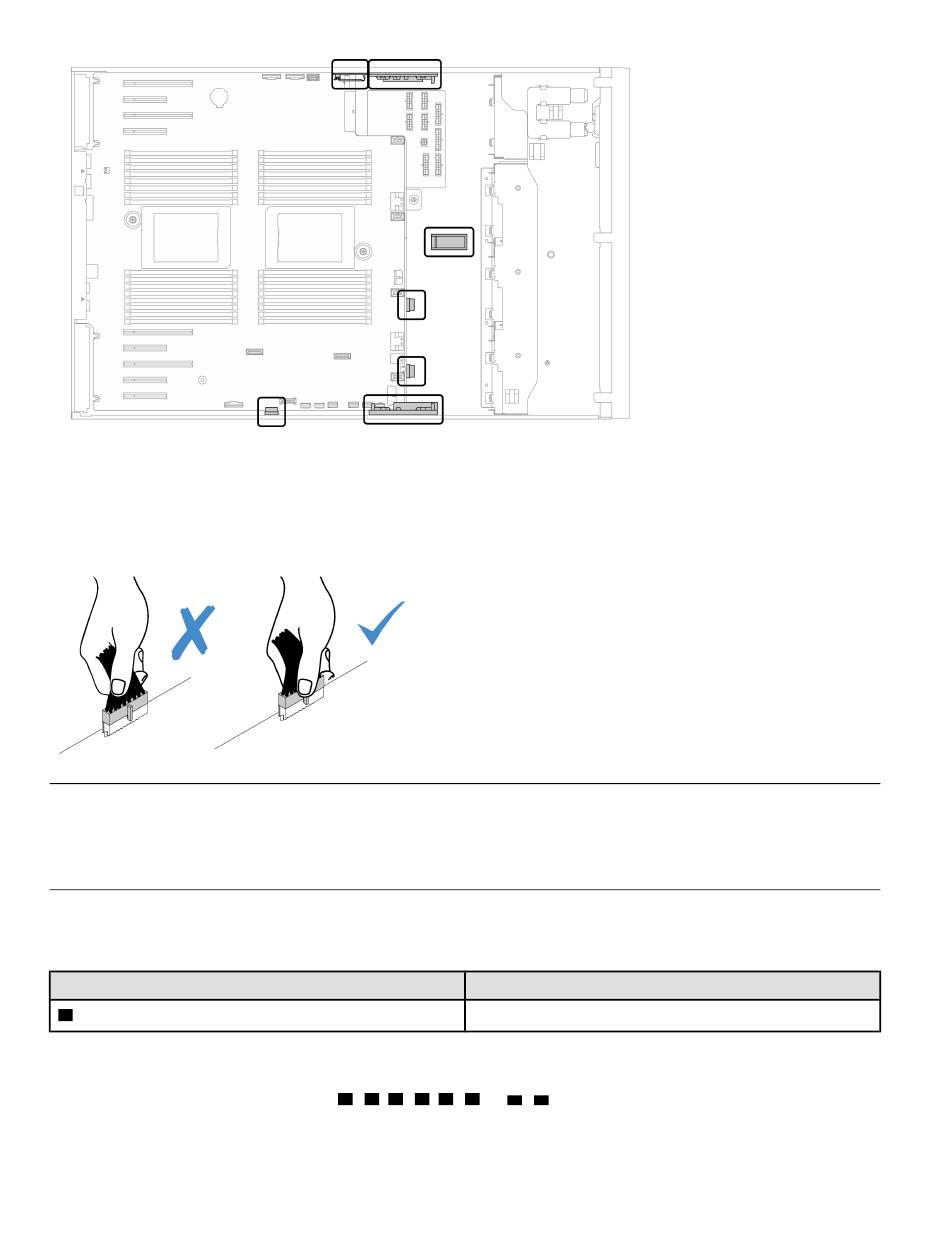

Figure 23. Cable clips and guides on 3.5-inch chassis
Note: Disengage all latches, release tabs, or locks on cable connectors when you disconnect cables from
the system board. Failing to release them before removing the cables will damage the cable sockets on the
system board, which are fragile. Any damage to the cable sockets might require replacing the system board.

Backplane and backplate cable routing

For more information about the backplane and backplate cable routing, see ThinkSystem ST650 V2
Backplane/Backplate Cable Routing Guide.

Front panel cable routing

Use the section to understand the cable routing for the front panel.
From
Rear of front panel
1
Notes:
• Connections between connectors;
• When routing the cables, ensure that all cables are routed appropriately through the cable guides and
cable clips.
ThinkSystem ST650 V2 Maintenance Manual
48
To
System board: Operator-information-panel connector
↔ ↔ ↔
, , , ...
1 1 2 2 3 3 n
↔
n
