Pylontech PowerCube-M1-C Operation Manual page 18

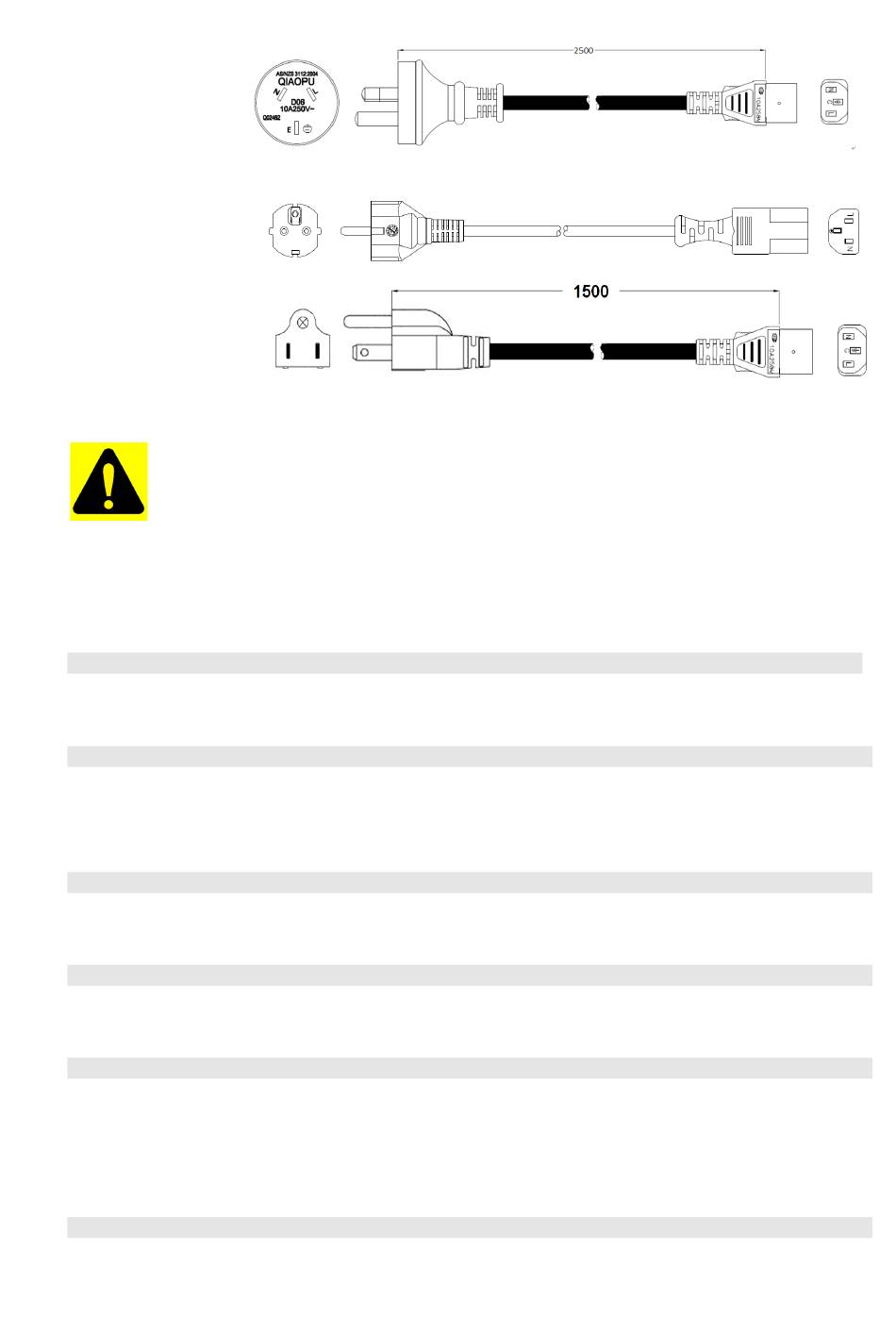

Australia Standard
Or
Europe Standard
Or
USA Standard
Caution: It shall be installed an AC breaker outside for AC short-circuit protection. The
specifications of the breaker shall meet the system's parameters. System parameters
refer to the system parameters table (chapter 2.2.1)
Attention: il doit être installé un disjoncteur CA à l'extérieur pour la protection contre les courts-
circuits CA.
Power Switch
To control the BMS power supply ON/OFF
Isolating Switch
To control the high voltage DC power output ON/OFF during the Control Module Power
Switch ON.
Dry Contact
Dry Contact Terminal: provided 2 input and 4 output dry contact signal.
Reset
Reset Button: Long press this button to restart the battery system.
ADD
ADD: 6 bit dial switches to manually distribute the communication address of the battery
system. Nether position is OFF, means "0". Upper position is ON, means "1". 1
address, and the 6
CAN / RS485
bit dial switch support a 120Ω resistance.
th
13
bit to 5 bit is for
st th
