PowerCube-M1-C est un système CC à haute tension, opéré uniquement par le
personnel qualifié et autorisé.

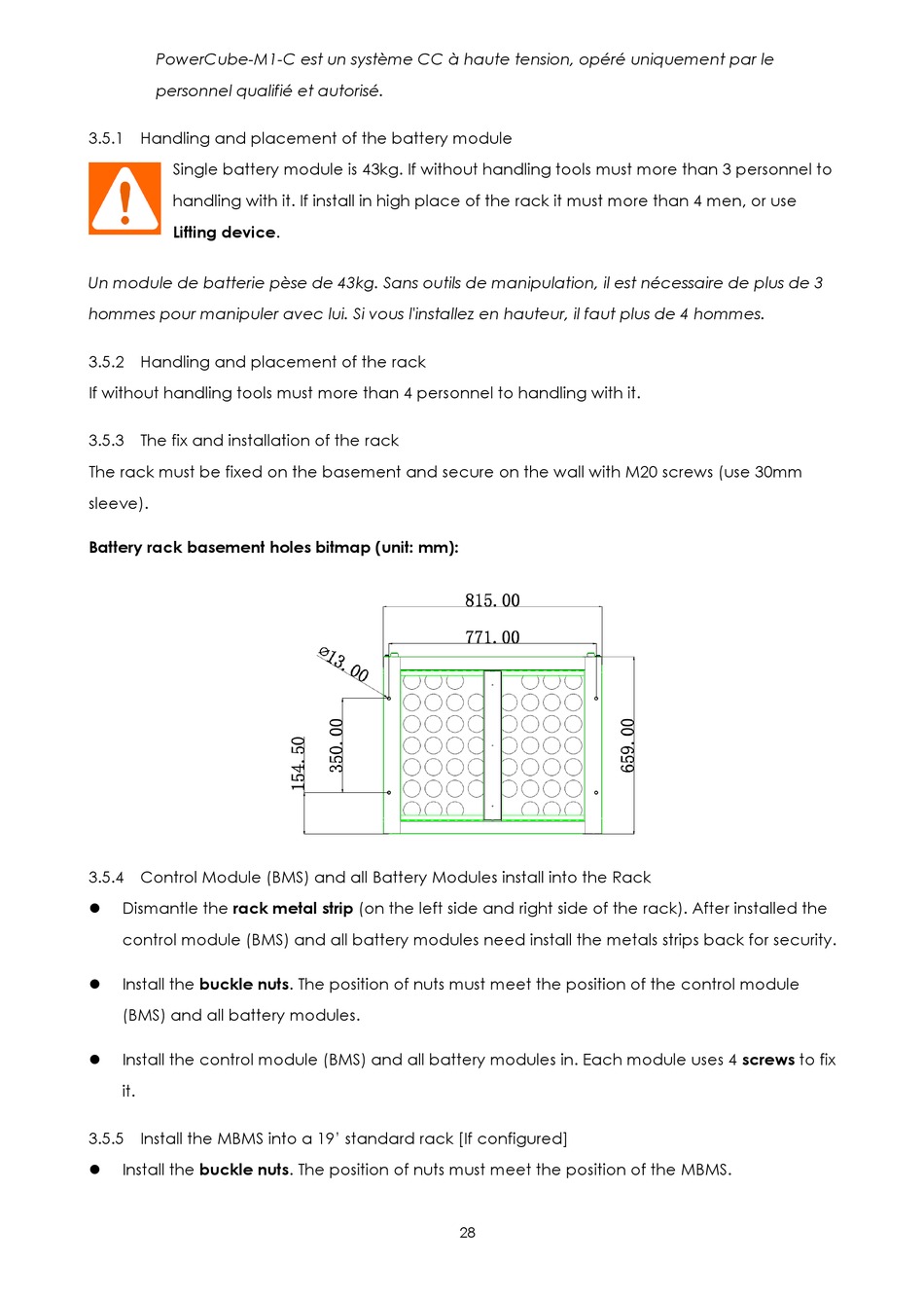

3.5.1 Handling and placement of the battery module

Single battery module is 43kg. If without handling tools must more than 3 personnel to
handling with it. If install in high place of the rack it must more than 4 men, or use
Lifting device.
Un module de batterie pèse de 43kg. Sans outils de manipulation, il est nécessaire de plus de 3
hommes pour manipuler avec lui. Si vous l'installez en hauteur, il faut plus de 4 hommes.

3.5.2 Handling and placement of the rack

If without handling tools must more than 4 personnel to handling with it.

3.5.3 The fix and installation of the rack

The rack must be fixed on the basement and secure on the wall with M20 screws (use 30mm
sleeve).
Battery rack basement holes bitmap (unit: mm):
3.5.4 Control Module (BMS) and all Battery Modules install into the Rack
Dismantle the rack metal strip (on the left side and right side of the rack). After installed the
⚫
control module (BMS) and all battery modules need install the metals strips back for security.
Install the buckle nuts. The position of nuts must meet the position of the control module
⚫
(BMS) and all battery modules.
Install the control module (BMS) and all battery modules in. Each module uses 4 screws to fix
⚫
it.
3.5.5 Install the MBMS into a 19' standard rack [If configured]
Install the buckle nuts. The position of nuts must meet the position of the MBMS.
⚫
28
