Understanding the Touch Panel Indicators
Call connection bars
Your IP address
DTMF touch pad icons
Name of the far-end site
Audio level bar
Far End Muted icon
Content Sharing icon
Encryption icon
Current time
When you are in a call, the Touch Panel Home screen displays information you
may need during the call.
Figure 2-4

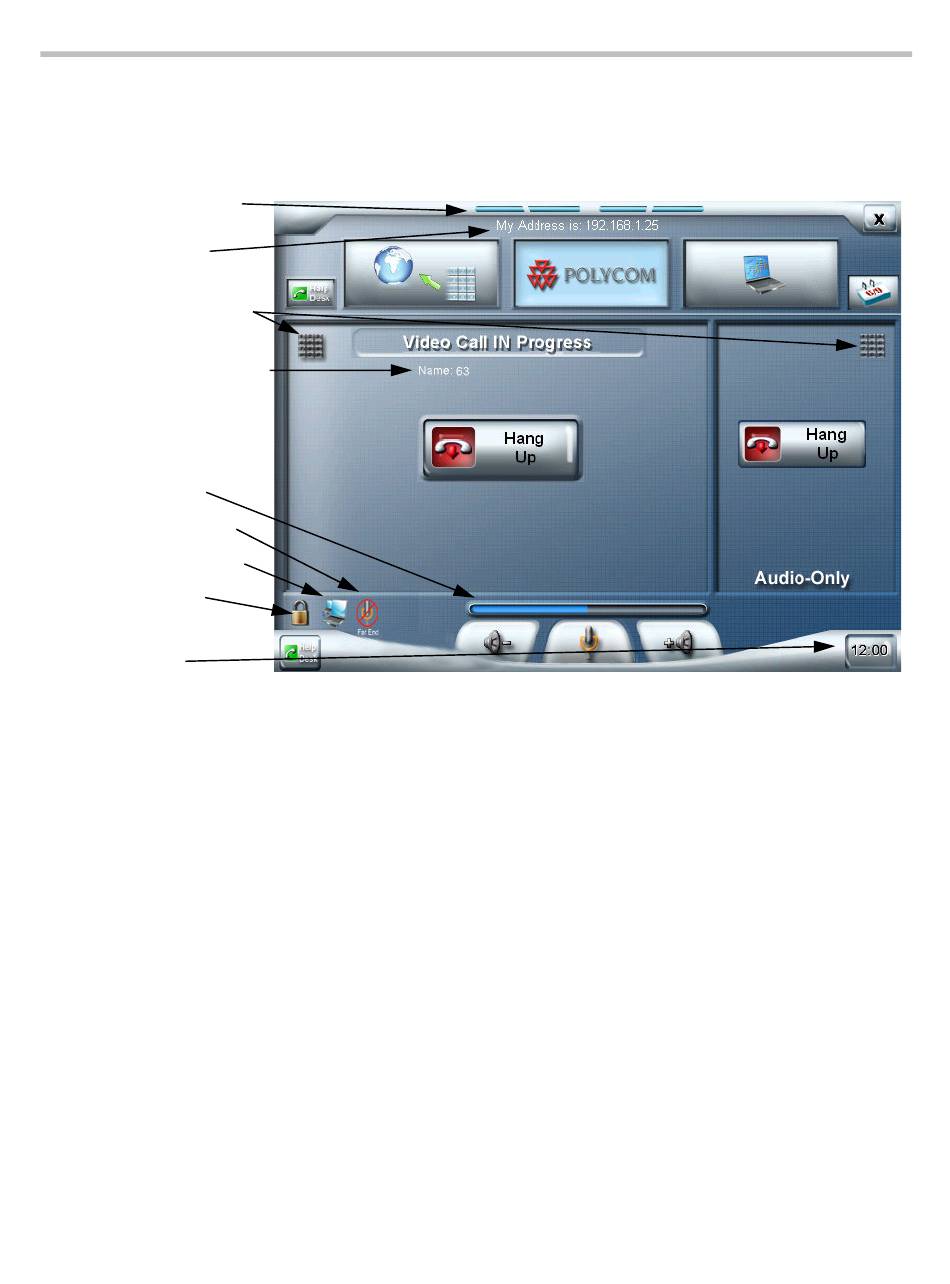

This is what you can expect to see on the Home screen when you are in a call:
•
Call connection bars at the top of the screen light up to show you that you
are connected to another video conferencing system:
For the RPX HD 400 Series:
— All four indicators light up when you are connected to another
Polycom RPX HD 400 Series.
— The three indicators on the right light up when you are connected to a
Polycom OTX 300, TPX HD 306M, or ATX 300.
— The two center indicators light up when you are connected to a
Polycom RPX HD 200 Series or a TPX HD 204M.
— Only the center right indicator lights up when you are connected to a
traditional (standalone) video conferencing system.
Home Screen — Enhanced UI (In a Call)
Using the Touch Panel
2–5
