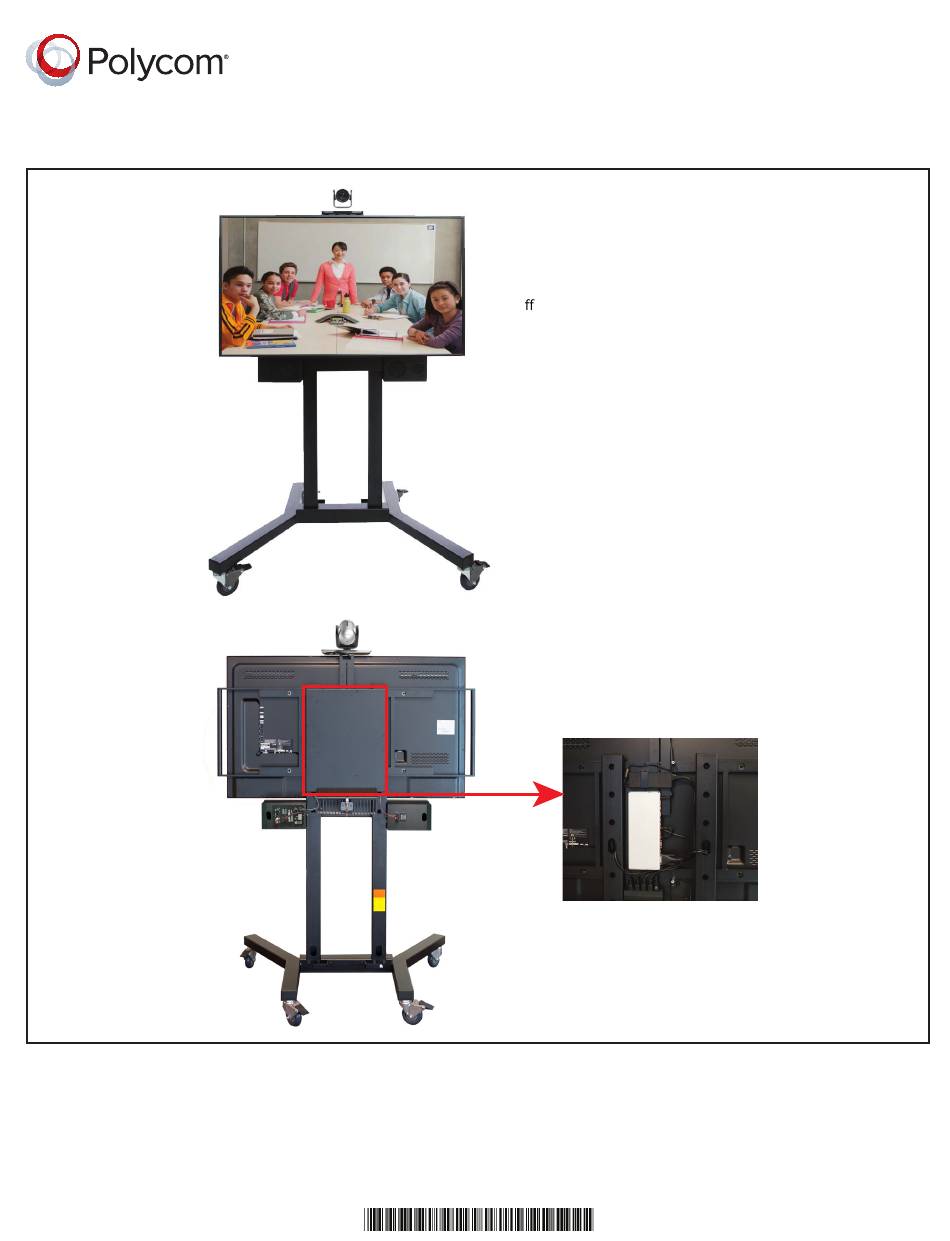

EduCart
500
®
TM
EagleEye IV Camera
Speakers
Poles
Base with
Locking Wheels
H Frame
Back
Cover
Basket
www.polycom.com
Polycom, Inc.
6001 America Center Drive
San Jose, CA 95002, USA
1725-08449-001C
Flat Screen Display
Note that your display may
look di erent than the display
shown in this document.
"Grab"
Handles
Power Bar
SETUP SHEET
RealPresence
Group 500
Codec
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Polycom RealPresence EduCart 500
Summary of Contents for Polycom RealPresence EduCart 500
- Page 1 Polycom, Inc. and are registered and/or common law marks in the United States and various other countries. No portion hereof may be reproduced or transmitted in any form or by any means, for any purpose other than the recipient’s personal use, without the express written permission of Polycom.
- Page 2 Remove the basket and basket bracket from the Attach the codec to the H frame with the H frame by removing the two screws circled in M3 x 8 Phillips pan head screws. red. Polycom® RealPresence® EduCart 500 Setup Sheet...
- Page 3 If the packaging interferes, either cut the foam or lift the display out. If this system is not used with a Polycom- supplied display, the display used must have VESA 400 mm x 400 mm or 400 mm x 600 mm...
- Page 4 1-2”. Replace the screws and tighten. Use the same hole in the series of holes on both sides. These handles will be used to move the cart. Polycom® RealPresence® EduCart 500 Setup Sheet...
- Page 5 Attach the storage basket to the bottom of the H bracket under the power bar using the two screws removed in step 2. Connect the speaker wires. Refer to the wiring diagram at the end of this document for details. Polycom® RealPresence® EduCart 500 Setup Sheet...
- Page 6 Loosen the two screws on the camera bracket and lower the camera shelf to the top of the display. Tighten the screws. Route the camera cable behind the camera bracket and through the hole. Polycom® RealPresence® EduCart 500 Setup Sheet...
- Page 7 Always apply the liquid first to a static-free cloth. For further information concerning the individual components of this equipment, please refer to the respective product literature. For support or service, please contact your Polycom® distributor or go to Polycom Support at www.polycom.com/support. Child Safety Warnings: ...
- Page 8 EduCart 500 Wiring Diagram Polycom® RealPresence® EduCart 500 Setup Sheet...
