Johnson Controls METASYS User Manual page 13

NCM
Modem
NT
(backside)
Remote Remote
NT NT
5-slot NEU
Jack Jack
Fig3

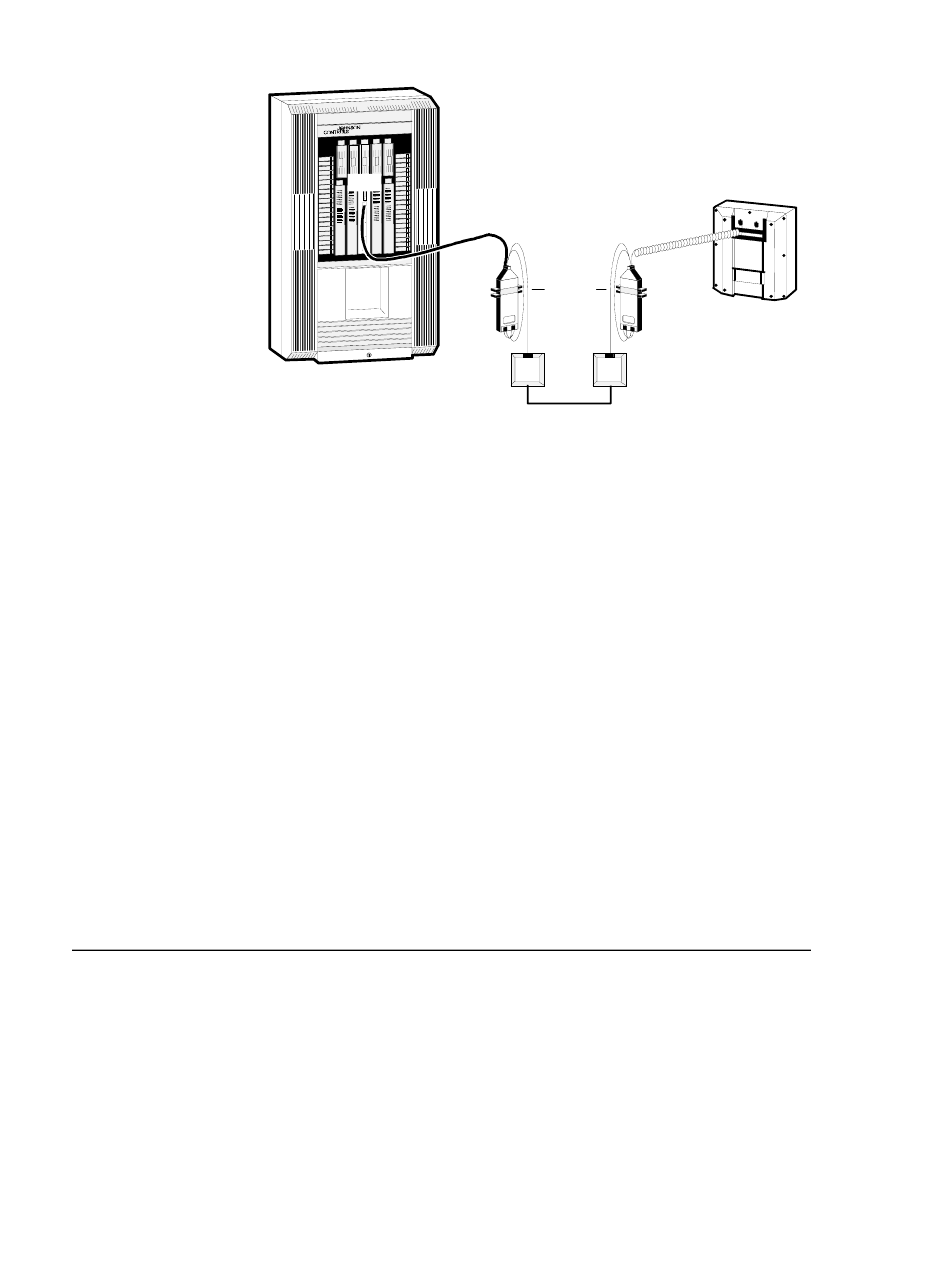

Figure 5: Remote Network Terminal Connection
When first connected to the NCM, the NT briefly displays a copyright
screen. Then it displays the Log Off screen showing the current period
(Alternate, Regular, or Holiday), the day, date, and time. The only option
available on the Log Off screen is LOG ON.
When no one is logged on to the NT, the Log Off screen may display a
Hold Summary of up to six HOLD objects per NCM with current data
and status. The screen summary refreshes every 20 seconds. You cannot
select the objects on this screen. Refer to Requesting Information for
details on assigning objects to the Hold Summary.
The figure below is a typical Log Off screen. The object summaries
displayed on this screen vary according to your system.
Network Terminal User's Manual 13
