Johnson Controls FlexSys MIT3-CN Installation & Operation Manual

FlexSys
Model:
TOOLS REQUIRED:
1. Power Screwdriver
• Phillips #3 Bit - floor panel screws
• Phillips #2 Bit - grille trim ring screws
2. Panel Lifter (Suction Cups) - remove floor panel
3. Jigsaw - cut opening in floor panel (if panels are not pre-cut)
4. Carpet Knife - cut opening in carpet tile / floor covering
MATERIALS REQUIRED:
1. MIT3-CN Underfloor Air Distribution Terminal
2. Plug & Play Cable (PAP-1)
3. #8 – 32 x 1-1/2" (38.1mm) Self-Drilling/Tapping Sheet Metal
Screws (1-1/2" screws work in most applications; using other
screws could void warranty)
PREPARATION:
1. Verify that MIT3-CN is the correct model, unit count and
location(s) per scheduled placement.
2. Remove floor covering (carpet tile) / floor panel at desired
location(s) (if installed).
3. Verify that all adjacent floor panels are properly installed.
INSTALLATION:
IMPORTANT: It is HIGHLY RECOMMENDED by the
!
manufacturer that each zone be checked for faulty
CAUTION
or improper wiring DURING INSTALLATION. Each
zone should be tested thorougly for full connectivity
before proceeding with installation of the next
zone. The manufacturer cannot be responsible for
any improper installation as a result of failure to
follow this procedure as outlined in the FlexSys
Connectivity Testing Procedures.
The MIT3-CN is designed to be installed into a floor panel that
has been removed from the floor. The completed assembly is
then installed back into the floor and connected to a designated
VAV operational zone with Plug & Play Cables.
If the floor panel / carpet tile was installed with a 10-1/2" x 5-1/2"
[+1/8"/-0"] (267mm x 140mm [+3.175/-.00]) rectangle hole pre-cut,
skip to Step 2. If the unit is being added to an existing installation,
begin with Step 1.
REFER TO PAGE 2 FOR ADDITIONAL INFORMATION:
INSTALLATION / OPERATION / MAINTENANCE / PARTS
©2016 Johnson Controls | The performance specifications are nominal and conform to acceptable industry standards. For applications at conditions beyond these specifications, consult the local
Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.
Underfloor Air Terminal (Variable Volume)
Installation / Operation Manual
MIT3 - CN
1

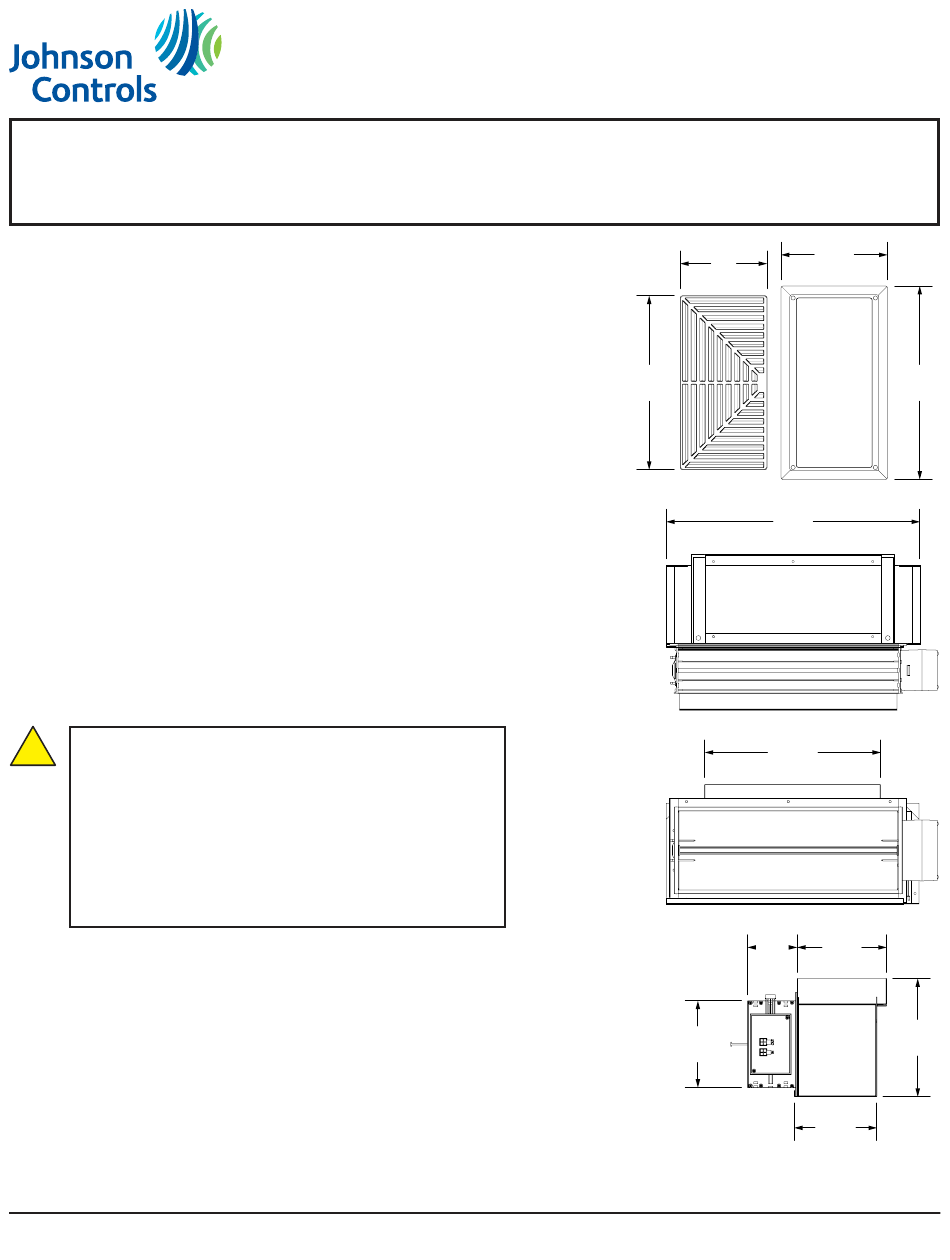

5"
127mm
10"
254mm
15"
381mm
10.4"
264mm
3"
79mm
5.3"
133mm
ALL DIMENSIONS NOMINAL +/- 0.1" (2.5mm)
V160803
6.4"
162mm
11.4"
289mm
5.4"
137mm
7"
143mm
4.8"
121mm
© 2016 AirFixture, LLC
