Johnson Controls FlexSys Elan-06R-180 Installation & Operation Manual

Underfloor Air Terminal (Constant Volume)
FlexSys
Model:

TOOLS REQUIRED:

1. Power Screwdriver (low torque setting)
• Phillips #3 Bit - floor panel screws
• Allen-Head Bit (5/32" / 4mm) - retention bar center screw
2. Panel Lifter (suction cups) - remove floor panels
3. Jigsaw - cut opening in floor panel (if panels are not pre-cut)
4. Carpet Knife - cut opening in carpet tile / floor covering

MATERIALS REQUIRED:

1. Élan-06R-180 Underfloor Air Terminal

PREPARATION:

1. Verify that the Élan-06R-180 is the correct model, unit count
and location(s) per scheduled placement.
2. Remove the floor covering / floor panel at the desired
location(s) (if installed).
3. Verify that all adjacent floor panels are properly installed.

INSTALLATION:

The Élan-06R-180 is designed for drop-in installation in a floor
panel. If the floor panel was installed with a 6"Ø [+1/8"/-0"]
(152mm [+3.175/-.00]) round hole pre-cut, skip to Step 2. If the
unit is being added to an existing installation, begin with Step 1.
IMPORTANT: When adjusting the center screw to loosen
or tighten the retention bar, a power screw driver on a LOW
TORQUE SETTING is recommended. Overtightening can
warp the sliding damper plate, resulting in the inability to
adjust air flow. Take care to avoid slippage of the driver bit;
this may result in scratch damage to the diffuser grille.
1. Remove the floor panel and cut a 6"Ø [+1/8"/-0"]
(152mm [+3.175/-.00]) round opening for the Élan terminal.
Cut opening in carpet tile using same dimensions / position.
Replace floor panel / carpet tile when finished.
NOTE: Floor panels with pre-cut openings may be
supplied by flooring manufacturer.
2. Verify that there is enough clearance between the retention
bar and diffuser grille to allow the collapsable arms to fold in
and clear the edge of the opening. If there is not enough
clearance, turn the center screw counter-clockwise to lower
the retention bar.
3. Insert the Élan terminal into the opening in the floor panel.
The collapsable arms of the retention bar should fold back
out to their default position once the opening is cleared.
©2016 Johnson Controls | The performance specifications are nominal and conform to acceptable industry standards. For applications at conditions beyond these specifications, consult the local
Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.
Installation / Operation Manual
Élan - 06R - 180
1

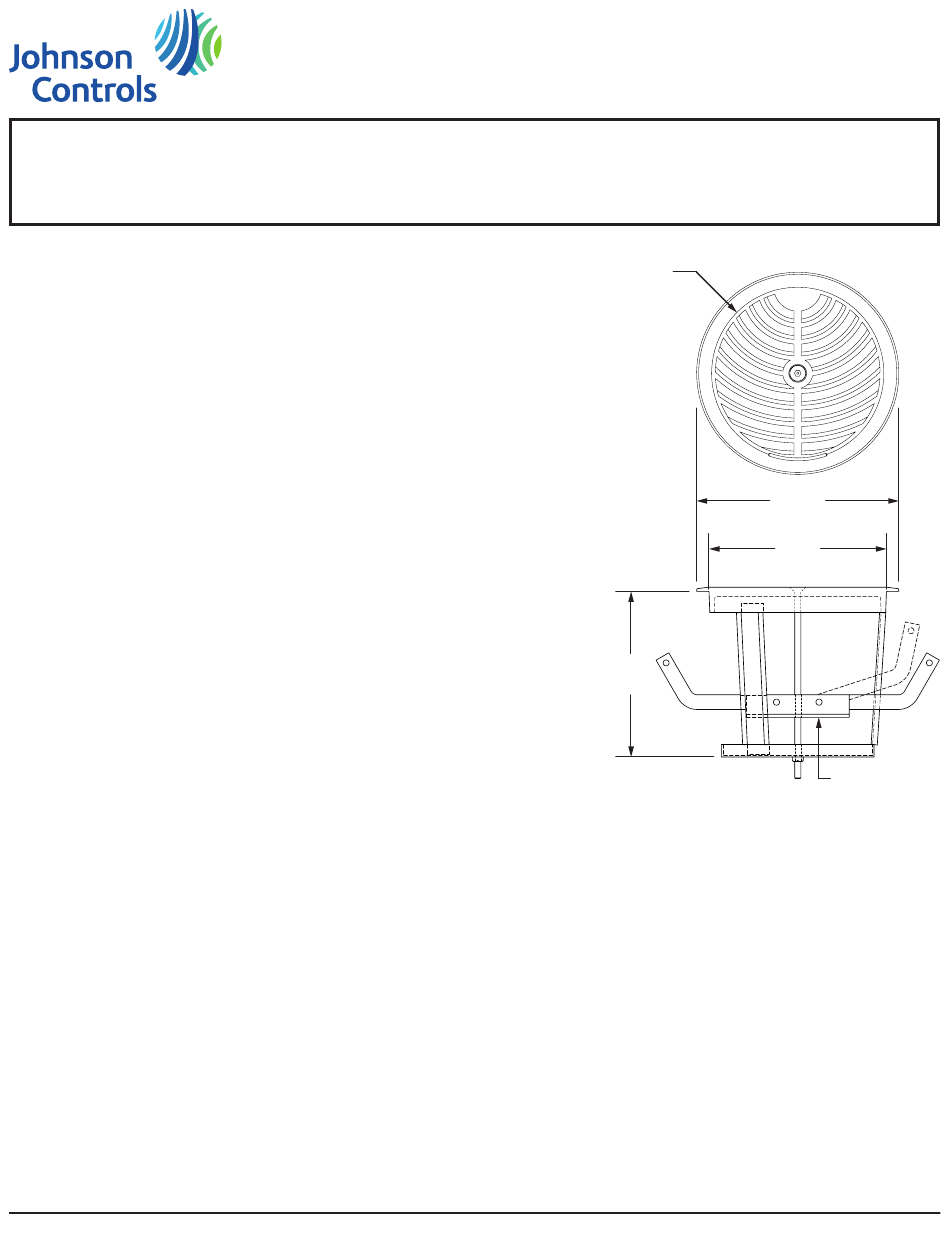

6"Ø
152mm
5"
127mm
ALL DIMENSIONS NOMINAL +/- 0.1" (2.5mm)
4. To secure the Élan terminal in place, tighten the
retention bar to the underside of the floor panel
by turning the center screw clockwise.
5. For protection of the grille's finish during
construction, a Grille Cover is recommended.
REFER TO PAGE 2 FOR ADDITIONAL INFORMATION:
Operation / MAINTENANCE / PARTS
V160829
6.75"
171mm
5.8"
147mm
COLLAPSABLE
RETENTION BAR
