090.040-CS (JAN 14)
Page 6
operation and performance that result in property damage,
personal injury or death. It is the responsibility of the user/
owner to evaluate and assess the consequences of their ac-
tions prior to modifying the controls for this unit.
INTRODUCTION TO THE QUANTUM™ HD
QUANTUM™ DESCRIPTION
The Quantum™ HD control panel consists of a physi-
cal hardware platform which incorporates the Q5
main processor board as well as an interface board.
The purpose of the Interface board is to allow the end
user to make external communications connections
to the Q5 processor. Additionally, analog and digital
signals are handled through discrete interconnected
Analog and Digital boards. A 15 inch color LED graph-
ic display, touch screen interface and physical keypad

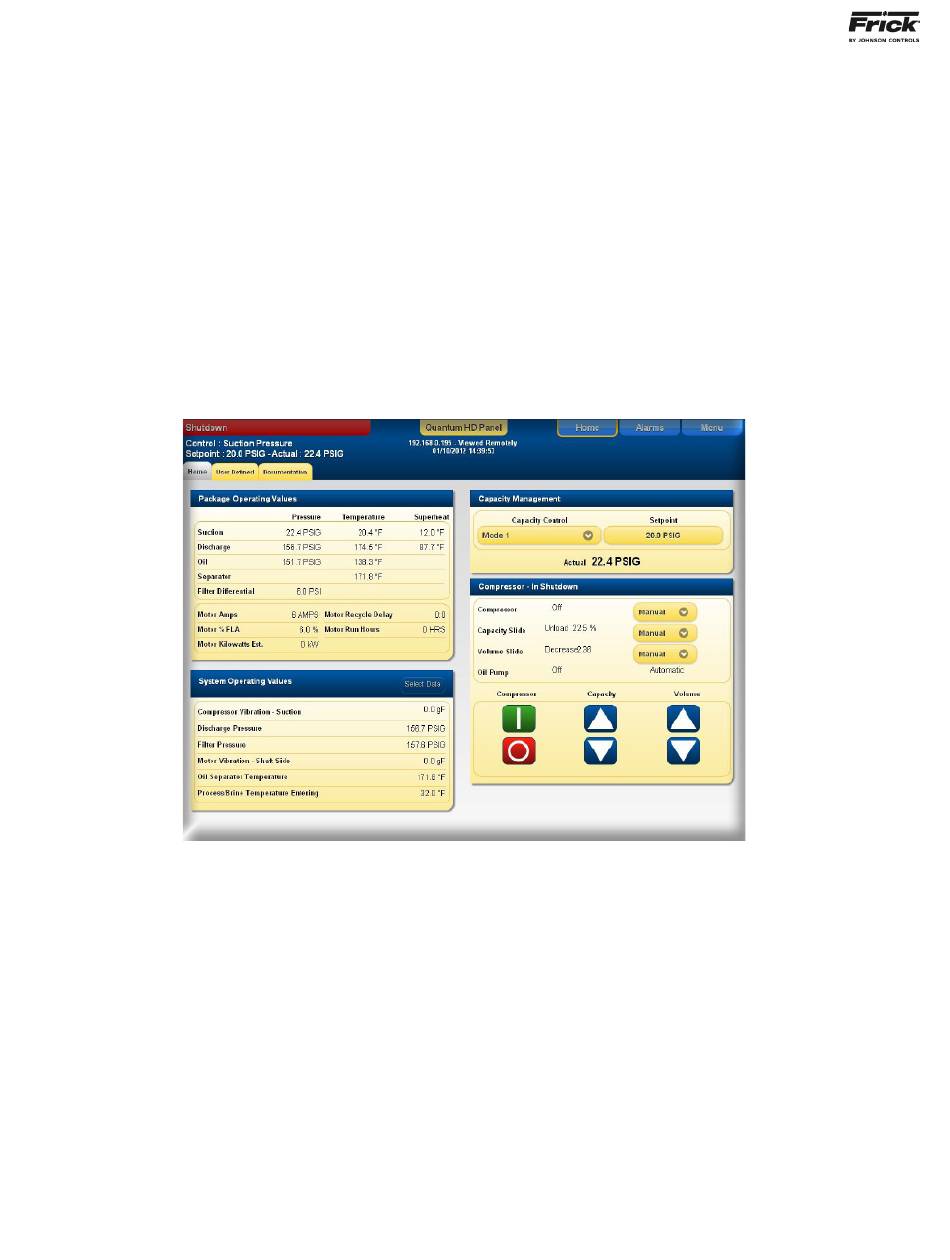

This is called the Home screen. Be aware that the content of this screen may differ from situation to situation, based upon the
actual configuration and installed options.
The Operating (or Home) screen

HOW TO USE THIS MANUAL

The purpose of this manual is provide the necessary
information (protocols, data registers, wiring, etc.) to
allow the end user to reliably communicate with the
Quantum™ HD via various communications methods
(to be described later) for the purpose of obtaining
and sending data and/or for compressor control.
The Quantum™ HD does NOT begin any communica-
QUANTUM™ HD COMPRESSOR CONTROL PANEL
COMMUNICATIONS SETUP
allows for data accessing and viewing.
The Quantum™ HD software is based on a Web
Browser format, and has the capability of commu-
nication through both Ethernet and Serial Ethernet
protocols.
The Quantum™ HD Compressor interface may be ac-
cessed using the latest versions of several tested and
approved web browsers:
• Google Chrome
• Mozilla Firefox
The following screen is representative of what the
operator will see after the unit has been powered up.
tions conversations on its own, it only responds to
queries (requests) from external devices.
For Ethernet communications, refer to the section
entitled Ethernet and Networking. Ethernet does not
require any jumpers to be installed.
For information on software protocols, refer to Sec-
tions 2, 3 and 4.
To access specific data within the Quantum™ HD, re-
fer to Section 6 (Data Tables).
For serial communications connections, refer to Sec-
