Johnson Controls S1-TTSCC01 Technical Manual

TECHNICAL
TECHNICAL
GUIDE
GUIDE

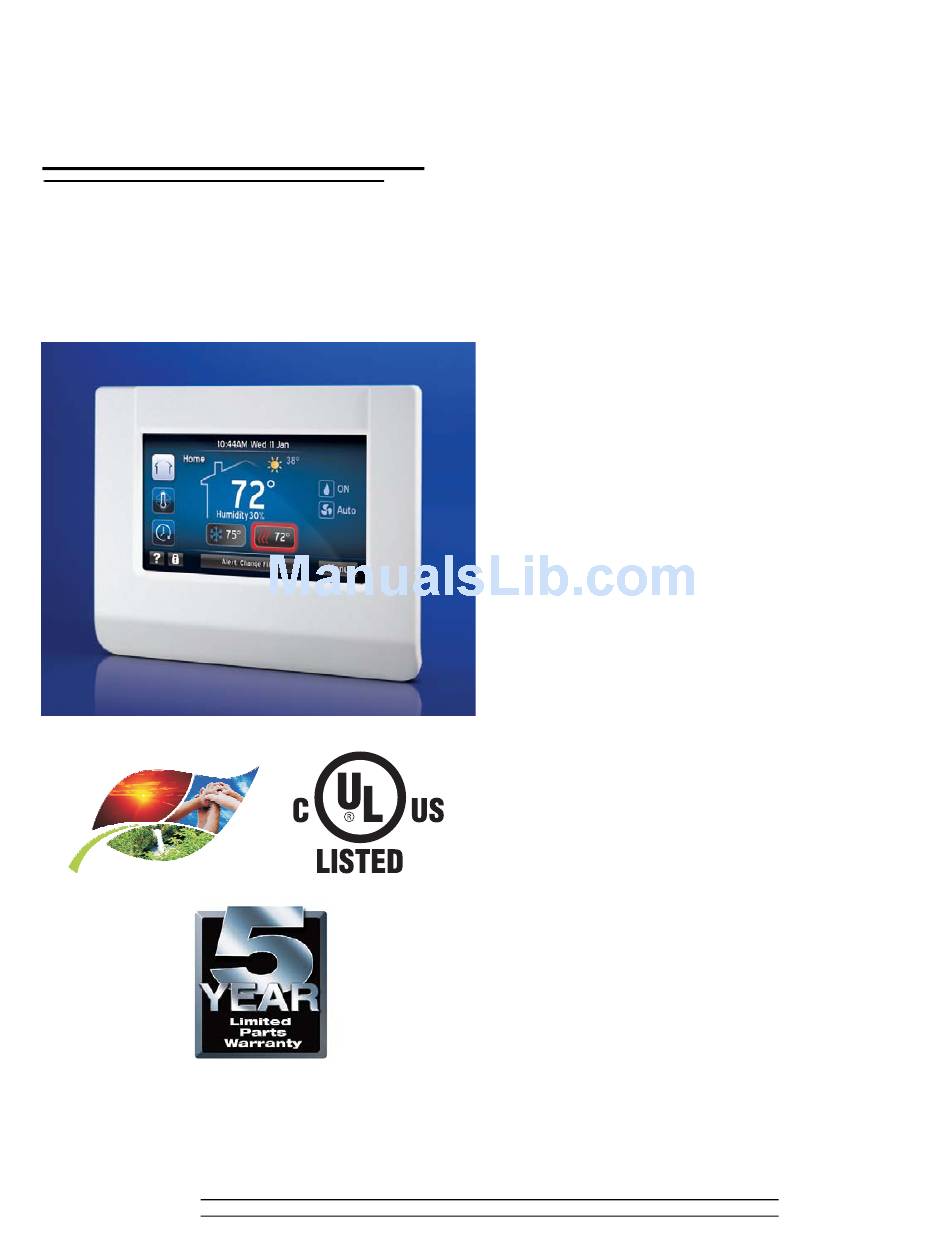

TOUCH SCREEN
COMMUNICATING CONTROL
MODEL: S1-TTSCC01
Energy Saver
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
Johnson Controls, Unitary Products specializes in creating a
customized home comfort system tailored to the homeowner's
needs with our broad selection of residential heating and cool-
ing products. The Communicating Control System is the ulti-
mate control center for all of your system components. When
you add a Touch Screen Communicating Control to a compati-
ble modulating variable-speed furnace or air handler, and a pre-
mium air-conditioner or heat pump, you'll enjoy longer heating
and cooling cycles at lower fan speeds for a more consistent
temperature throughout your home, better humidity control, as
well as a more energy-efficient comfort system.
WARRANTY
Standard 5-year limited parts warranty.
FEATURES & BENEFITS

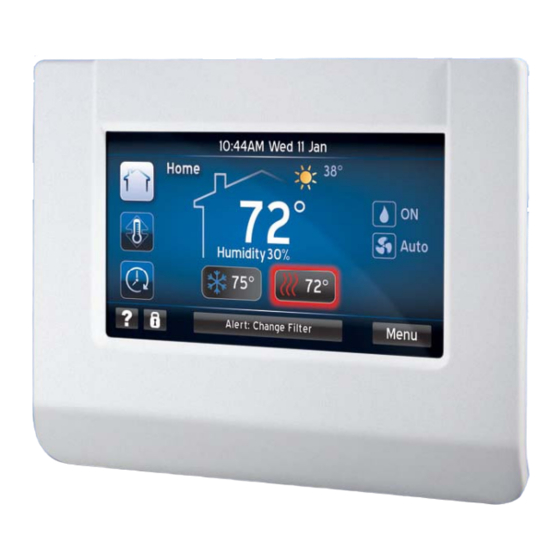

• High definition color, touch screen user interface.
• Incorporates graphics and animation.
• 4-wire installation from each component in the system.
• Intuitive on-screen prompts for ease of installation and ser-
vice.
• Automatic system configuration – plug & play.
• System diagnostics for ease of troubleshooting.
• Detailed system forced operation.
• Complete integration of temperature control, humidity con-
trol, and ventilation in every season.
• Ventilation limits to ensure outside air is not introduced in
extreme hot or cold conditions - no extra heating or cooling
load
• Automatic Humidity Control – set it and forget it. No longer
requiring manual setting for humidification or dehumidifica-
tion – can be switched to be used in manual mode
• Programmable or non-programmable mode selection
- Advanced or normal programmable mode view selection
• 7-day programmability with 2, 3, or 4 periods per day
• Patented pending Quick Heat/Quick Cool functionality
• Day-at-a-glance programming for simplified ease of use
• Seasonal programming
• Easy timed-override schedule
• Simplified vacation schedules
• Programmable fan by period
• Fan speed adjustability - as low as 17% to 100% in 1% incre-
ments
• Energy saving opportunity
• Indoor Air Quality pop-up replacement reminders
• General maintenance reminder messaging
• Comfort Studio software to allow programming the Commu-
nicating Control with the use of a thumb drive
- Allows the dealer to display the company logo
662812-UTG-B-0211
