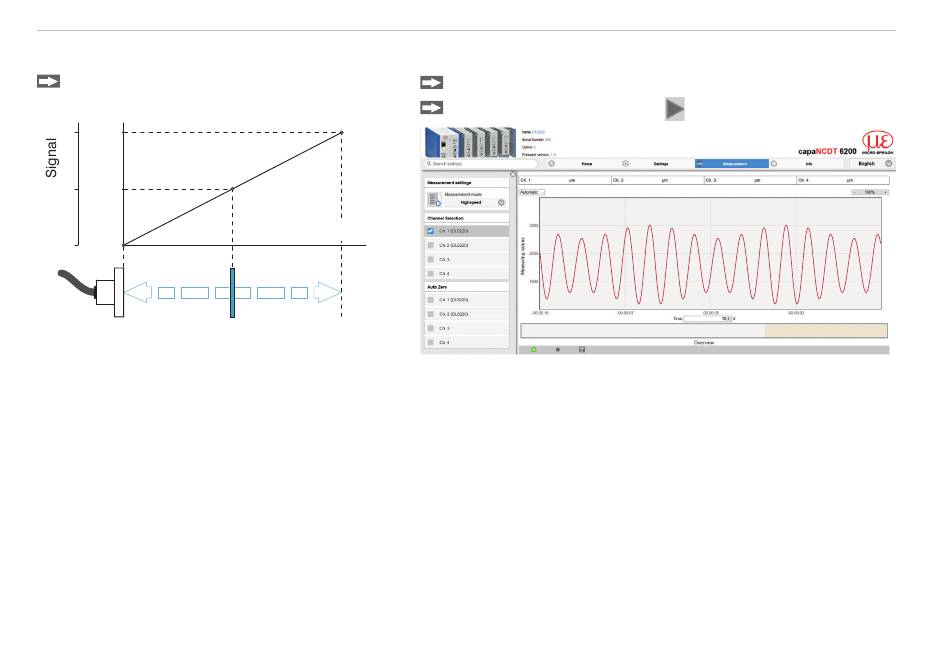

Distance Measurements
Positioning the Target
Position the target within the sensor mea-
suring range.
10 V
20 mA
5 V
12 mA
0 V
4 mA
SMR
MMR
Sensor
Measuring range (MR)
SMR
Start of measuring range
MMR
Mid of measuring range
EMR
End of measuring range
capaNCDT 6220/6222/6230
Displacement
EMR
Target
Distance Measurements
Switch to the Measurement menu.
Click the Start measuring
2279
button.
Page 18
