MICRO-EPSILON capaNCDT 6200 Quick Manual page 12

Assembly
Connect both flat strip connections (5) of the previ-
ous demodulator module to the new demodulator
module (6).

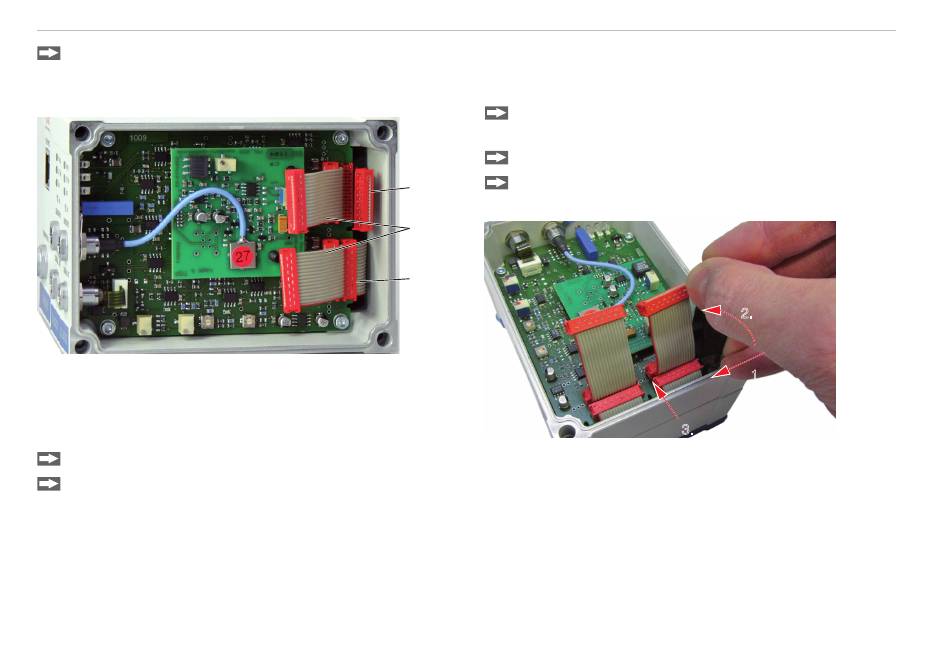

Wiring of demodulator modules
5 Wiring of previous demodulator module
6 Wiring of next demodulator module
Attach the right housing cover (3).
Screw the sleeve nuts (4b) onto the threaded rods
on the right side of the controller and tighten the
sleeve nuts.
capaNCDT 6220/6222/6230
Wiring to the previous demodulator module (5) can be
released by using the supplied unplugging tool – see
Accessories – as follows:
1. Push the unplugging tool with the cutout side-
ways onto the plug (5).
2. Remove the plug with a lever movement.
3. Release the other side of the plug in the same
5
manner.
6
5
Use of the unplugging tool for wiring of the demodulator
elements
2.
1.
3.
