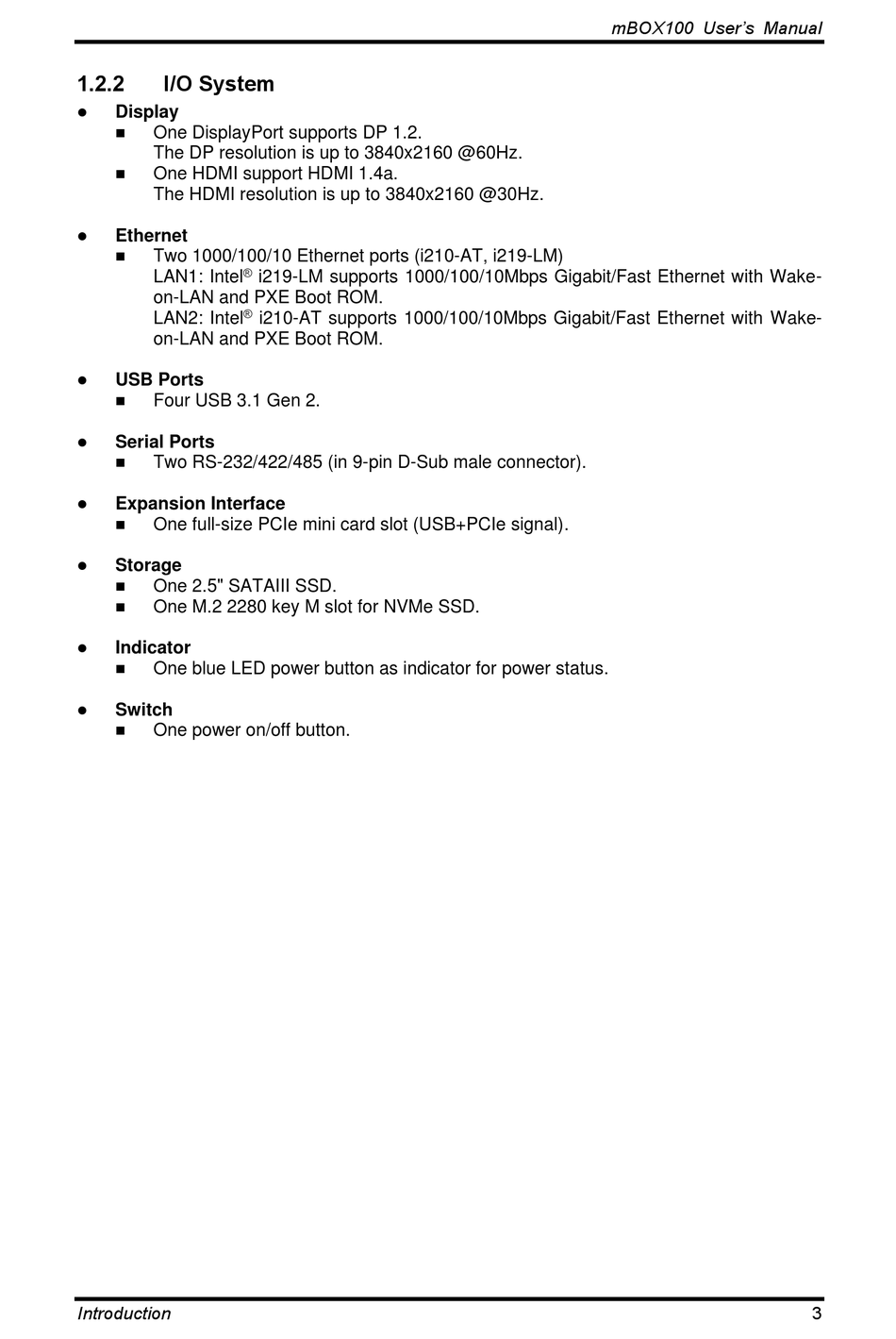

I/O System

⚫ Display
◼ One DisplayPort supports DP 1.2.
The DP resolution is up to 3840x2160 @60Hz.
◼ One HDMI support HDMI 1.4a.
The HDMI resolution is up to 3840x2160 @30Hz.
⚫ Ethernet
◼ Two 1000/100/10 Ethernet ports (i210-AT, i219-LM)
®
LAN1: Intel
on-LAN and PXE Boot ROM.
®
LAN2: Intel
on-LAN and PXE Boot ROM.
⚫ USB Ports
◼ Four USB 3.1 Gen 2.
⚫
Serial Ports
◼ Two RS-232/422/485 (in 9-pin D-Sub male connector).
⚫ Expansion Interface
◼ One full-size PCIe mini card slot (USB+PCIe signal).
⚫
Storage
◼
One 2.5" SATAIII SSD.
◼ One M.2 2280 key M slot for NVMe SSD.
⚫ Indicator
◼ One blue LED power button as indicator for power status.
⚫
Switch
◼ One power on/off button.
Introduction
i219-LM supports 1000/100/10Mbps Gigabit/Fast Ethernet with Wake-
i210-AT supports 1000/100/10Mbps Gigabit/Fast Ethernet with Wake-
