Summary of Contents for AXIOMTEK GOT-5100TL

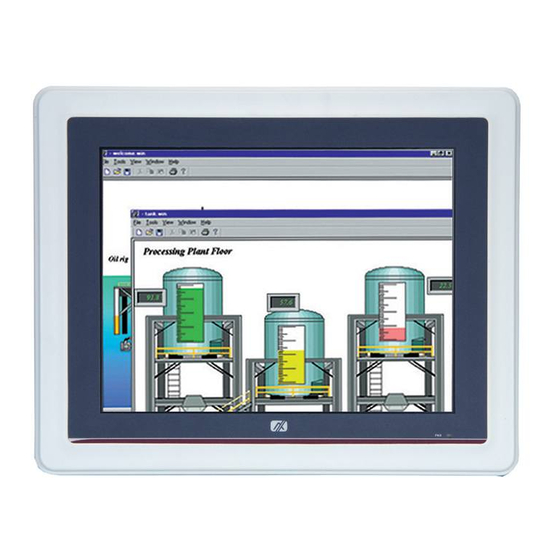

- Page 1 GOT-5100TL All-in-One 10.4” SVGA TFT Super Slim Fanless Toudh Computer User’s Manual...
- Page 2 AXIOMTEK does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document. AXIOMTEK does not make any commitment to update the information in this manual.
-
Page 3: Safety Approvals
Safety Approvals CE Marking FCC Class A FCC Compliance This equipment has been tested in compliance with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are meant to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Safety Precautions
Turn OFF the system power before cleaning. Clean the system using a cloth only. Do not spray any liquid cleaner directly onto the screen. The GOT-5100TL may come with or w/o a touchscreen. Although the touchscreen is chemical resistant, it is recommended that you spray the liquid cleaner on a cloth first before wiping the screen. - Page 5 When handling boards and components, wear a wrist- grounding strap, available from most electronic component stores. Trademarks Acknowledgments AXIOMTEK is a trademark of AXIOMTEK Co., Ltd. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. ® ®...
-
Page 6: Table Of Contents
Table of Contents Disclaimers..................ii Safety Approvals ................iii Safety Precautions ............... iv CHAPTER 1 INTRODUCTION ............1 General Description.............1 Specifications ..............2 1.2.1 Main CPU Board............2 1.2.2 I/O System ..............3 1.2.3 System Specification ..........3 Dimensions..............5 I/O Outlets ..............6 Packing List ..............7 CHAPTER 2 HARDWARE INSTALLATION ........8 CF card Installation............8 Serial Ports Interface ..........10 Ethernet ..............12... - Page 7 3.14 Save & Exit Setup............45 3.15 Exit Without Saving ...........46 CHAPTER 4 DRIVERS INSTALLATION..........47 System...............47 Touch Screen ............48 4.2.1 Specification (GOT-5100TL) ........48 4.2.2 Driver Installation- Windows XP ........48 Embedded O.S............51 4.3.1 Windows XP Embedded..........51 4.3.2 Windows CE.NET 5.0..........52 Appendix...................53...
- Page 8 MEMO viii...
-
Page 9: Chapter 1 Introduction
GOT-5100TL User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and detailed specifications of the GOT-5100TL. Chapter 1 includes the following sections: General Description Specification Dimensions I/O Outlets Package List General Description The GOT-5100TL is a fan-less and compact-size touch panel computer, equipped with an 10.4”... -
Page 10: Specifications
CompactFlash card. Ø Industrial-grade Product Design The GOT-5100TL has an incredible design to be used in different industrial harsh environments. A fuse helps prevent over-voltage for power input. The front bezel meets the IP65/NEMA4 standard. For connecting other devices, the GOT-5100TL also features several interfaces: USB, Ethernet, and RS-232/422/485. -
Page 11: I/O System
GOT-5100TL User’s Manual 1.2.2 I/O System Standard I/O One RS-232 and one RS-232/422/485 Two USB 2.0 Ethernet One RTL8139DL Fast Ethernet Audio Line-out Expansion One Mini-PCI Storage One slot for CF card Box-header One PATA-100 IDE 1.2.3 System Specification 10.4” TFT LCD... - Page 12 GOT-5100TL User’s Manual NOTE All specifications and images are subject to change without notice. Introduction...
-
Page 13: Dimensions
GOT-5100TL User’s Manual Dimensions This diagram shows you dimensions and outlines of the GOT-5100TL. Introduction... -
Page 14: I/O Outlets
GOT-5100TL User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT- 5100TL. Function POWER SWITCH (AT) 24VDC POWER COM 2 (RS-232) COM 1 (RS-232/422/485) 1 X ETHERNET (RJ-45) 2 X USB 2.0 AUDIO (LINE-OUT) -
Page 15: Packing List
GOT-5100TL User’s Manual Packing List When you receive the GOT-5100TL, the bundled package should contain the following items: GOT-5100TL x 1 Panel Mount Kit x 6 Driver CD x1 Wall-Mount Kit x1 Wireless LAN kit (optional) 2.5” HDD kit (optional) -
Page 16: Chapter 2 Hardware Installation
GOT-5100TL User’s Manual CHAPTER 2 HARDWARE INSTALLATION The GOT-5100TL provides rich I/O ports and flexible expansions for you to meet different demand, for example, CF card. The chapter will show you how to install the hardware. It includes: ™ CompactFlash... - Page 17 GOT-5100TL User’s Manual Step 2 Find out the cover on the side of the system. Step 3 Locate the CompactFlash socket, and insert the card into the socket. Hardware Installation...
-
Page 18: Serial Ports Interface
GOT-5100TL User’s Manual Serial Ports Interface The GOT-5100TL has two onboard serial ports, COM1 (RS- 232/422/485) and COM2 (RS-232). The following table shows you the pin assignments of this connector: Signal Signal Data Carrier Data Set Ready Detect (DCD) (DSR) - Page 19 GOT-5100TL User’s Manual COM2 COM1 When COM1 is set to RS-422 or RS-485, the pin assignments are listed below: Signal Name Pin # RS-422 RS-485 DATA- DATA+ No connector No connector No connector No connector No connector No connector No connector...
-
Page 20: Ethernet
GOT-5100TL User’s Manual Ethernet The GOT-5100TL is equipped with a high performance Plug and Play Ethernet interface, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:... -
Page 21: Mountings - Panel/Wall/Desktop/Vesa
There are several mounting ways for the GOT-5100TL, Panel, Wall, Desktop and VESA mountings. 2.4.1 Panel Mounting The GOT-5100TL is designed for panel mount application. A set of standard mounting kit are bundled with the system package that you can use it to mount the GOT-5100TL. Hardware Installation... -
Page 22: Wall-Mounting
GOT-5100TL User’s Manual 2.4.2 Wall-Mounting The GOT-5100TL is designed for Wall mounting application. Please refer to the following steps: Find out the screws as marked on the back side of chassis. Hardware Installation... -
Page 23: Desktop-Mounting
GOT-5100TL User’s Manual 2.4.3 Desktop-Mounting The GOT-5100TL is designed for desktop mounting application. Please refer to the following steps: Step 1 Find out the screws as marked on the back side of chassis. Hardware Installation... - Page 24 GOT-5100TL User’s Manual Step 2 Assemble the desktop stand to the chassis, and fix the screws. Hardware Installation...
-
Page 25: Vesa-Arm Mounting
GOT-5100TL User’s Manual 2.4.4 VESA-ARM Mounting Step 1 Find out the screws as marked on the back side of chassis. Step 2 Assemble the VESA-ARM to the back side of the chassis, and fix the screws. Hardware Installation... - Page 26 GOT-5100TL User’s Manual Step 3 VESA mounting Installation completed. Hardware Installation...
-
Page 27: Hdd Installation
GOT-5100TL User’s Manual HDD Installation The GOT-5100TL provides a convenient drive bay module for users to install 2.5” IDE HDD. Please follow the steps: 1. Unscrew screws to remove the rear chassis. 2. Unscrew 4 screws from the HDD drive bracket, and take out HDD bracket kit to install 2.5”... - Page 28 GOT-5100TL User’s Manual 3. Installation complete. Hardware Installation...
-
Page 29: Wireless Card Installation
GOT-5100TL User’s Manual Wireless Card Installation The GOT-5100TL provides one miniPCI slot for user to install one wireless card. W hen installing the wireless card, refer to the following instructions and illustration: 1. Open the back cover and find mainboard (EP621). - Page 30 GOT-5100TL User’s Manual 3. There are two connectors on wireless LAN card. One is MAIN, and the other is AUX. Connect antenna cable to MAIN connector on wireless LAN card. Hardware Installation...
- Page 31 GOT-5100TL User’s Manual MEMO Hardware Installation...
-
Page 32: Chpater 3 Phoenix-Award Bios Utility
GOT-5100TL User’s Manual CHPATER 3 PHOENIX-AWARD BIOS UTILITY The Phoenix-Award BIOS provides users with a built-in Setup program to modify basic system configuration. All configured parameters are stored in a battery-backed-up RAM (CMOS RAM) to save the Setup information whenever the power is turned off. -
Page 33: Control Keys
GOT-5100TL User’s Manual Control Keys Move cursor to the previous item Up arrow Move cursor to the next item Down arrow Move cursor to the item on the left hand Left arrow Move to the item in the right hand... -
Page 34: The Main Menu
GOT-5100TL User’s Manual The Main Menu Once you enter the Award BIOS CMOS Setup Utility, the Main Menu appears on the screen. In the Main Menu, there are several Setup functions and a couple of Exit options for your selection. Use arrow keys to select the Setup Page you intend to configure then press <Enter>... -
Page 35: Standard Cmos Setup Menu
GOT-5100TL User’s Manual Standard CMOS Setup Menu The Standard CMOS Setup Menu displays basic information about your system. Use arrow keys to highlight each item, and use <PgUp> or <PgDn> key to select the value you want in each item. - Page 36 GOT-5100TL User’s Manual computer. There are 45 predefined types (Type 1 to Type 45) and 2 user’s definable types (Type User) for Enhanced IDE BIOS. Press <PgUp>/<+> or <PgDn>/< > to select a numbered hard disk type, or directly type the number and press <Enter>. Please be noted your drive’s specifications must match the drive table.
-
Page 37: Advanced Bios Features
GOT-5100TL User’s Manual Advanced BIOS Features This section allows you to configure and improve your system, to set up some system features according to your preference. First/Second/Third Boot Device These items let you select the 1 , and 3 devices that the system will search for during its boot-up sequence. - Page 38 GOT-5100TL User’s Manual Gate A20 Option The default value is “Fast”. Normal The A20 signal is controlled by keyboard controller or chipset hardware. Fast Default: Fast. The A20 signal is controlled by Port 92 or chipset specific method. Typematic Rate Setting This item determines the typematic rate of the keyboard.
- Page 39 GOT-5100TL User’s Manual Small Logo(EPA) Show If enabled, the EPA logo will appear during system booting up; if disabled, the EPA logo will not appear. Press <Esc> to return to the Main Menu page. Phoenix-Award BIOS Utility...
-
Page 40: Advanced Chipset Features
GOT-5100TL User’s Manual Advanced Chipset Features This section contains completely optimized chipset’s features on the board that you are strongly recommended to leave all items on this page at their default values unless you are very familiar with the technical specifications of your system hardware. -
Page 41: Integrated Peripherals
GOT-5100TL User’s Manual Output Display This item allows you to choose the output for your system display. Configuration options are “CRT”, “Flat Panel” and “Panel & CRT”. The default value is “Panel & CRT”. Flat Panel Configuration The configuration is for resolution of flat panel which locks to 800 ×... - Page 42 GOT-5100TL User’s Manual Super IO Device Scroll to this item and press <Enter> to view the sub menu Super IO Device. Ø Onboard Serial Port 1/2/3 Select an address and corresponding interrupt for the serial port. Options: 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ10, 2E8/IRQ11, 338/IRQ5, 238/IRQ7, Auto and Disabled.
- Page 43 GOT-5100TL User’s Manual IDE Function Setup Scroll to this item and press <Enter> to view the sub menu IDE Function Setup. Ø Master/Slave Drive PIO Mode The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports.
- Page 44 GOT-5100TL User’s Manual block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support. Press <Esc> to return to the Integrated Peripherals page. Onboard Device Scroll to this item and press <Enter> to view the sub menu Onboard Device.
- Page 45 GOT-5100TL User’s Manual ITE8888 Configure Scroll to this item and press <Enter> to view the sub menu ITE8888 Configure. Press <Esc> twice to return to the Main Menu page. Phoenix-Award BIOS Utility...
-
Page 46: Power Management Setup
GOT-5100TL User’s Manual Power Management Setup The Power Management Setup allows you to save energy of your system effectively. It will shut down the hard disk and turn OFF video display after a period of inactivity. ACPI Function This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI). - Page 47 GOT-5100TL User’s Manual enter the SUSPEND mode. HDD Power Down If HDD activity is not detected for a specified length of time in this field, the hard disk drive will be powered down while other devices remain active. Modem Use IRQ...
-
Page 48: Pnp/Pci Configuration Setup
GOT-5100TL User’s Manual 3.10 PnP/PCI Configuration Setup This section describes the configuration of PCI (Personal Computer Interconnect) bus system, which allows I/O devices to operate at speeds close to the CPU speed while communicating with other important components. This section covers very technical items that only experienced users could change default settings. - Page 49 GOT-5100TL User’s Manual Resources Controlled By The Phoenix-Award Plug and Play BIOS can automatically configure all boot and Plug and Play-compatible devices. If you select Auto, all interrupt request (IRQ), DMA assignment, and Used DMA fields disappear, as the BIOS automatically assigns them.
-
Page 50: Pc Health Status
GOT-5100TL User’s Manual 3.11 PC Health Status This section supports hardware monitering that lets you monitor those parameters for critical voltages, temperatures and fan speed of the board. Current SYSTEM Temp Show you the current system temperature. Current CPU Temp The current system CPU temperature will be automatically detected by the system. -
Page 51: Load Optimized Defaults
GOT-5100TL User’s Manual 3.12 Load Optimized Defaults This option allows you to load your system configuration with default values. These default settings are optimized to enable high performance features. To load CMOS SRAM with SETUP default values, please enter “Y”. If not, please enter “N”. -
Page 52: Set Supervisor/User Password
GOT-5100TL User’s Manual 3.13 Set Supervisor/User Password You can set a supervisor or user password, or both of them. The differences between them are: Supervisor password: You can enter and change the options on the setup menu. User password: You can just enter, but have no right to change the options on the setup menu. -
Page 53: Save & Exit Setup
GOT-5100TL User’s Manual 3.14 Save & Exit Setup This section allows you to determine whether or not to accept your modifications. Type “Y” to quit the setup utility and save all changes into the CMOS memory. Type “N” to bring you back to the Setup utility. -
Page 54: Exit Without Saving
GOT-5100TL User’s Manual 3.15 Exit Without Saving Select this option to exit the Setup utility without saving changes you have made in this session. Type “Y”, and it will quit the Setup utility without saving your modifications. Type “N” to return to the Setup utility. -
Page 55: Chapter 4 Drivers Installation
GOT-5100TL supports Windows 2000/XP. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver CD and select the “\ GOT-5100TL Driver CD\”. Select all files and follow the installing procedure. Installation of Drivers... -
Page 56: Touch Screen
Active: 3.6mA / Idle Mode: 1.0mA 4.2.2 Driver Installation- Windows XP The GOT-5100TL provides a touch screen driver that users can install it under the operating system Windows XP. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation. - Page 57 GOT-5100TL User’s Manual Click Start menu and select “PenMount Utilities”; and then, a “PenMount Control Panel” pops out. Note Please choose COM3 for touch screen installation. Installation of Drivers...
- Page 58 GOT-5100TL User’s Manual Select the “Standard Calibrate” tab. Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. Installation of Drivers...
-
Page 59: Embedded O.s
Onboard Audio Touch Screen PenMount Touch screen GOT-5100TL has Penmount touch screen on COM3, which is disabled by default. Before you can use and calibrate it, here is what you should do: Set up Penmount touch device driver by executing c:\Penmount\ Windows 2000-XP V5.0\setup.exe. -
Page 60: Windows Ce.net 5.0
GOT-5100TL User’s Manual 4.3.2 Windows CE.NET 5.0 Here are supported onboard devices: Onboard Multi I/O Floppy drive 16C550 UARTs compatible serial port IrDA for wireless communication Onboard IDE IDE HDD PS2 Keyboard and mouse CRT/LCD display 10/100 base-T Ethernet Compact Flash... -
Page 61: Appendix
GOT-5100TL User’s Manual Appendix The solution for removing exclamation points on two COM4. After installing XP, it sometimes appears two COM4 (or one COM4 and one COM5) with exclamation points. To remove them, please follow the steps below. In device manager,... - Page 62 GOT-5100TL User’s Manual 1. After restarting windows, you can see two COM4 (or one COM4 and one COM5) with exclamation points in device manager. 2. Choose first COM4 and enter properties→ resources→Set Configuration Manually Untick the “Use automatic settings” 1. Setting based...
- Page 63 GOT-5100TL User’s Manual 1. Enter properties →port setting→ Advanced 2. COM Port Number: COM1 (in use) 3. Press OK to leave. Choose second COM4(or COM5) properties→ resources→Set Configuration Manually Untick the “Use automatic settings” Installation of Drivers...
- Page 64 GOT-5100TL User’s Manual 1. Setting based on : Basic configuration 0000 2. IRQ: 03 (COM2) 3. I/O Range: 02F8-02FF (COM1) 1. Enter properties →port setting→ Advanced 2. COM Port Number→COM2 (in use) 3. Press OK to back to Device Manager and...
- Page 65 The solution for removing exclamation point on Secondary IDE Channel Double click the file Lx800ide.reg where is under the folder of “GOT-5100TL-621\Driver\”. After you install this Lx800ide.reg to the registry, the exclamation point on Secondary IDE Channel will be removed.
