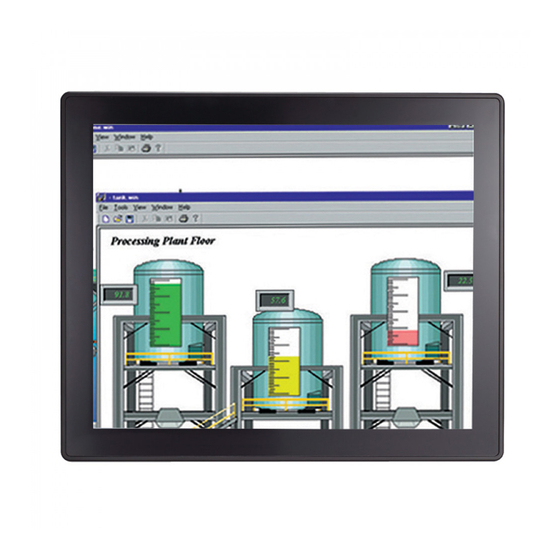

Package List General Description The GOT3177T-834-FR adopts a 17-inch SXGA TFT LCD with 350-nit brightness and an Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) to provide excellent computing performance and thermal resistance. This fanless platform is especially designed for operating under heavy-duty environment including steel refinery, oil pipe, ship, machine maker operating systems and many more.
GOT3177T-834-FR User’s Manual WLAN Antenna Supported (optional) GOT3177T-834-FR has 2 PCI Express Mini Card slots for optional add-on such as wireless LAN card for 802.11 a/b/g/n connections, 3G/GPRS application, and more. These slots also provide 3 optional fixed rotational WLAN/3G antennas for wireless network connection.
Page 9
GOT3177T-834-FR User’s Manual System Specification 17” SXGA(1280x1024) LCD with LED backlight Flat resistive touch Fanless Heat Dispensing Design IP65 front bezel Disk drive housing: One 2.5” SATA drive Net Weight 4.8 Kgs ...
GOT3177T-834-FR User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT3177T-834-FR. Function Function POWER SWITCH (ATX) COM2 (RS-232/422/485) Power Input connector (Phoenix) Ethernet Power Input connector (Screw) USB 3.0 USB 2.0 Line-out (Audio) COM1 (RS-232/422/485)
GOT3177T-834-FR unit x 1 Driver CD x1 Phoenix connector x 1 Panel mount kit x 10 Screws for HDD x 4 If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction...
Page 14
GOT3177T-834-FR User’s Manual This page is intentionally left blank. Introduction...
GOT3177T-834-FR User’s Manual Chapter 2 Hardware and Installation The GOT3177T-834-FR provides rich I/O ports and flexible expansions for you to meet different demand, for example CF card. The chapter will show you how to install the hardware. It includes: ™...
GOT3177T-834-FR User’s Manual CFast card Installation ™ ™ The GOT3177T-834-FR provides one CFast slot for users to install CFast card. Please refer to the following instructions for installation: Step 1 Open the cover, unscrew 2 screws on the chassis. Step 2 Stick the mylar on the CFast card bottom side.
GOT3177T-834-FR User’s Manual Step 3 Insert the CFast card to the CFast card slot, then finding the CFast cover from the system package and screw it. Open back cover This section tells users how to open back cover. Please follow the steps below.
And remove jumper clip from 2 jumper pins to open. The following illustration shows how to set up jumper. Before applying power to GOT3177T-834-FR, please make sure all of the jumpers and switch are in factory default position. Below you can find a summary table and onboard default settings.
GOT3177T-834-FR User’s Manual 2.3.1 Auto Power On (JP7) If JP7 is enabled for power input, the system will be automatically power on without pressing soft power button. If JP7 is disabled for power input, it is necessary to manually press soft power button to power on the system.
GOT3177T-834-FR User’s Manual Ethernet The GOT3177T-834-FR is equipped with a high performance Plug and Play Ethernet interface, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:...
Mountings: Panel / Wall / Desktop / VESA There are 4 application options for the GOT3177T-834-FR, Panel/Wall/Desktop/VESA mountings. 2.5.1 VESA-ARM/Wall-Mount The GOT3177T-834-FR provides VESA mount: 100x100 mm. Screw four screws to fix the kit in the back chassis. Wall mount: VESA mount:...
GOT3177T-834-FR User’s Manual 2.5.2 Panel-mount Kit Assembly The GOT3177T-834-FR is designed for panel mount application. To mount the GOT3177T-834-FR, the standard set of mounting kit (included in the system packaging) is needed. Hardware and Installation...
GOT3177T-834-FR User’s Manual HDD Installation The GOT3177T-834-FR provides a convenient Hard Disk Drive (HDD) bracket for users to install 2.5” SATA HDD. Please follow the steps: Step 1 Refer section 2.2 to open the back cover. Step 2 Fix the HDD on the HDD tray by 4 screws.
Page 24
GOT3177T-834-FR User’s Manual Step 3 Plug the cables to connectors and screw the HDD tray on the bracket. Installation completes. Hardware and Installation...
GOT3177T-834-FR User’s Manual DRAM Installation The GOT3177T-834-FR provides one 204-pin DDR3L SODIMM socket that supports system memory up to 8GB. Please follow steps below to install the memory modules: Step 1 Refer to section 2.2 to open the back cover.
Page 26
GOT3177T-834-FR User’s Manual Step 4 Insert the DRAM to the DIMM socket, and then push it down firmly until it is clipped by the socket. Installation completed Hardware and Installation...
GOT3177T-834-FR User’s Manual Wireless LAN Card Installation The GOT3177T-834-FR provides one Mini card slot for user to install one wireless LAN card. When installing the wireless LAN card, refer to the following instructions and illustration: Step 1 Refer to section 2.2 to open the back cover and find out mini-card slot on mainboard.
Page 28
GOT3177T-834-FR User’s Manual Step 3 Find the Antenna cable and connect it on wireless LAN card. …. Hardware and Installation...
NOTE: Please have the extended bracket when using half-size mini card. Power Input GOT3177T-834-FR equips with a phoenix type power connector. It adopts 9VDC to 36VDC. Please follow the signs on power connector to connect DC power source. -:Power negative...
Page 30
GOT3177T-834-FR User’s Manual This page is intentionally left blank. Hardware and Installation...
GOT3177T-834-FR User’s Manual Chapter 3 AMI BIOS Setup Utility This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process.
GOT3177T-834-FR User’s Manual Main Menu System Time/Date Use this option to change the system time and date. Highlight System Time or System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time is entered in HH:MM:SS format.
GOT3177T-834-FR User’s Manual Advanced Menu The Advanced menu allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ...
Page 34
GOT3177T-834-FR User’s Manual ACPI Sleep State Allow you to select the Advanced Configuration and Power Interface (ACPI) state to be used for system suspend. Here are the options for your selection, Suspend disable and S3 (Suspend to RAM). AMI BIOS Setup Utility...
Page 35
GOT3177T-834-FR User’s Manual NCT6106D Super IO Configuration Use this screen to select options for the Super IO Configuration, and change the value of the selected option Serial Port 1-4 configuration Serial port: This option used to enable or disable the serial port.
Page 36
GOT3177T-834-FR User’s Manual Serial type: This option used to select RS232/422/485 function. AMI BIOS Setup Utility...
Page 37
GOT3177T-834-FR User’s Manual NCT6106D H/W Monitor This screen shows the Hardware Health Configuration. AMI BIOS Setup Utility...
Page 38
GOT3177T-834-FR User’s Manual CPU Configuration This screen shows the CPU Configuration and Intel virtualization technology enable/disable selected AMI BIOS Setup Utility...
Page 39
GOT3177T-834-FR User’s Manual IDE Configuration You can use this screen to select options for the SATA Configuration, and change the value of the selected option. SATA Mode Use this item to choose the SATA operation mode. Here are the options for your selection, IDE Mode, AHCI Mode.
Page 40
GOT3177T-834-FR User’s Manual Intel TXE Configuration The Advanced menu allows users to update the TXE firmware. AMI BIOS Setup Utility...
Page 41
GOT3177T-834-FR User’s Manual LPSS & SCC Configuration You can select any of the items in the frame of the screen to change the OS, the default setting is Win 7. Please be informed to select the Windows 8.x when installing Win 8 or Win 8.1.
GOT3177T-834-FR User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. AMI BIOS Setup Utility...
Page 43
GOT3177T-834-FR User’s Manual North Bridge This screen shows the North Bridge memory information. South Bridge AMI BIOS Setup Utility...
Page 44
GOT3177T-834-FR User’s Manual USB Configuration You can use this screen to select options for the USB Configuration, If USB3.0 function used, XHCI Mode must enable and EHCI must disable. **XHCI default is Auto. AMI BIOS Setup Utility...
GOT3177T-834-FR User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. You can select any of the items in the left frame of the screen to go to the sub menus: Setup Prompt Timeout Set the Timeout for wait press key to enter Setup Menu.
GOT3177T-834-FR User’s Manual Chapter 4 Drivers Installation System GOT3177T-832-FR supports Windows 7, Windows 8/8.1 ,WES 7 and WE8S. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. 4.1.1 Win 7 Insert Driver CD and select the “\Drivers”.
Insert Driver CD and select the “\Drivers”. Select all files and follow the installing procedure. Touch Screen The GOT3177T-834-FR uses the 5-wire analog resistive (flat front bezel type). There are the specification and driver installation which are listed below. 4.2.1 Specification...
GOT3177T-834-FR User’s Manual 4.2.2 Driver Installation- Windows 7/8.x The GOT3177T-834-FR provides a touch screen driver that users can install it under the operating system Windows 7/8.x. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation.
Page 52
GOT3177T-834-FR User’s Manual Select the “Standard Calibrate” tab. Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. Drivers Installation...
GOT3177T-834-FR User’s Manual Embedded O.S. The GOT3177T-834-FR provides the WES 7 and WE8S Embedded. The O.S. is supported devices which are listed below. 4.3.1 WES 7 & WE8S Here are supported onboard devices: Onboard Multi I/O SATA HDD ...
Page 54
GOT3177T-834-FR User’s Manual This page is intentionally left blank. Drivers Installation...
