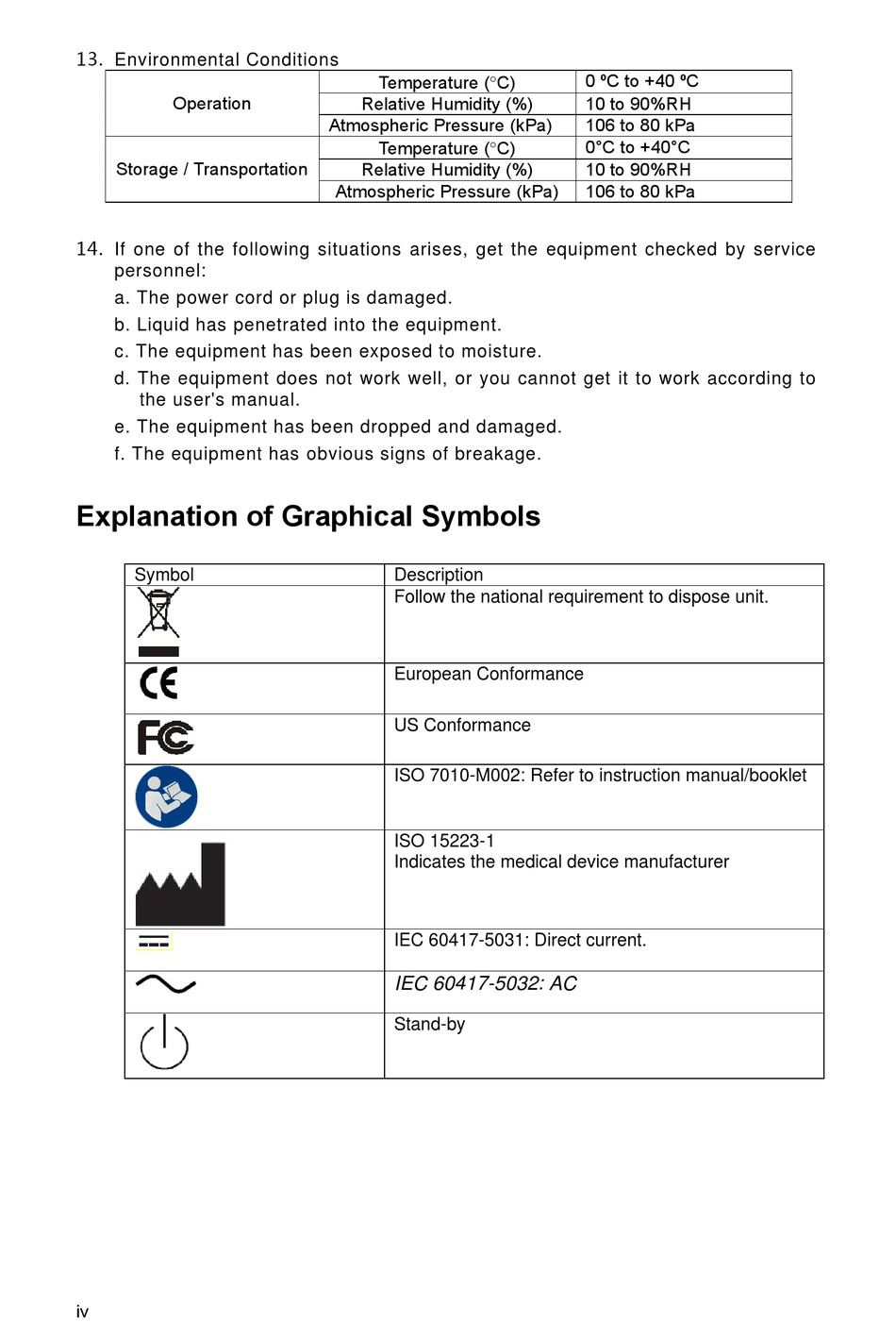

13. Environmental Conditions
Operation
Storage / Transportation
14. If one of the following situations arises, get the equipment checked by service
personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to
the user's manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.

Explanation of Graphical Symbols

Symbol
iv
Temperature (C)
Relative Humidity (%)
Atmospheric Pressure (kPa)
Temperature (C)
Relative Humidity (%)
Atmospheric Pressure (kPa)
Description
Follow the national requirement to dispose unit.
European Conformance
US Conformance
ISO 7010-M002: Refer to instruction manual/booklet
ISO 15223-1
Indicates the medical device manufacturer
IEC 60417-5031: Direct current.
IEC 60417-5032: AC
Stand-by
0 ºC to +40 ºC
10 to 90%RH
106 to 80 kPa
0°C to +40°C
10 to 90%RH
106 to 80 kPa
