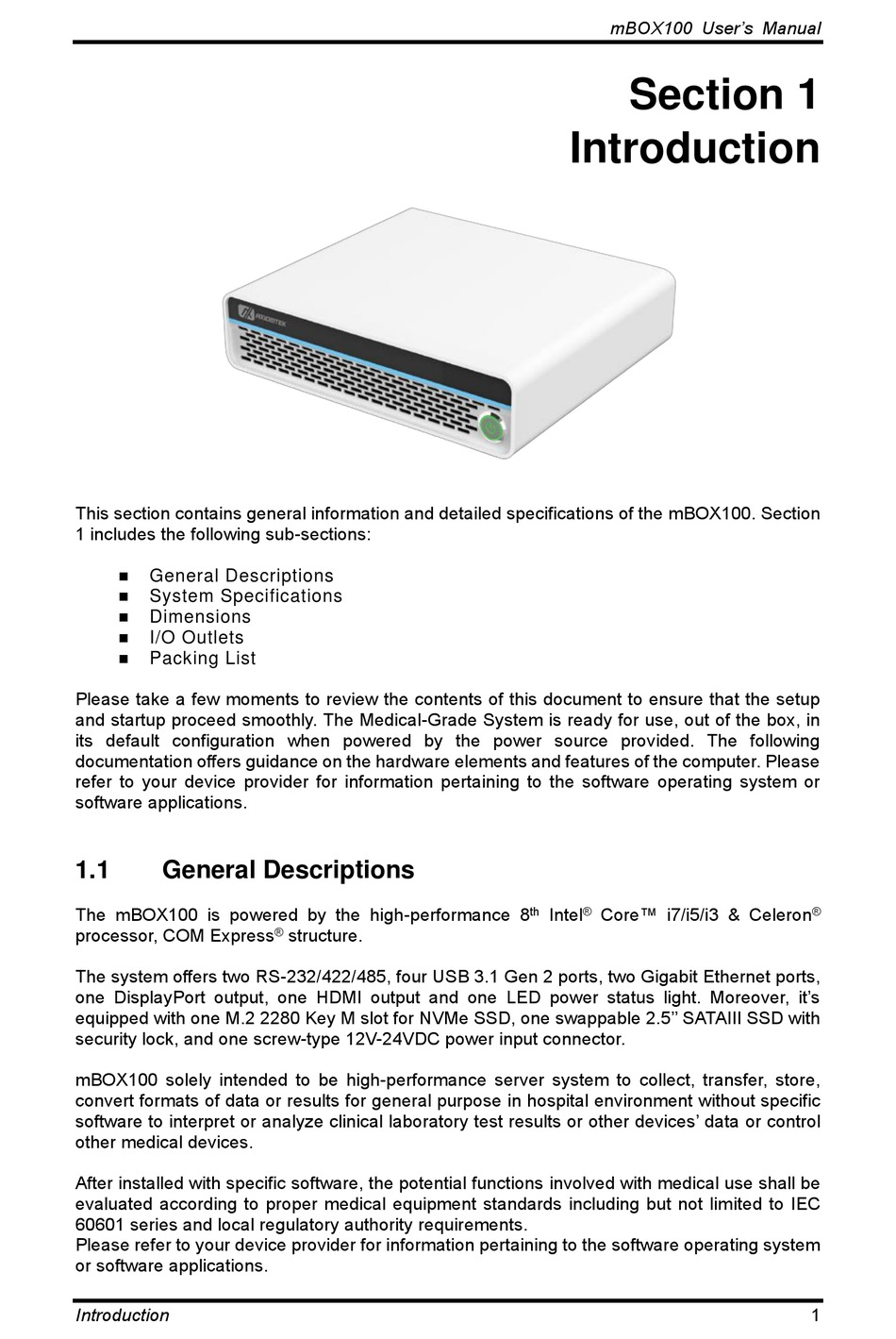

Introduction; General Descriptions - AXIOMTEK mBOX100 User Manual

This section contains general information and detailed specifications of the mBOX100. Section
1 includes the following sub-sections:
◼

General Descriptions

◼
System Specifications
◼ Dimensions
◼ I/O Outlets
◼ Packing List
Please take a few moments to review the contents of this document to ensure that the setup
and startup proceed smoothly. The Medical-Grade System is ready for use, out of the box, in
its default configuration when powered by the power source provided. The following
documentation offers guidance on the hardware elements and features of the computer. Please
refer to your device provider for information pertaining to the software operating system or
software applications.
1.1 General Descriptions
The mBOX100 is powered by the high-performance 8
processor, COM Express
The system offers two RS-232/422/485, four USB 3.1 Gen 2 ports, two Gigabit Ethernet ports,
one DisplayPort output, one HDMI output and one LED power status light. Moreover, it's
equipped with one M.2 2280 Key M slot for NVMe SSD, one swappable 2.5'' SATAIII SSD with
security lock, and one screw-type 12V-24VDC power input connector.
mBOX100 solely intended to be high-performance server system to collect, transfer, store,
convert formats of data or results for general purpose in hospital environment without specific
software to interpret or analyze clinical laboratory test results or other devices' data or control
other medical devices.
After installed with specific software, the potential functions involved with medical use shall be
evaluated according to proper medical equipment standards including but not limited to IEC
60601 series and local regulatory authority requirements.
Please refer to your device provider for information pertaining to the software operating system
or software applications.

Introduction

structure.
®
mBOX100 User's Manual
Section 1
Introduction
Intel Core™ i7/i5/i3 & Celeron
th ® ®
1
