Configuring the instructions
4.5 Programming instructions
4.5.5

RESET instructions

The reset instructions described in this section are required if you want to operate the
modules with a Rockwell controller.
Remember that the default value will be used automatically if you do not select a value
manually.
4.5.5.1

Reset_Reader

Using the "Reset_Reader" instruction, you can reset the RF600 read points. Note that a
separate reset command must be sent for each read point. The read point is reset to the
settings configured on the reader with the WBM. The "Reset_Reader" instruction does
not have any device-specific parameters and is executed using the "EXECUTE"
parameter. This instruction is also required to reset the "CM_Configuration" module of a
RF18xC/RF18xCI communication module.
You can use the "Reset_Reader" instruction to interrupt any active Ident instruction at
any time. The instructions are then ended with "DONE = true" and "ERROR = false".

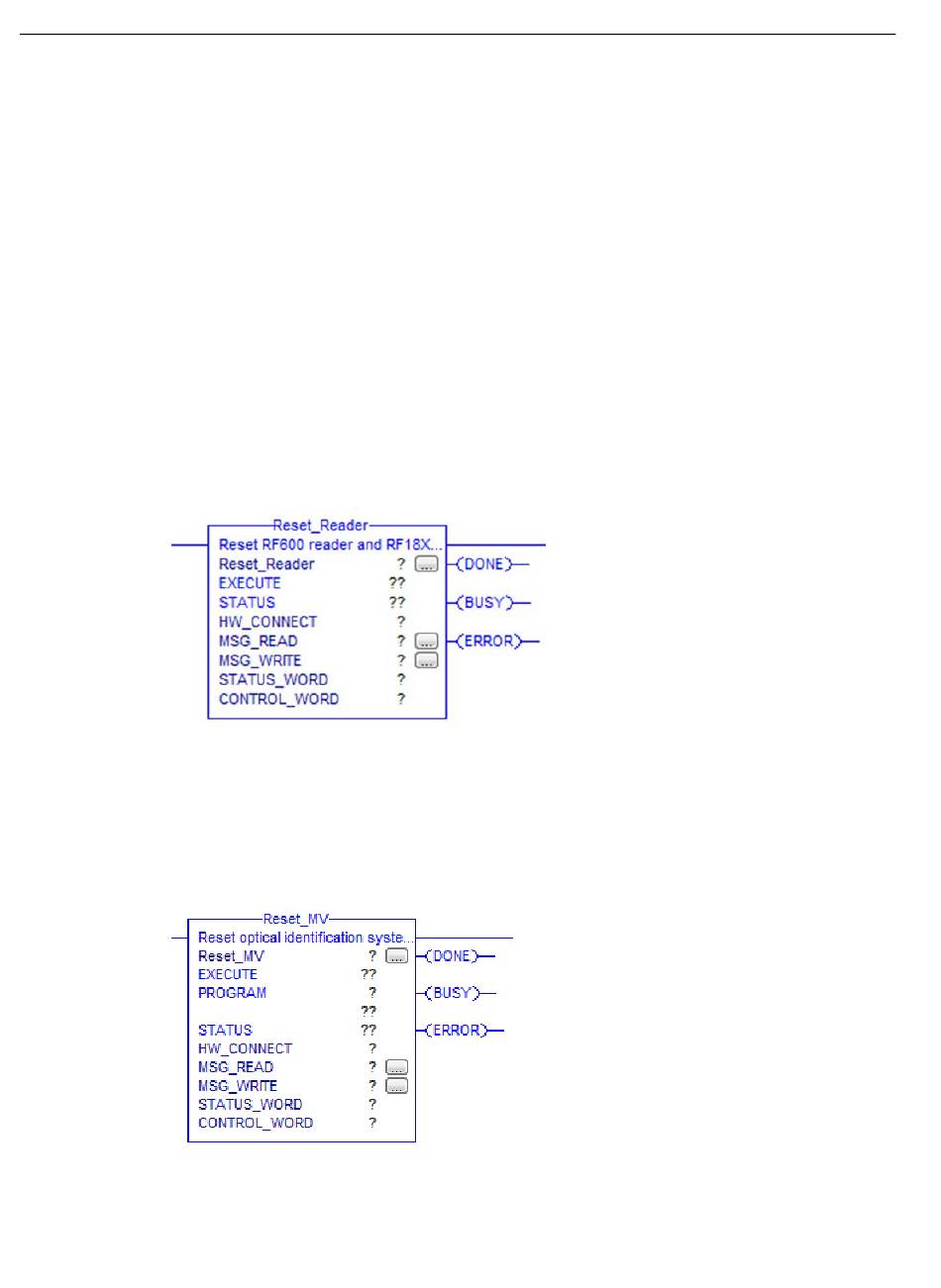

Figure 4-22 "Reset_Reader" instruction
4.5.5.2

Reset_MV

To reset cameras of the optical reader systems, call the instruction and activate the
"EXECUTE" parameter.
Figure 4-23 Instruction "Reset_MV"
