REVO C
2PH from 1100A to 2100A
8

Wiring instructions

The Thyristor unit could be susceptible to interferences lost by near equipments or by the power supply, for
this reason in accord to the fundamental practices rules is opportune take some precautions:
• The coil contactor, the relays and other inductive loads must be equipped with opportune RC filter.
• Use shielded bipolar cables for all the input and output signals.
• The signal cables must not be near and parallel to the power cables.
• Local regulations regarding electrical installation should be rigidly observed.
Use copper cables and wires rated for use at 75°C only.

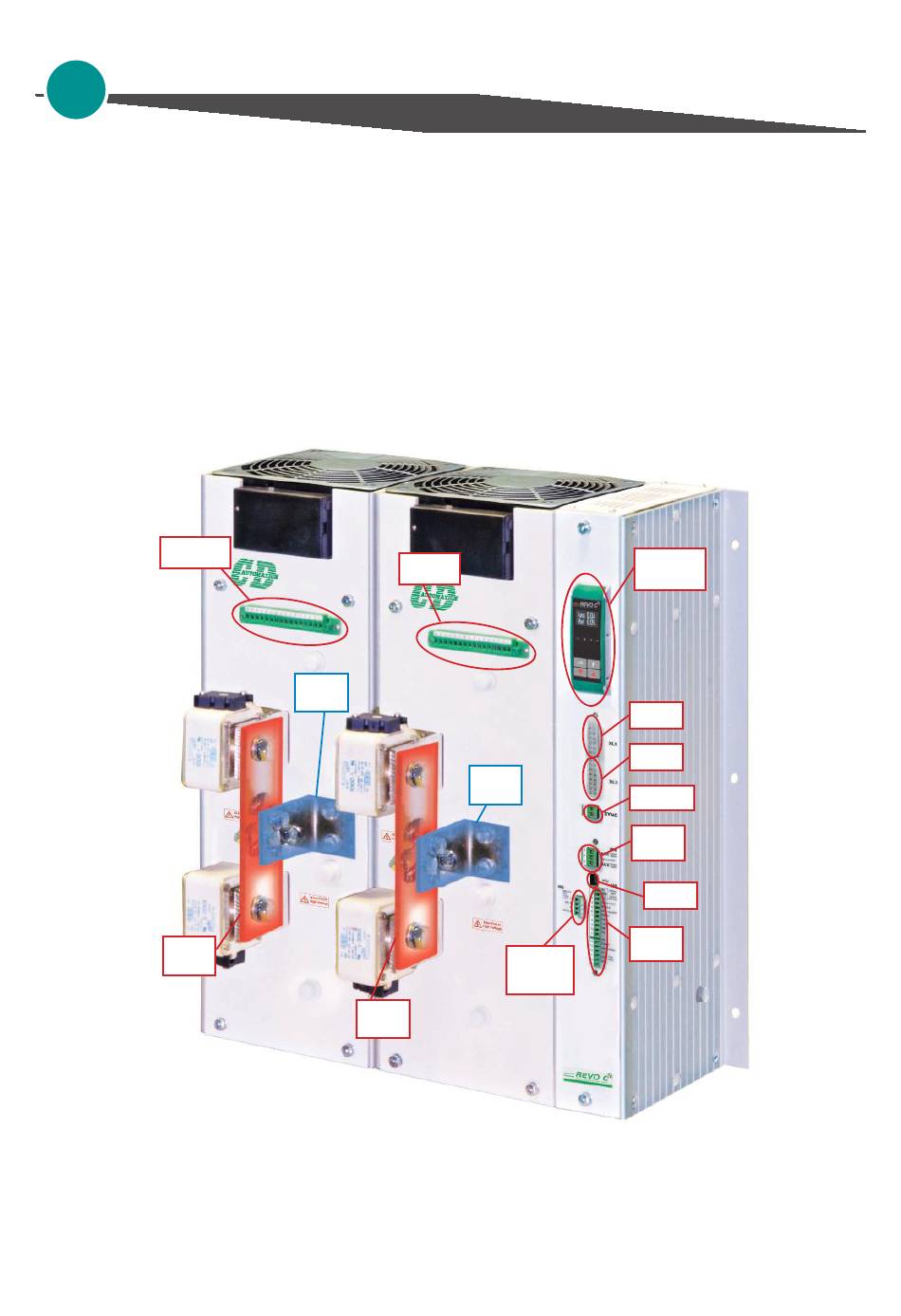

8.1 Terminals Positions

MX1 MX1
L1 L1
MX2 MX2
T1 T1
L3 L3
25
Control Control
panel panel
XL1 XL1
XL2 XL2
T3 T3
SYNC SYNC
M4 M4
USB USB
M5 M5
M6 M6
(option) (option)
