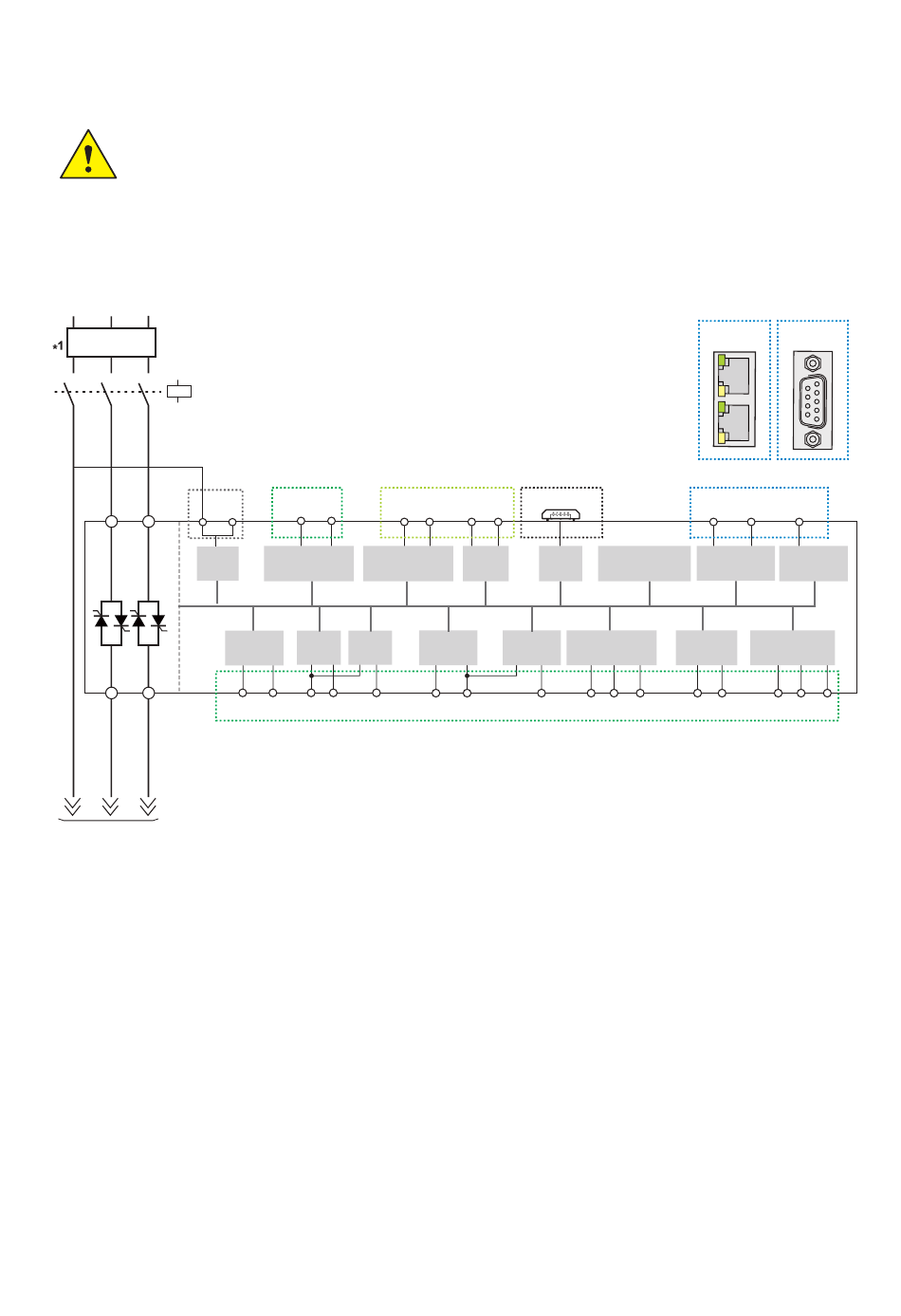

8.9 Schematic

Caution: this procedure must be performed only by qualified persons.
L2 L3 L1
Branch Circuit
Protection
K1
Sync
1
L3 L1
SYNC
T2 T3 T1
TO LOAD
M4 MX
AUX AUX
2 1 3
Auxiliary
voltage supply thermal switch
+10Vdc Digital Digital
supply Input 2 Input 1
13 5 6
9 10
+10V GND COM I DI 2 DI 1
M5
Micro USB
13 14 15 16
Second FAN
USB
power
Analog Analog
Input 1 Input 2
12 11 4
+ - +
34
User's manual
Option
Ethernet
M6
+24V IN
1 2
Microprocessor +24Vdc
& Wi-Fi power input
HB relay alarm
RS485
General alarm
3 1 2 8 7
NC NO C
Profibus
GND
4
Retransmit
output
Fuse alarm
15 17 16
NC NO C
