Wiring instructions

The Thyristor unit could be susceptible to interferences lost by near equipments or by the power supply, for
this reason in accord to the fundamental practices rules is opportune take some precautions:
• The coil contactor, the relays and other inductive loads must be equipped with opportune RC filter.
• Use shielded bipolar cables for all the input and output signals.
• The signal cables must not be near and parallel to the power cables.
• Local regulations regarding electrical installation should be rigidly observed.
Use 75°C copper (CU) conductor only, wire ranges (AWG), wire terminal type (ZMVV), terminal tightening
torque in the table below.
Power cable torque (suggested)
Connector
Type
Type
120 Screw M6
150
180 Screw M8
210
Cable dimensions of the Command Terminals
Cable dimensions of the Earth (suggested)

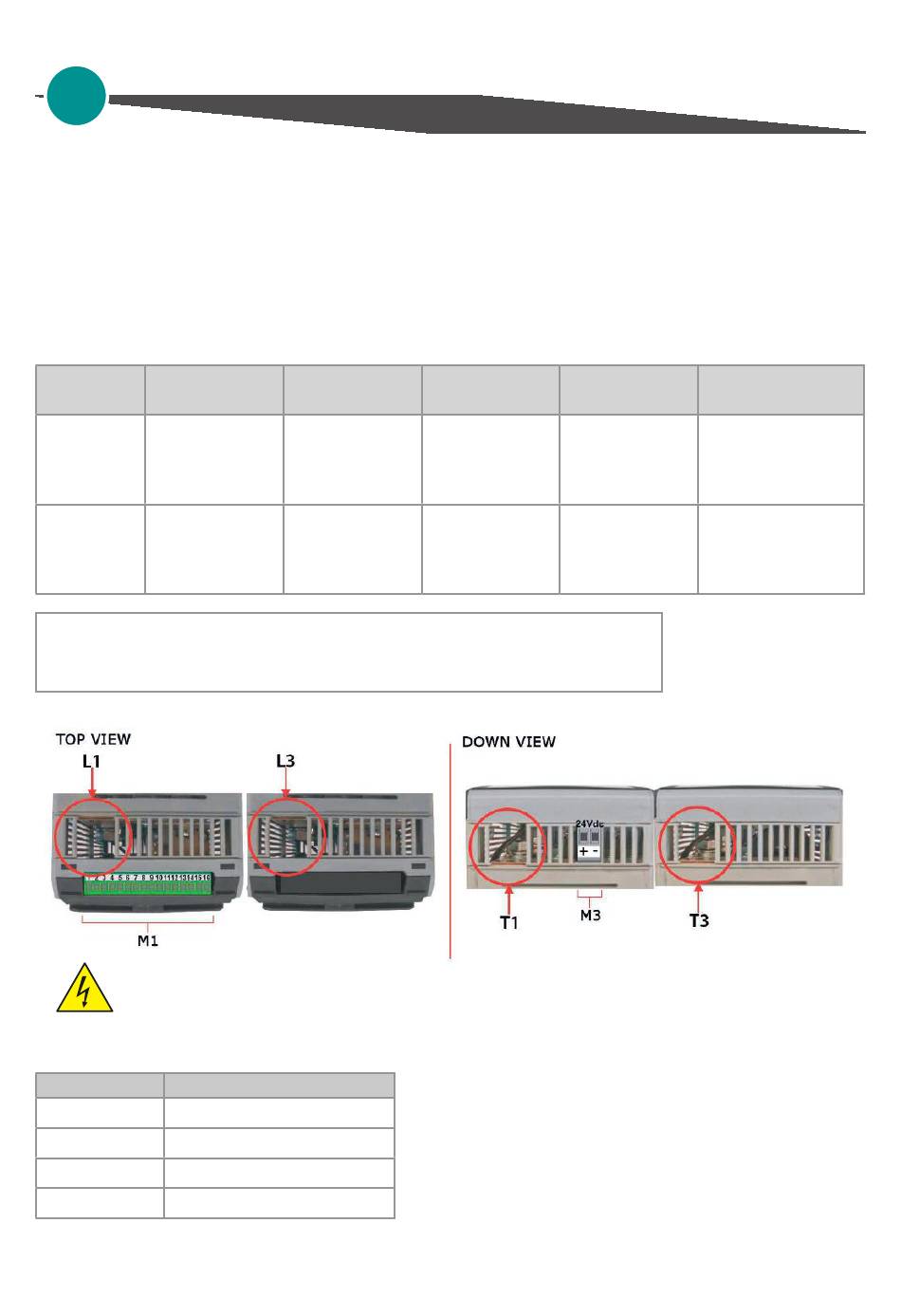

8.1 Terminal Positions

Warning: Before connecting or disconnecting the unit check that power and control cables
are isolated from voltage sources.

8.2 Power Terminals

Terminal Description
L1
Line Input Phase 1
T1
Load Output Phase 1
L3
Line Input Phase 2
T3
Load Output Phase 2
Torque Lb-in Wire Range
(N-m) mm² (AWG)
70.8 (8.0)
50(0)
141,6 (16.0) 70(00)
90(000)
0.5 mm² (AWG 18)
16 mm² (AWG 6) up to 120A
25 mm² (AWG 4) up to 210A
20
MAX Current
Terminals
35(2) 150
250
User's manual
Wire Terminals UL
Listed (ZMVV)
Fork/Spade
Terminal
Copper Tube Crimp.
Lug
Fork/Spade
Terminal
Copper Tube Crimp.
Lug
